LRCDatasheet (PDF)

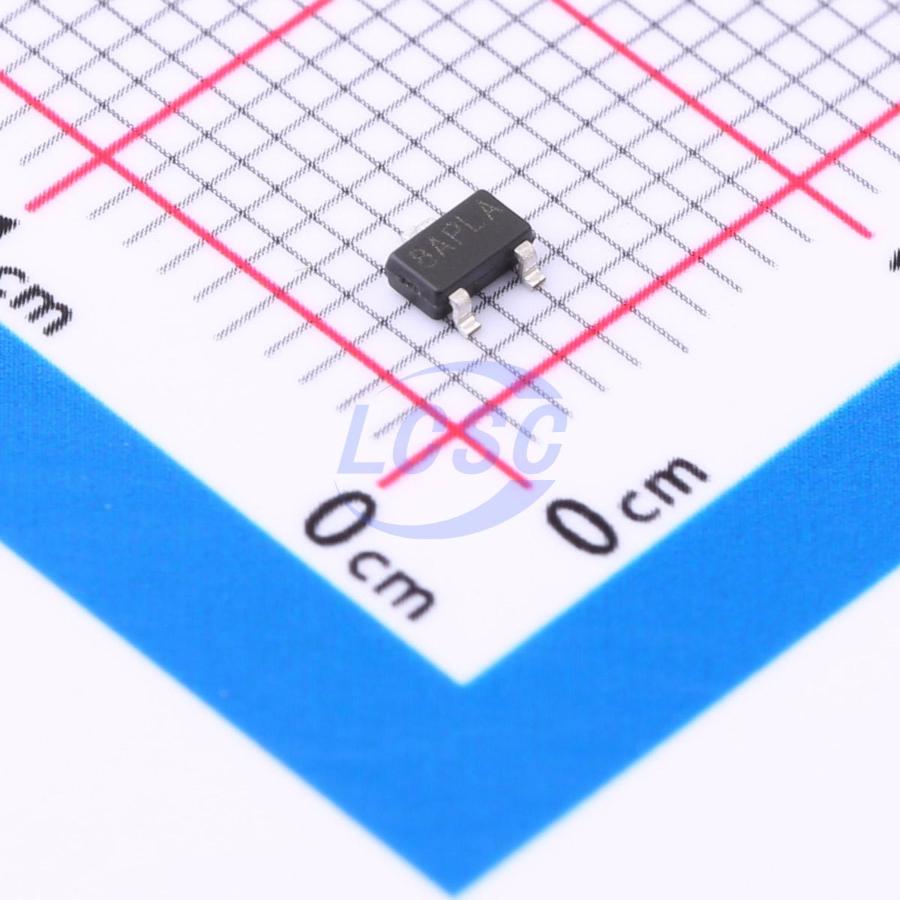

LR6375A50M
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23-3
SOT-23-3RoHSActive
36V low current consumption 250mA CMOS voltage regulator
- Manufacturer
- LRC
- Manufacturer part #
- LR6375A50M
- Store part #
- C2912061
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,910 in stock
#C2912061
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.60 | ₹58.00 |
| 50+ | ₹9.18 | ₹459.00 |
| 150+ | ₹7.96 | ₹1,194.00 |
| 500+ | ₹7.06 | ₹3,530.00 |
| 3,000+ | ₹6.03 | ₹18,090.00 |
| 6,000+ | ₹5.66 | ₹33,960.00 |
5 × ₹11.60
₹58.00
excl. GST
₹68.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR6375A50M
₹58.00 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Operating Voltage
- 36V
- Output Current
- 250mA
- Output Type
- Fixed
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
The LR6375 series are a group of positive voltage regulators manufactured by CMOS technologies with low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small. The LR6375 series can deliver 250mA output current and allow an input voltage as high as 36V. The series are very suitable for the battery-powered equipments, such as RF applications and other systems requiring a quiet voltage source.
Applications
- Cordless Phones
- Radio control systems
- Laptop, Palmtops and PDAs
- Single-lens reflex DSC
- PC peripherals with memory
Key features
- Low Quiescent Current: 1.5μA
- Operating Voltage Range: 2.5V~36V
- Output Current: 250mA
- Low Dropout Voltage
- 400mV<100mA(V_OUT=3.3V)
- Output Voltage: 1.8~5.0V
- High Accuracy: ±2%/±1% (Typ.)
- High Power Supply Rejection Ratio: 70dB@1kHz
- Low Output Noise: 27xVOUT μVRMS(10Hz~100kHz)
- Excellent Line and Load Transient Response
- Built-in Current Limiter, Short-Circuit Protection
- Over-Temperature Protection
- Stable with Ceramic or Tantalum Capacitor
