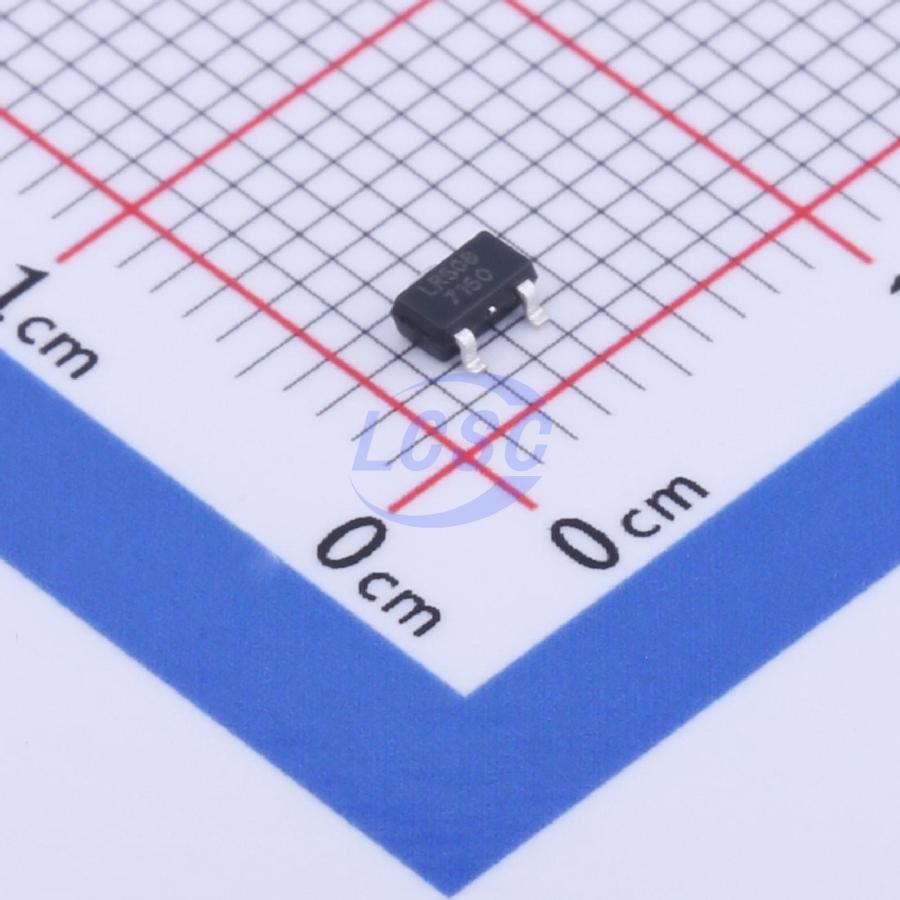

LR7150-T
Linear Voltage Regulator IC Positive Fixed 1 Output 50mA SOT-23-3
SOT-23-3ROHS CompliantActive
Low-power, high-voltage voltage regulator chip
- Manufacturer
- LR
- Manufacturer part #
- LR7150-T
- Store part #
- C914131
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,010 in stock
#C914131
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.90 | ₹59.00 |
| 100+ | ₹4.70 | ₹470.00 |
| 300+ | ₹4.10 | ₹1,230.00 |
| 3,000+ | ₹3.48 | ₹10,440.00 |
| 6,000+ | ₹3.12 | ₹18,720.00 |
| 9,000+ | ₹2.94 | ₹26,460.00 |
10 × ₹5.90
₹59.00
excl. GST
₹69.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR7150-T
₹59.00 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.8uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 50mA
- Features
- Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The LR71XX series is a low-power, high-voltage linear regulator implemented in CMOS technology, featuring low dropout voltage and low quiescent current. This series supports input voltages up to 30V and provides several fixed output voltages in the range of 2.7V to 5.0V. An integrated overcurrent protection circuit ensures safe operation and extended service life.
Applications
- Battery-powered devices
- Audio/video equipment
- Wireless control devices
- Portable computers
- Communication equipment
- Power supply systems for home appliances and toys
Key features
- Output voltage accuracy: ±2%
- High input voltage rating: 30V
- Output current: 50mA
- Quiescent current: 1.8μA typical
- Low temperature coefficient: 50ppm/℃ typical
- Built-in overcurrent protection circuit
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR7550-T#C486073LR · SOT-23 | LR | SOT-23 | 31,480 | ₹4.99 · 31,480 in stock | View |
 | LR8342A-T50(40V250mA)#C29781218LR · SOT-23-3L | LR | SOT-23-3L | 1,240 | ₹9.51 · 1,240 in stock | View |
 | LR8323A-T50(24V300mA)#C29781214LR · SOT-23-3L | LR | SOT-23-3L | 1,460 | ₹4.97 · 1,460 in stock | View |
 | LR8341A-T50#C2829466LR · SOT-23-3L | LR | SOT-23-3L | 9,940 | ₹7.98 · 9,940 in stock | View |
 | LR8321A-T50#C5129919LR · SOT-23-3L | LR | SOT-23-3L | 2,090 | ₹5.46 · 2,090 in stock | View |
