LRCDatasheet (PDF)

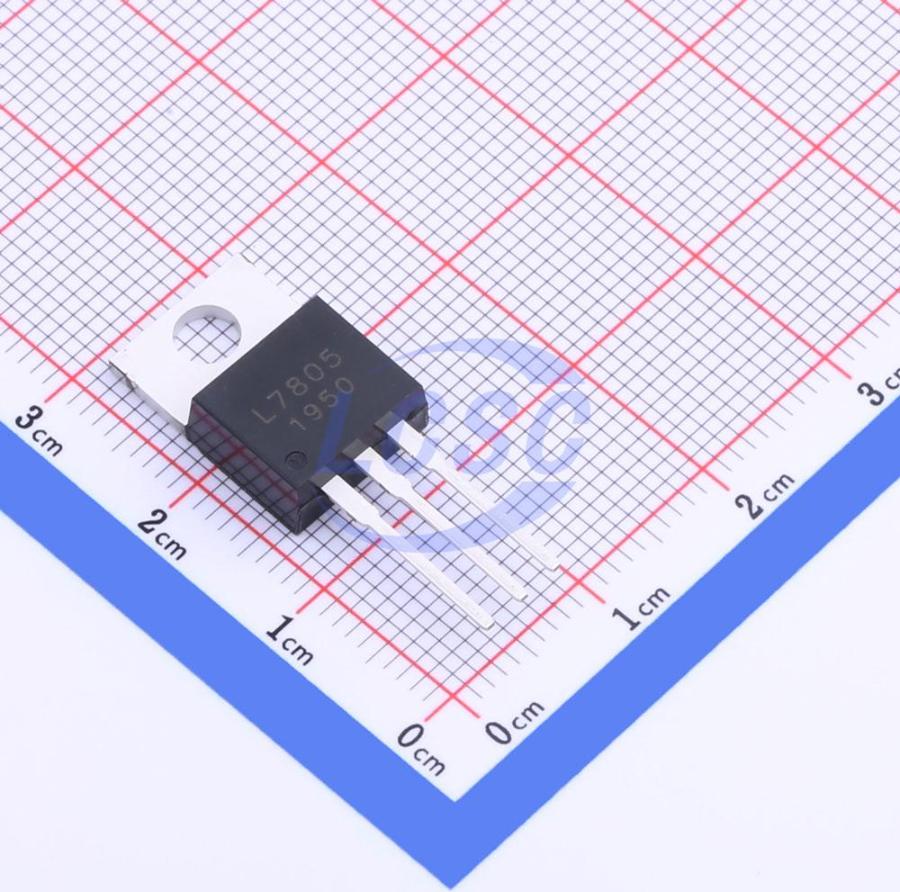

LR7805
5V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-220RoHSActive
3-Terminal 1A Positive Voltage Regulators
- Manufacturer
- LRC
- Manufacturer part #
- LR7805
- Store part #
- C2846986
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
600 in stock
#C2846986
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.31 | ₹151.55 |
| 50+ | ₹23.05 | ₹1,152.50 |
| 150+ | ₹20.22 | ₹3,033.00 |
| 500+ | ₹16.71 | ₹8,355.00 |
| 2,000+ | ₹15.14 | ₹30,280.00 |
| 5,000+ | ₹14.20 | ₹71,000.00 |
5 × ₹30.31
₹151.55
excl. GST
₹178.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
LR7805
₹151.55 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.03 g
Overview
The LRC LR78XX family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 1 A.
Key features
- Output current up to 1A
- Fixed output voltage of 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V and 24V available
- Thermal overload shutdown protection
- Short circuit current limiting
