LRC

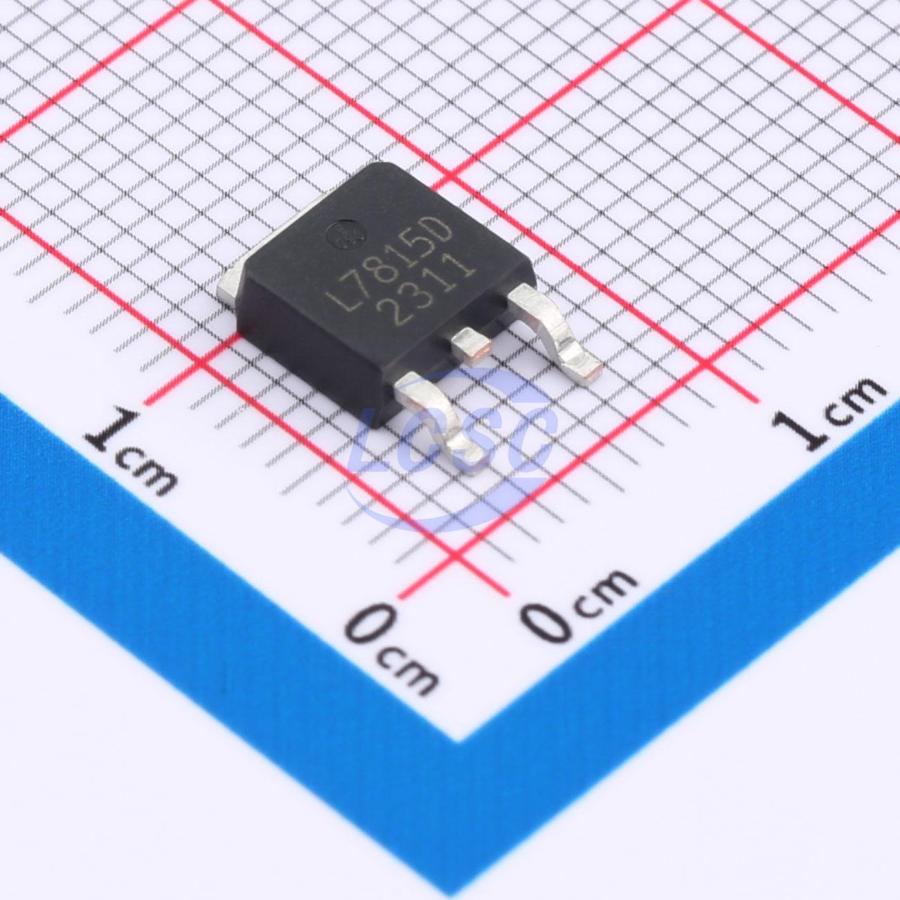

LR7815D

15V Positive Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

TO-252RoHSActive

3-Terminal 1A Positive Voltage Regulators

Manufacturer: LRC
Manufacturer part #: LR7815D
Store part #: C5447790
Package / case: TO-252
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,400 in stock

#C5447790

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹28.75	₹143.75
50+	₹22.91	₹1,145.50
150+	₹20.41	₹3,061.50
500+	₹17.29	₹8,645.00
2,500+	₹15.90	₹39,750.00
5,000+	₹15.07	₹75,350.00

Quantity (min 5, multiples of 5)

5 × ₹28.75

₹143.75

excl. GST

₹169.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LR7815D

₹143.75 for 5 + GST

Specifications

Output Voltage: 15V
Number of Outputs: 1
Operating Temperature: 0℃~+150℃@(Tj)
Supply Current (Iq): 8mA
Output Configuration: Positive
Operating Voltage: 35V
Output Current: 1A
Output Type: Fixed
Features: Thermal shutdown;Short Circuit Protection

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.567 g

Overview

The LRC LR78XX family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 1 A.

Key features

Output current up to 1A
Fixed output voltage of 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V and 24V available
Thermal overload shutdown protection
Short circuit current limiting
