LRC

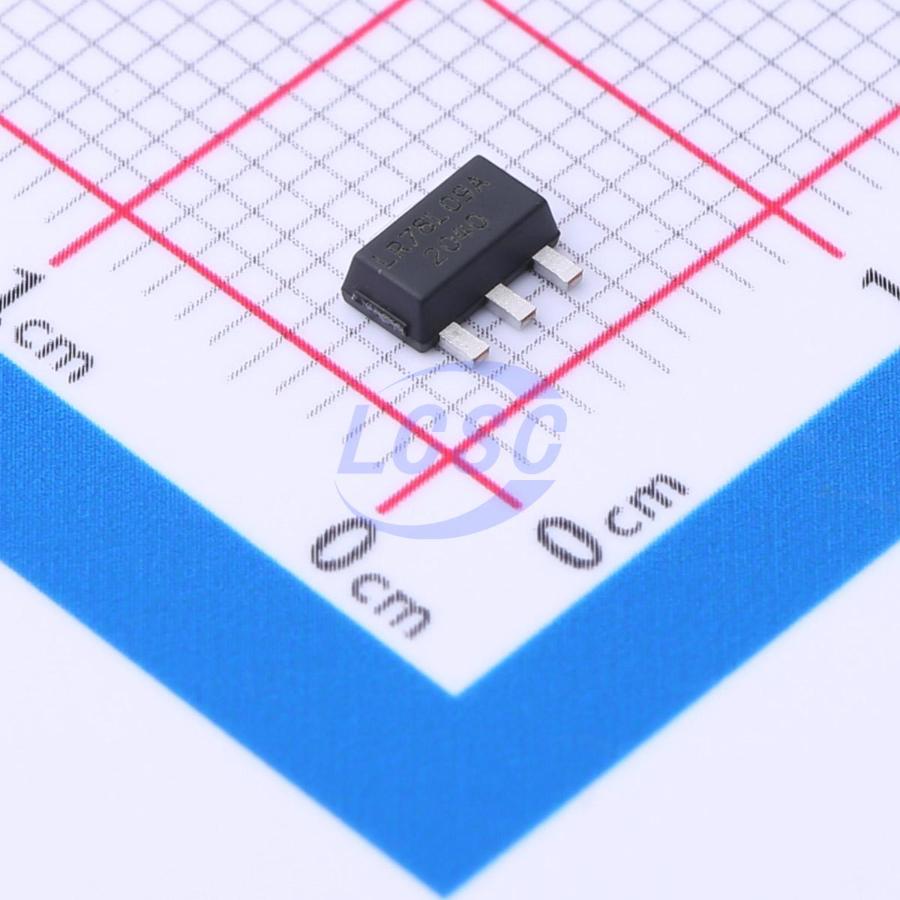

LR78L09A

9V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-89ROHS CompliantActive

3-Terminal 0.1A Positive Voltage Regulators

Manufacturer: LRC
Manufacturer part #: LR78L09A
Store part #: C2986735
Package / case: SOT-89
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,240 in stock

#C2986735

Stock & price checked 38 h ago

Quantity	Unit price	Pack price
10+	₹9.09	₹90.90
100+	₹7.34	₹734.00
300+	₹6.46	₹1,938.00
1,000+	₹5.66	₹5,660.00
5,000+	₹5.13	₹25,650.00
10,000+	₹4.87	₹48,700.00

Quantity (min 10, multiples of 10)

10 × ₹9.09

₹90.90

excl. GST

₹107.26 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

LR78L09A

₹90.90 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 9V
Number of Outputs: 1
Operating Temperature: -40℃~+150℃@(Tj)
Supply Current (Iq): 5.5mA
Output Configuration: Positive
Output Current: 100mA
Operating Voltage: 24V
Output Type: Fixed
Features: Thermal shutdown;Short Circuit Protection;Over Current Protection

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.2 g

Overview

The LRC LR78LXX series is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 100mA.

Key features

Output current up to 100mA
Fixed output voltage of 5V, 9V, 12V, 15V available
Thermal overload shutdown protection
Short circuit current limiting
We declare that material of product compliance with ROHS requirements.
