LRCDatasheet (PDF)

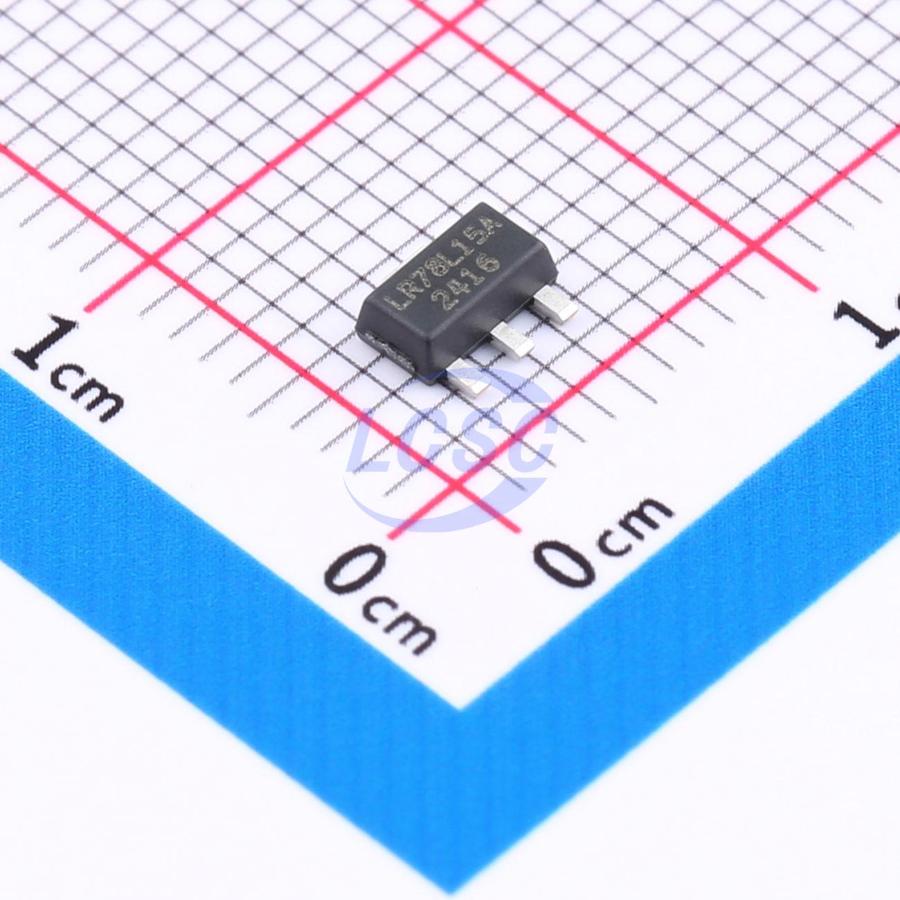

LR78L15A
15V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
Three-Terminal Positive Voltage Regulators
- Manufacturer
- LRC
- Manufacturer part #
- LR78L15A
- Store part #
- C2901888
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,340 in stock
#C2901888
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.26 | ₹112.60 |
| 100+ | ₹9.38 | ₹938.00 |
| 300+ | ₹8.44 | ₹2,532.00 |
| 1,000+ | ₹7.50 | ₹7,500.00 |
| 5,000+ | ₹6.93 | ₹34,650.00 |
| 10,000+ | ₹6.65 | ₹66,500.00 |
10 × ₹11.26
₹112.60
excl. GST
₹132.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
LR78L15A
₹112.60 for 10 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 30V
- Output Type
- Fixed
- Features
- Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.207 g
Overview
The LRC LR78LXX series is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 100mA.
Key features
- Output current up to 100mA
- Fixed output voltage of 5V, 9V, 12V, 15V available
- Thermal overload shutdown protection
- Short circuit current limiting
- We declare that material of product compliance with ROHS requirements.
