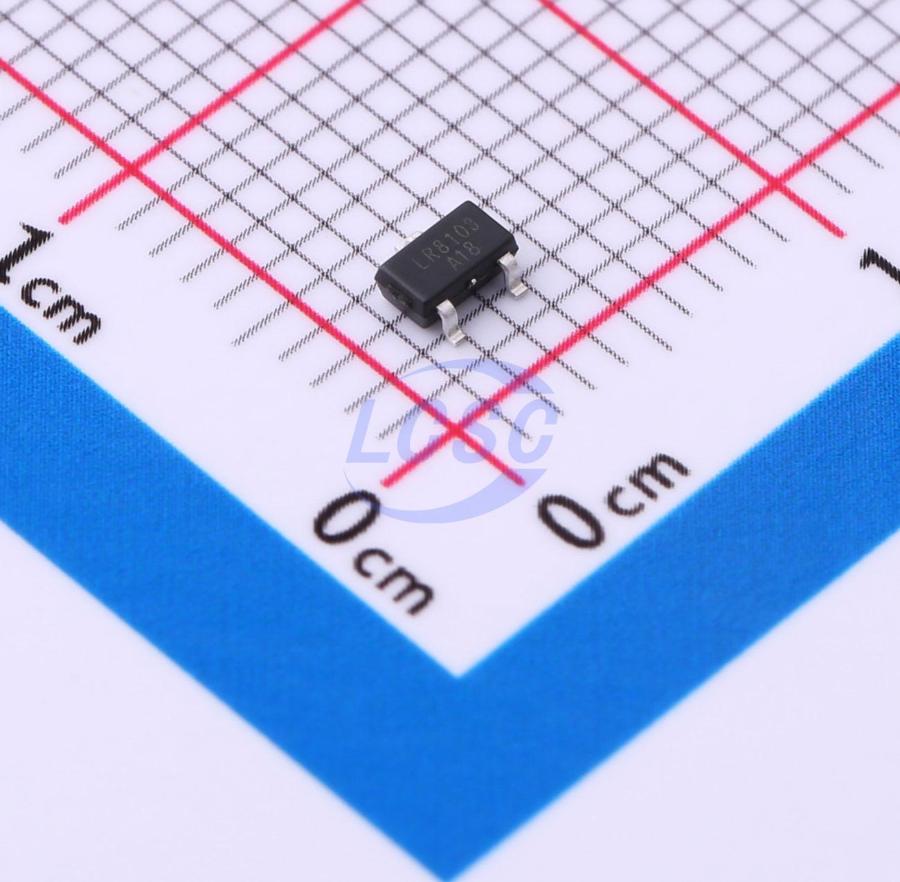

LR8103A-T18

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3L

SOT-23-3LROHS CompliantActive

Ultra-low power consumption linear voltage regulator

Manufacturer: LR
Manufacturer part #: LR8103A-T18
Store part #: C5337229
Package / case: SOT-23-3L
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,200 in stock

#C5337229

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹5.98	₹59.80
100+	₹4.76	₹476.00
300+	₹4.15	₹1,245.00
3,000+	₹3.53	₹10,590.00
6,000+	₹3.16	₹18,960.00
9,000+	₹2.99	₹26,910.00

Quantity (min 10, multiples of 10)

10 × ₹5.98

₹59.80

excl. GST

₹70.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LR8103A-T18

₹59.80 for 10 + GST

Specifications

Output Voltage: 1.8V
Number of Outputs: 1
Operating Temperature: -10℃~+85℃@(Ta)
Supply Current (Iq): 800nA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 6.5V
Features: Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.046 g

Overview

Low input power consumption Low dropout voltage Input voltage rating: 6.5V Low quiescent current: 0.8uA High output accuracy: ±1% Integrated short-circuit protection The LR8103 series is a low-power LDO linear regulator implemented in CMOS process, featuring low dropout voltage and low quiescent current. This series supports a maximum input voltage of 6.5V and provides several fixed output voltages ranging from 1.2V to 5.0V, capable of delivering 300mA output current. The built-in short-circuit protection circuit ensures safe operation and extended service life.
