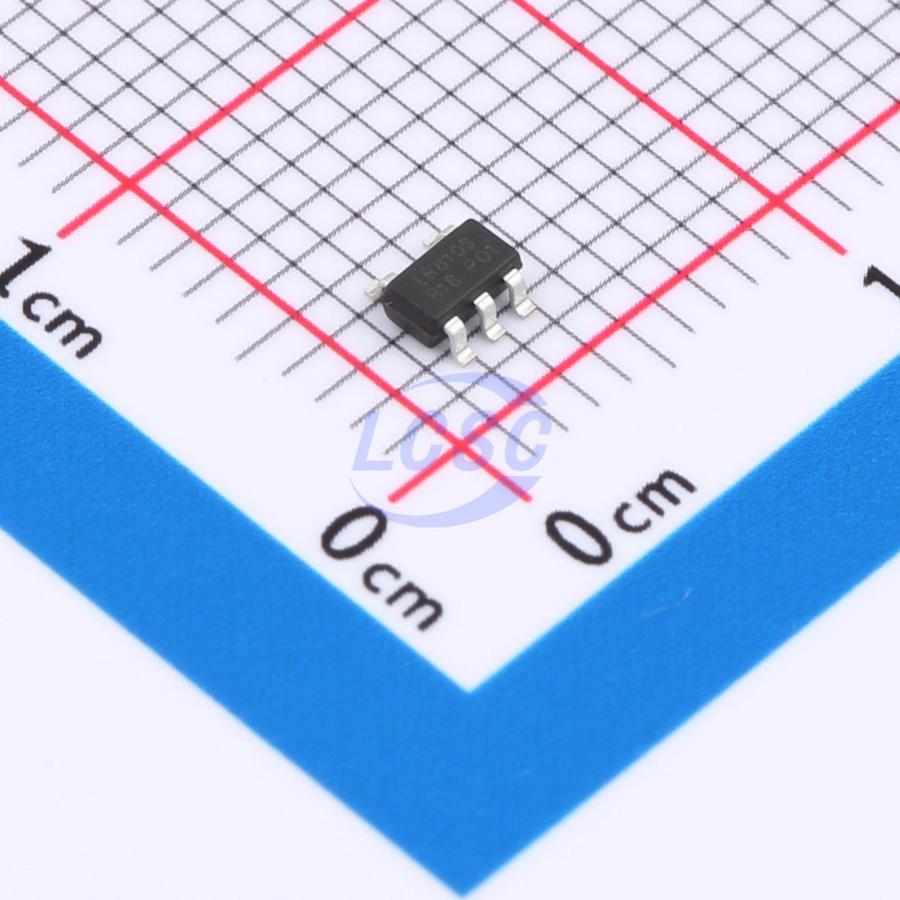

LR8103B-T18(0.8uA)
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5L
SOT-23-5LROHS CompliantActive
Ultra-low power consumption linear voltage regulator
- Manufacturer
- LR
- Manufacturer part #
- LR8103B-T18(0.8uA)
- Store part #
- C29781224
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,270 in stock
#C29781224
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.93 | ₹59.30 |
| 100+ | ₹4.68 | ₹468.00 |
| 300+ | ₹4.06 | ₹1,218.00 |
| 3,000+ | ₹3.60 | ₹10,800.00 |
| 6,000+ | ₹3.23 | ₹19,380.00 |
| 9,000+ | ₹3.04 | ₹27,360.00 |
10 × ₹5.93
₹59.30
excl. GST
₹69.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR8103B-T18(0.8uA)
₹59.30 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃@(Ta)
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
The LR8103 series is a low-power linear regulator implemented in CMOS process, featuring low dropout voltage and low quiescent current. This series supports a maximum input voltage of 6.5V and provides several fixed output voltages in the range of 1.2V to 5.0V, with an output current capability of 300mA. The IC integrates built-in short-circuit protection to ensure safe operation and extended service life.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR8103B-T18#C5179955LR · SOT-23-5L | LR | SOT-23-5L | 1,020 | ₹5.31 · 1,020 in stock | View |
 | LR8323B-T18#C5220843LR · SOT-23-5L | LR | SOT-23-5L | 3,375 | ₹10.80 · 3,375 in stock | View |
