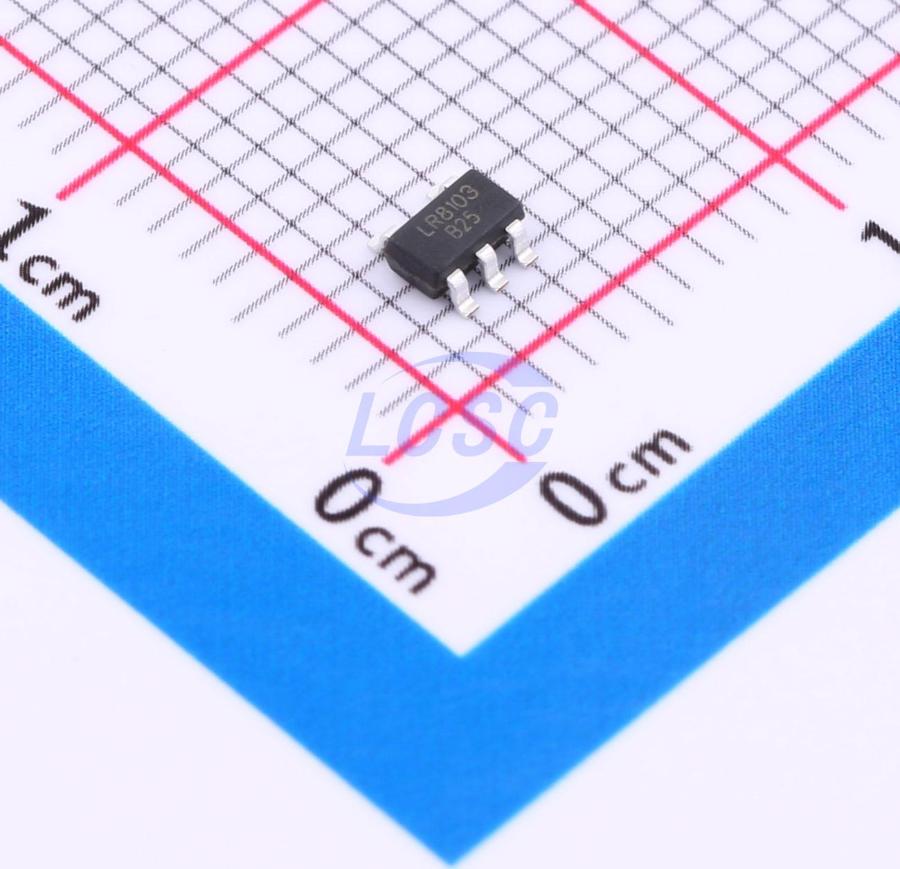

LR8103B-T25
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5L
SOT-23-5LROHS CompliantActive
Ultra-low power consumption linear voltage regulator
- Manufacturer
- LR
- Manufacturer part #
- LR8103B-T25
- Store part #
- C5260326
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35,920 in stock
#C5260326
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.35 | ₹63.50 |
| 100+ | ₹5.00 | ₹500.00 |
| 300+ | ₹4.33 | ₹1,299.00 |
| 3,000+ | ₹3.82 | ₹11,460.00 |
| 6,000+ | ₹3.43 | ₹20,580.00 |
| 9,000+ | ₹3.21 | ₹28,890.00 |
10 × ₹6.35
₹63.50
excl. GST
₹74.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR8103B-T25
₹63.50 for 10 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -10℃~+85℃@(Ta)
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6.5V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.049 g
Overview
Low input power consumption Low dropout voltage Input voltage rating: 6.5V Low quiescent current: 0.8uA High output accuracy: ±1% Integrated short-circuit protection The LR8103 series is a low-power LDO linear regulator implemented in CMOS process, featuring low dropout voltage and low quiescent current. This series supports a maximum input voltage of 6.5V and provides several fixed output voltages in the range of 1.2V to 5.0V, with an output current capability of 300mA. The built-in short-circuit protection circuit ensures safe operation and extended service life.
Applications
- Battery-powered devices
- Communication equipment
- Consumer electronics
- Audio/video equipment
- Home appliance power supply systems
- Portable computer power supply systems
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR8323B-T25#C5336482LR · SOT-23-5L | LR | SOT-23-5L | 1,270 | ₹10.70 · 1,270 in stock | View |
 | LR8106B-T25#C54333723LR · SOT-23-5L | LR | SOT-23-5L | 2,940 | ₹7.98 · 2,940 in stock | View |
 | LR6207-T25#C459782LR · SOT-23-5 | LR | SOT-23-5 | On request | Price on request | Quote |
