LRDatasheet (PDF)

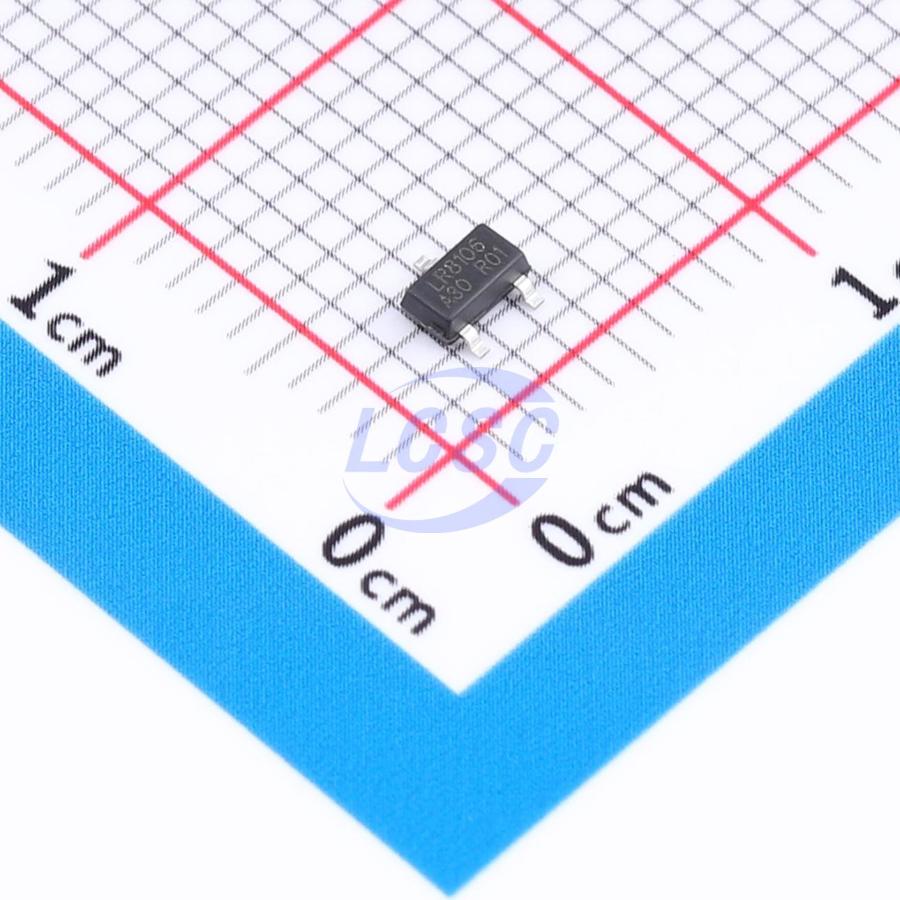

LR8106A-T30
3V Positive Fixed SOT-23-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-3LROHS CompliantActive
- Manufacturer
- LR
- Manufacturer part #
- LR8106A-T30
- Store part #
- C54333720
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C54333720
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.99 | ₹69.90 |
| 100+ | ₹5.57 | ₹557.00 |
| 300+ | ₹4.86 | ₹1,458.00 |
| 3,000+ | ₹4.33 | ₹12,990.00 |
| 6,000+ | ₹3.89 | ₹23,340.00 |
| 9,000+ | ₹3.69 | ₹33,210.00 |
10 × ₹6.99
₹69.90
excl. GST
₹82.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR8106A-T30
₹69.90 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 6.5V
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
LR8106 is a high PSRR, low-noise, fast-response LDO fabricated in CMOS process, featuring current limiting protection, short-circuit protection, and CE enable. Only a 1μF bypass capacitor is required, saving board area. Its PSRR extends to 100kHz with excellent ripple rejection, making it well-suited for applications demanding high noise immunity such as drones, RF circuits, and audio circuits.
Applications
- Drone circuits
- Motor circuits
- RF circuits
- Audio equipment
- Bluetooth products
- Low-noise reference sources
Key features
- Maximum output current: 500mA (Vin = 5V, Vout = 3.3V)
- Low dropout: 100mV @ IOUT = 100mA
- Operating voltage range: 2.5V ~ 6.5V
- Output voltage range: 1.2V ~ 5V
- Output accuracy: ±2%
- Quiescent current: 50μA (typical)
- Shutdown current: 0.1μA (typical)
- Ripple rejection ratio: 63dB @ 1kHz; 53dB @ 10kHz; 43dB @ 100kHz (3.3V output, typical)
- Line regulation: better than 0.05% (typical)
