LRDatasheet (PDF)

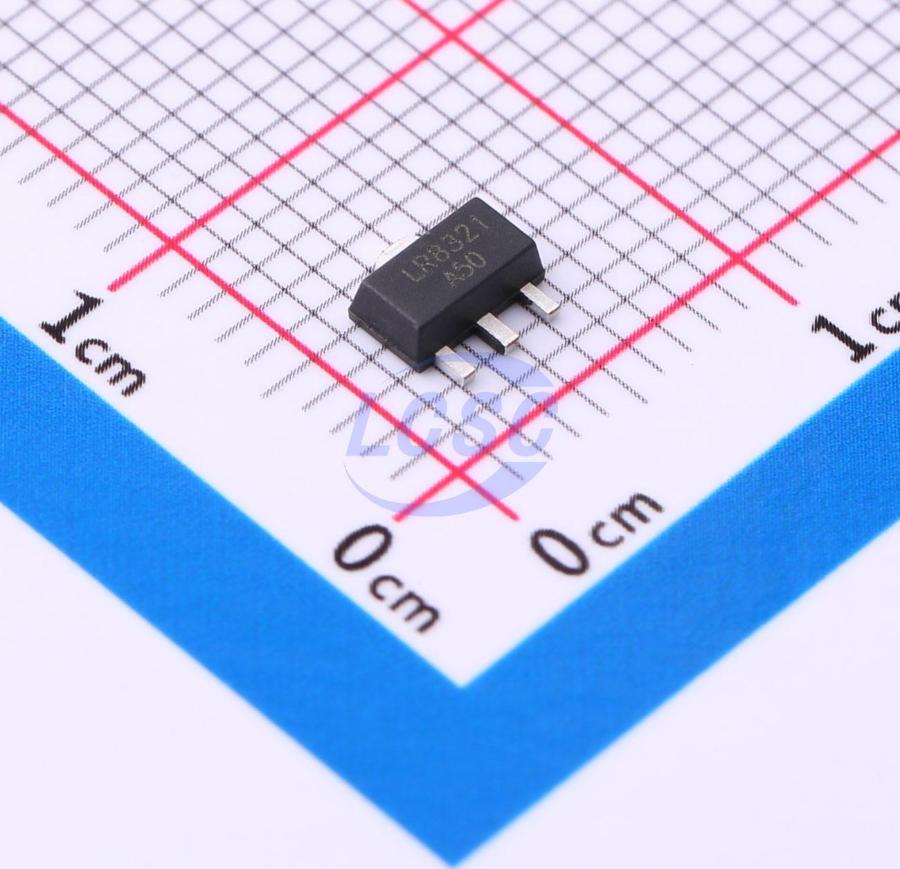

LR8321A-M50
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89-3L
SOT-89-3LROHS CompliantActive
Low-power linear voltage regulator
- Manufacturer
- LR
- Manufacturer part #
- LR8321A-M50
- Store part #
- C5129922
- Package / case
- SOT-89-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,220 in stock
#C5129922
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.47 | ₹64.70 |
| 100+ | ₹5.15 | ₹515.00 |
| 300+ | ₹4.47 | ₹1,341.00 |
| 1,000+ | ₹3.98 | ₹3,980.00 |
| 5,000+ | ₹3.59 | ₹17,950.00 |
| 10,000+ | ₹3.37 | ₹33,700.00 |
10 × ₹6.47
₹64.70
excl. GST
₹76.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LR8321A-M50
₹64.70 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -10℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 24V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.16 g
Overview
The LR8321A series is a high-precision, low-dropout linear regulator based on CMOS technology. It features low quiescent current consumption and high voltage tolerance. The series supports input voltages up to 24 V, with fixed output voltages ranging from 2.5 V to 5 V. The device integrates overcurrent protection to ensure safe operation during use. It can deliver 100 mA of output current under minimal input-output voltage differential while maintaining excellent regulation. The low dropout voltage and low quiescent bias current make these devices particularly suitable for computers, consumer products, and industrial equipment.
Applications
- Smart lighting devices
- MCU control system power supply
- Dedicated switching power supply auxiliary power
- IoT sensor device power supply
Key features
- Low input power consumption
- Low input voltage differential
- Input voltage withstand: 24 V
- Low quiescent current: 1.5 μA
- High output accuracy: ±2%
- Integrated short-circuit protection and overcurrent protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LR7550-M#C486080LR · SOT-89-3 | LR | SOT-89-3 | 910 | ₹6.54 · 910 in stock | View |
 | LR8341A-M50#C2895856LR · SOT-89-3 | LR | SOT-89-3 | 17,190 | ₹8.94 · 17,190 in stock | View |
 | LR8323A-M50#C48533309LR · SOT-89-3L | LR | SOT-89-3L | 795 | ₹11.35 · 795 in stock | View |
 | LR78L05-M#C6398166LR · SOT-89-3L | LR | SOT-89-3L | 590 | ₹8.23 · 590 in stock | View |
