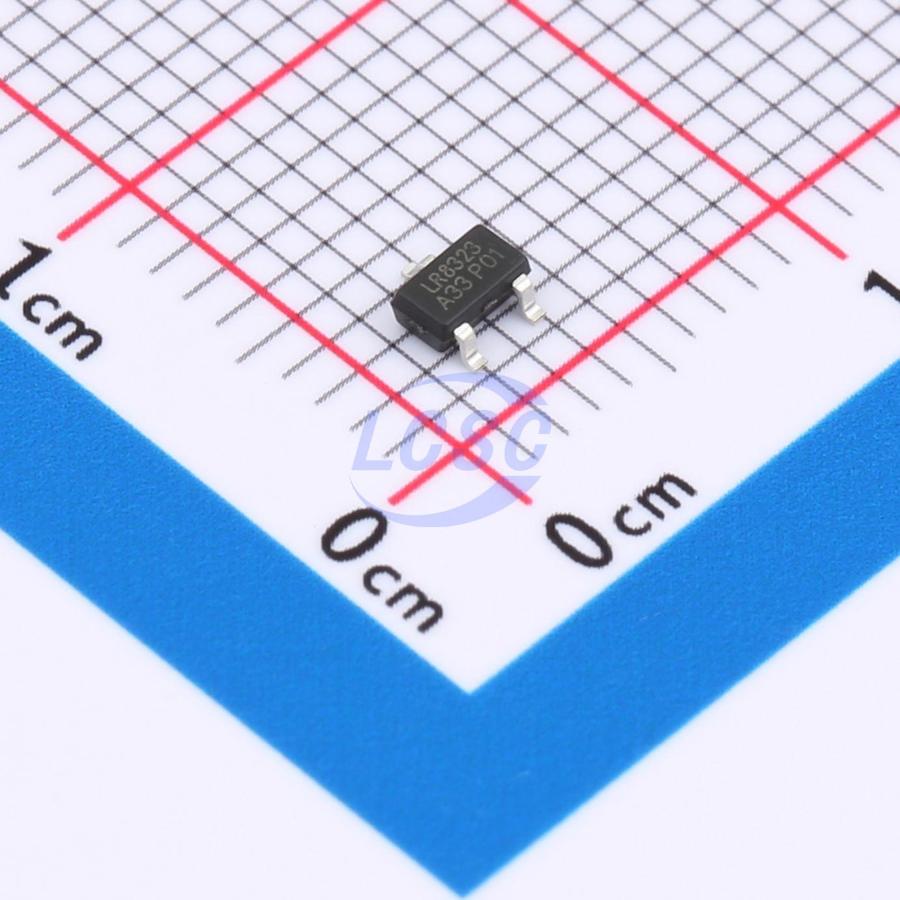

LR8323A-T33(24V300mA)
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3L
SOT-23-3LROHS CompliantActive
Low-power linear voltage regulator
- Manufacturer
- LR
- Manufacturer part #
- LR8323A-T33(24V300mA)
- Store part #
- C29781215
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,610 in stock
#C29781215
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.68 | ₹96.80 |
| 100+ | ₹7.66 | ₹766.00 |
| 300+ | ₹6.64 | ₹1,992.00 |
| 3,000+ | ₹5.89 | ₹17,670.00 |
| 6,000+ | ₹5.28 | ₹31,680.00 |
| 9,000+ | ₹4.96 | ₹44,640.00 |
10 × ₹9.68
₹96.80
excl. GST
₹114.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR8323A-T33(24V300mA)
₹96.80 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 24V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
This series of ICs are three-terminal low-dropout linear regulators.
Applications
- Smart lighting devices
- MCU control system power supply
- Dedicated switching power supply auxiliary power
- IoT sensor device power supply
Key features
- Low input power consumption
- Low input-output voltage differential
- Input voltage rating: 24V
- Low quiescent current: 2.5μA
- High output accuracy: ±1%
- Integrated short-circuit protection and overcurrent protection
