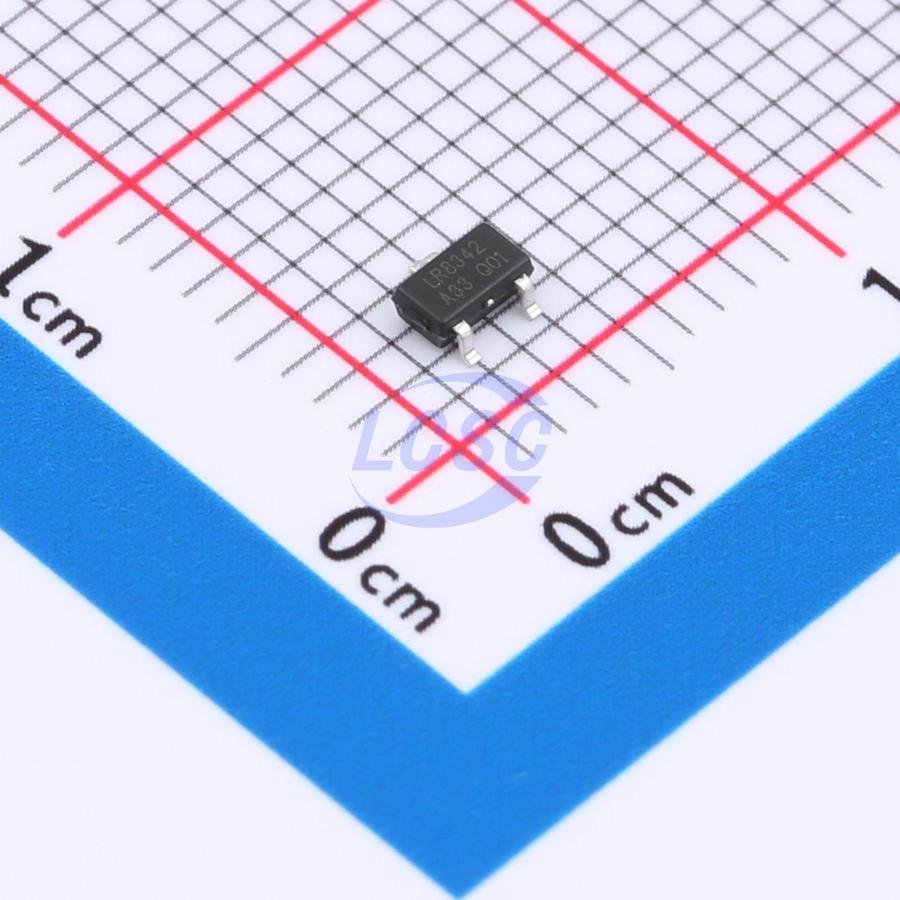

LR8342A-T33(40V250mA)
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23-3L
SOT-23-3LROHS CompliantActive
Low-power linear voltage regulator
- Manufacturer
- LR
- Manufacturer part #
- LR8342A-T33(40V250mA)
- Store part #
- C29781219
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,300 in stock
#C29781219
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.16 | ₹101.60 |
| 100+ | ₹8.10 | ₹810.00 |
| 300+ | ₹7.06 | ₹2,118.00 |
| 3,000+ | ₹6.28 | ₹18,840.00 |
| 6,000+ | ₹5.66 | ₹33,960.00 |
| 9,000+ | ₹5.36 | ₹48,240.00 |
10 × ₹10.16
₹101.60
excl. GST
₹119.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LR8342A-T33(40V250mA)
₹101.60 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 40V
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
The LR8342A series ultra-low quiescent current regulators feature low dropout voltage and low current consumption in standby mode. With a quiescent current of less than 1.5μA at no load, they are ideal for MCU systems, particularly in applications such as electronic meters, fire alarms, smoke detectors, and other battery-powered devices. The LR8342A retains all standard LDO functions, including a low-dropout PMOS pass element, short-circuit protection, and thermal shutdown.
Applications
- Smart lighting devices
- MCU control system power supply
- Dedicated switching power supply auxiliary power
- IoT sensor device power supply
Key features
- Low input power consumption
- Low input dropout voltage
- High input voltage rating: 40V
- Low quiescent current: 1.5μA
- High output accuracy: ±2%
- Integrated short-circuit protection
