Tokmas

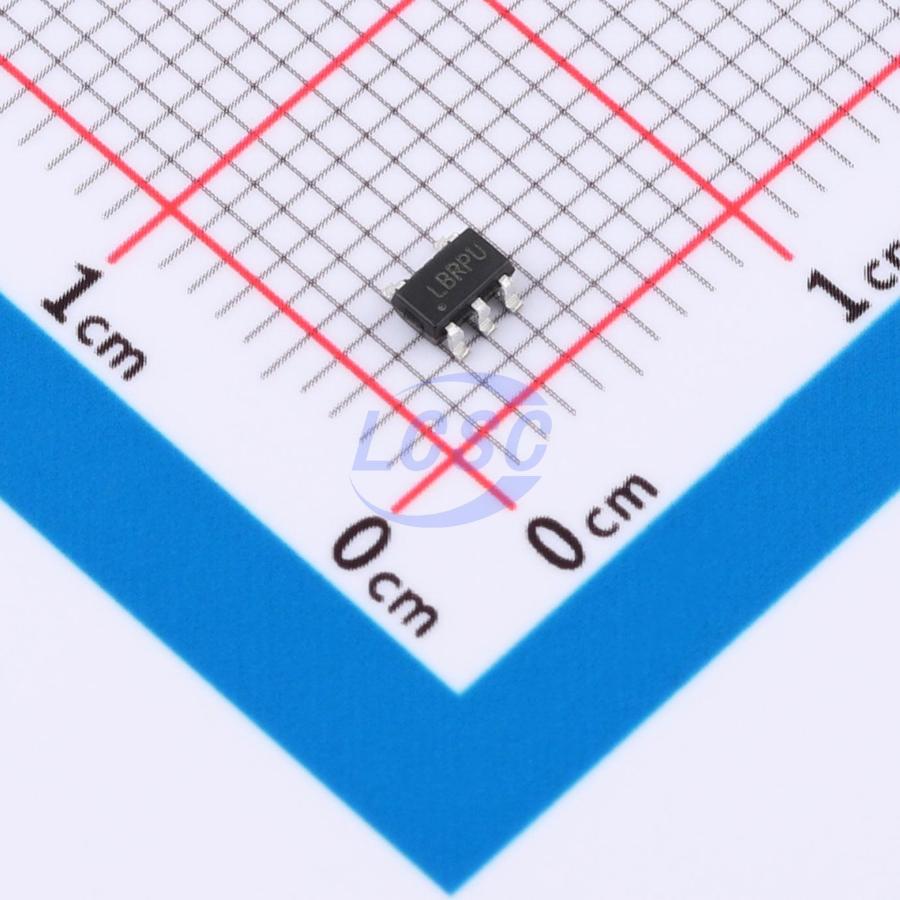

LT1761ES5-5(TOKMAS)

5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

IC REG LINEAR 5V 300mA SOT-23-5

Manufacturer: Tokmas
Manufacturer part #: LT1761ES5-5(TOKMAS)
Store part #: C50338871
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,423 in stock

#C50338871

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹83.06	₹83.06
10+	₹73.81	₹738.10
30+	₹69.07	₹2,072.10
100+	₹64.56	₹6,456.00
500+	₹61.76	₹30,880.00
1,000+	₹60.25	₹60,250.00

Quantity (min 1)

1 × ₹83.06

₹83.06

excl. GST

₹98.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LT1761ES5-5(TOKMAS)

₹83.06 for 1 + GST

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 98uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 20V
Output Type: Fixed
Features: Enable control;Input under-voltage protection;Over Current Protection;Short Circuit Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.043 g

Overview

The LT1761 series are 300 mA, high PSRR, ultralow noise, low dropout linear regulators with a 20 V wide input voltage range. The series supports adjustable output voltage from 1.22 V to 18 V via an external resistor divider, as well as fixed output voltages from 1.5 V to 5 V. The LT1761 series operates stably with ceramic output capacitors ranging from 2.2 μF to 100 μF. The series features high PSRR of 79 dB at 1 kHz and ultralow noise of 5.68 μVrms. These characteristics make the LT1761 series well suited for noise-sensitive applications such as high-performance analog devices or high-definition imaging equipment, suppressing large ripple and noise generated by upstream power supplies. In addition, output short-circuit protection and thermal protection enhance system reliability across a wide range of operating conditions.

Applications

Low-noise power supplies
High-definition imaging systems
Infrared imaging equipment
Medical devices

Key features

Input voltage range: 2.5V to 20V
Output voltage range: Adjustable: 1.22V to 18V; Fixed: 1.5V to 5V, ±2% accuracy
Output accuracy maintained across line regulation, load regulation, and operating temperature range
Maximum output current 300 mA
Low dropout voltage: 550 mV maximum at 300 mA
High PSRR: 79 dB at 1 kHz, 56 dB at 100 kHz
5.68 μVrms output voltage noise
Excellent transient response
Stable operation with 2.2 μF to 100 μF ceramic output capacitors
Integrated protection features: overcurrent protection, output short-circuit protection, overtemperature protection
Junction temperature range: -40℃ to +125℃
Package option: SOT23-5
