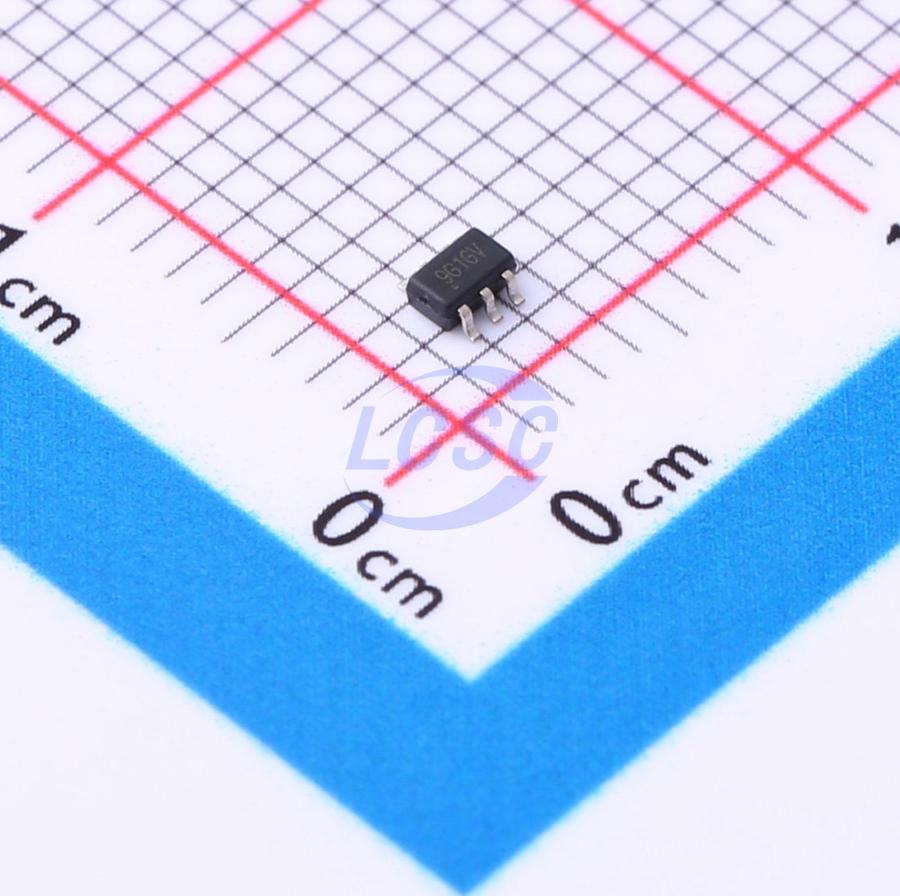

LT199G1XC6/R6
50V/V -300mV~26V 80kHz 1 SC-70-6L Power Supply Controllers, Monitors RoHS
Bi-directional, Zero-Drift Current Sense Amplifiers
- Manufacturer
- Linearin
- Manufacturer part #
- LT199G1XC6/R6
- Store part #
- C2888104
- Package / case
- SC-70-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,690 in stock
#C2888104
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹55.06 | ₹275.30 |
| 50+ | ₹44.04 | ₹2,202.00 |
| 150+ | ₹39.52 | ₹5,928.00 |
| 500+ | ₹33.68 | ₹16,840.00 |
| 3,000+ | ₹29.79 | ₹89,370.00 |
| 6,000+ | ₹28.07 | ₹1,68,420.00 |
5 × ₹55.06
₹275.30
excl. GST
₹324.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LT199G1XC6/R6
₹275.30 for 5 + GST
Specifications
- Function
- Bidirectional detection;Zero drift / auto-zero;High-side detection
- Gain
- 50V/V
- Vcm - Common Mode Voltage
- -300mV~26V
- Bandwidth
- 80kHz
- Quiescent Current
- 100uA
- Number of Channels
- 1
- Differential Voltage
- ±26V
- Operating Temperature
- -40℃~+105℃
- Operating Voltage
- 2.5V~18V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.016 g
Overview
The LT199 series of bidirectional zero-drift current sense amplifier can sense drops across shunts at common-mode voltages from -0.3V to 26V, independent of the supply voltage. Unidirectional operation allows the LT199 series to measure currents through a resistive shunt in one direction, while bidirectional operation allows the device to measure currents through a resistive shunt in two directions. The low offset of the zerodrift architecture enables current sensing with maximum drops across the shunt as low as 10mV full-scale. The LT199 series operates from a single +2.5V to +18V power supply, drawing a maximum of 100μA of supply current. The device is specified from -40°C to +105°C, and offered in SC70-6L and TQFN-10L packages.
Applications
- Power Management
- Battery Chargers
- Electrical Cigarette
- Smart Phones and Tablets
- Notebook Computers
- Telecom Equipments
- Welding Equipments
Key features
- Wide common-mode range: -0.3V to 26V
- Maximum 180μV Offset voltage (LT199G2/G3) Enable Shunt Drops of 10mV Full-scale
- Accuracy Maximum ± 0.5% Gain Error Maximum 0.5μV/°C Offset Drift Maximum 10ppm/°C Gain Drift
- Choice of Gains: LT199G1: 50V/V LT199G2: 100V/V LT199G3: 200V/V
- Quiescent Current: Maximum 100μA
- Package: SC70-6L, TQFN-10L
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LT199G1AXC6/R6#C5124526Linearin · SC-70-6L | Linearin | SC-70-6L | 380 | ₹25.14 · 380 in stock | View |
