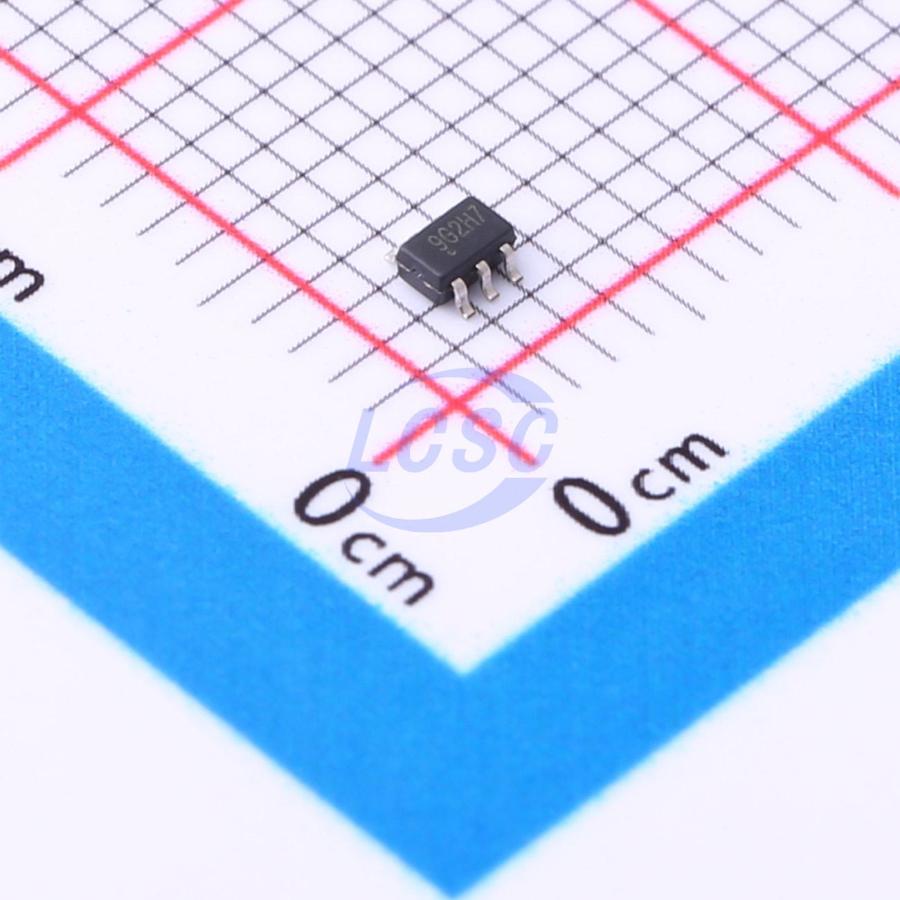

Linearin

LT199G2XC6/R6

100V/V -300mV~26V 30kHz 1 SC-70-6L Power Supply Controllers, Monitors RoHS

SC-70-6LROHS CompliantActive

Bi-directional, Zero-Drift Current Sense Amplifiers

Manufacturer: Linearin
Manufacturer part #: LT199G2XC6/R6
Store part #: C2888105
Package / case: SC-70-6L
Category: Power Supply Controllers, Monitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,886 in stock

#C2888105

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹39.47	₹39.47
500+	₹37.94	₹18,970.00

Quantity (min 1)

1 × ₹39.47

₹39.47

excl. GST

₹46.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LT199G2XC6/R6

₹39.47 for 1 + GST

Specifications

Function: Bidirectional detection;Zero drift / auto-zero;High-side detection
Gain: 100V/V
Vcm - Common Mode Voltage: -300mV~26V
Bandwidth: 30kHz
Quiescent Current: 100uA
Number of Channels: 1
Differential Voltage: ±26V
Operating Temperature: -40℃~+105℃
Operating Voltage: 2.5V~18V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.04 g

Overview

The LT199 series of bidirectional zero-drift current sense amplifier can sense drops across shunts at common-mode voltages from -0.3V to 26V, independent of the supply voltage. Unidirectional operation allows the LT199 series to measure currents through a resistive shunt in one direction, while bidirectional operation allows the device to measure currents through a resistive shunt in two directions. The low offset of the zerodrift architecture enables current sensing with maximum drops across the shunt as low as 10mV full-scale. The LT199 series operates from a single +2.5V to +18V power supply, drawing a maximum of 100μA of supply current. The device is specified from -40°C to +105°C, and offered in SC70-6L and TQFN-10L packages.

Applications

Power Management
Battery Chargers
Electrical Cigarette
Smart Phones and Tablets
Notebook Computers
Telecom Equipments
Welding Equipments

Key features

Wide common-mode range: -0.3V to 26V
Maximum 180μV Offset voltage (LT199G2/G3) Enable Shunt Drops of 10mV Full-scale
Accuracy Maximum ± 0.5% Gain Error Maximum 0.5μV/°C Offset Drift Maximum 10ppm/℃ Gain Drift
Choice of Gains: LT199G1: 50V/V LT199G2: 100V/V LT199G3: 200V/V
Quiescent Current: Maximum 100μA
Package: SC70-6L, TQFN-10L
