Tokmas

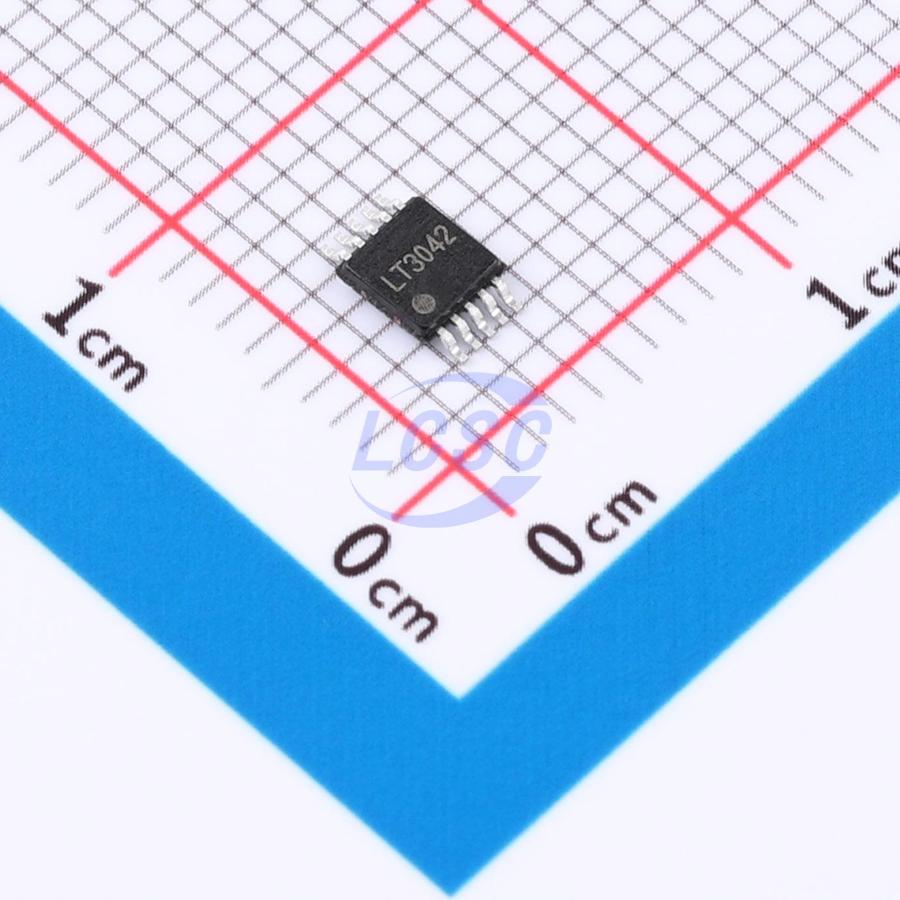

LT3042EMSE(TOKMAS)

500mV~16V Positive Adjustable MSOP-10 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

MSOP-10RoHSActive

IC REG LINEAR 500mV~16V 200mA MSOP-10

Manufacturer: Tokmas
Manufacturer part #: LT3042EMSE(TOKMAS)
Store part #: C49383092
Package / case: MSOP-10
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,274 in stock

#C49383092

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹178.71	₹178.71
10+	₹163.58	₹1,635.80
30+	₹154.29	₹4,628.70
100+	₹144.56	₹14,456.00
500+	₹140.25	₹70,125.00
1,000+	₹138.52	₹1,38,520.00

Quantity (min 1)

1 × ₹178.71

₹178.71

excl. GST

₹210.88 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LT3042EMSE(TOKMAS)

₹178.71 for 1 + GST

Specifications

Output Voltage: 500mV~16V
Number of Outputs: 1
Output Configuration: Positive
Output Current: 200mA
Operating Voltage: 20V
Output Type: Adjustable
Features: Enable control;Adjustable current limiting;Operating status indication;Reverse-polarity current protection;Thermal shutdown;Short Circuit Protection;Input under-voltage protection

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

LT3042 features a simple peripheral circuit that minimizes overall component cost, while incorporating all the protection functions expected of a high-performance regulator, including short-circuit protection, safe operating area protection, reverse current protection, and thermal shutdown protection.

Applications

RF power supplies
Ultra-low noise instrumentation
High-speed/high-precision data converters
Medical applications
High-precision power supplies

Key features

Ultra-low RMS noise: 1.6μVRMS (VIN=4V, VOUT=3V, IOUT=10mA, 10Hz to 100kHz)
Ultra-low noise density: 3nV/√Hz (at 10kHz)
Ultra-high PSRR: 120dB (at 100Hz), 118dB (at 10kHz), 95dB (at 100kHz), 78dB (at 1MHz), 40dB (at 10MHz)
Output current: 200mA
Wide input voltage range: 2.4V to 20V
Single capacitor for improved noise and PSRR
High bandwidth: 1MHz
Programmable current limit
Dropout voltage: 350mV @ 200mA
Output voltage range: 0.5V to 16V
Fast startup capability
High-accuracy enable/UVLO
Internal foldback current limiting
Output voltage configured via external resistor
