ADIDatasheet (PDF)

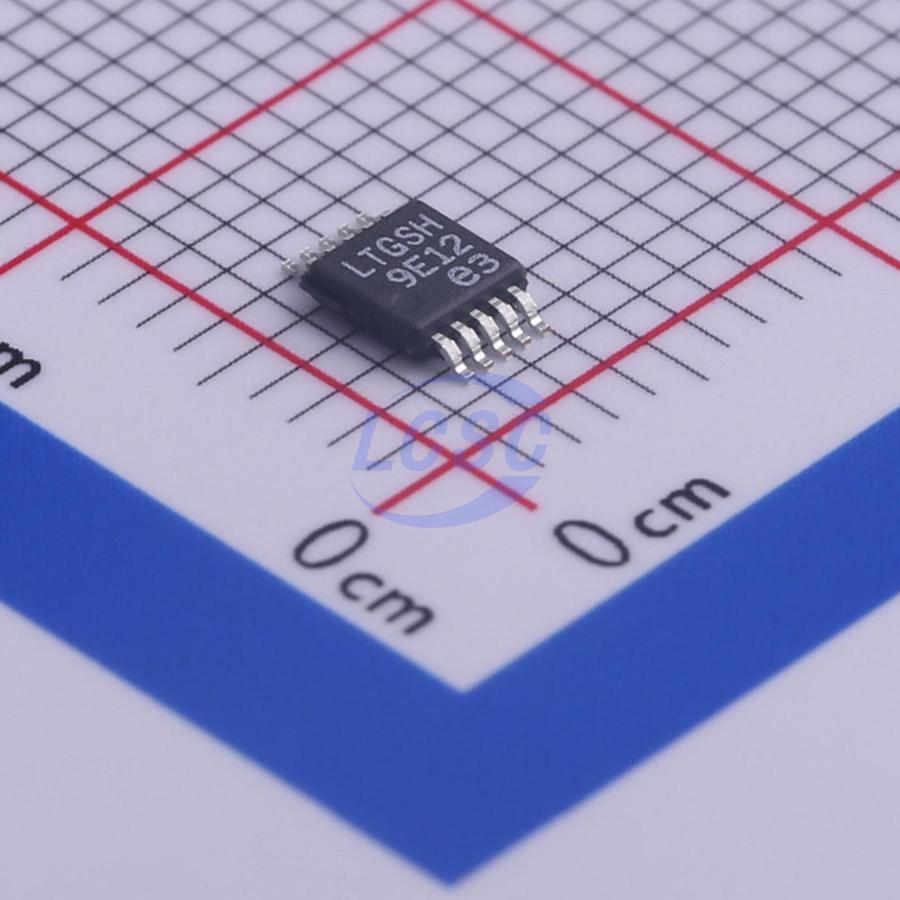

LT3042EMSE#TRPBF
0V~15V Positive Adjustable MSOP-10-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
MSOP-10-EPROHS3 CompliantActive
20V, 200mA, Ultralow Noise, Ultrahigh PSRR RF Linear Regulator
- Manufacturer
- ADI
- Manufacturer part #
- LT3042EMSE#TRPBF
- Store part #
- C461518
- Package / case
- MSOP-10-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,936 in stock
#C461518
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹768.83 | ₹768.83 |
| 10+ | ₹675.60 | ₹6,756.00 |
| 30+ | ₹659.56 | ₹19,786.80 |
| 100+ | ₹596.02 | ₹59,602.00 |
| 500+ | ₹573.04 | ₹2,86,520.00 |
| 1,000+ | ₹563.51 | ₹5,63,510.00 |
1 × ₹768.83
₹768.83
excl. GST
₹907.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LT3042EMSE#TRPBF
₹768.83 for 1 + GST
Specifications
- Output Voltage
- 0V~15V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 20V
- Features
- Enable control;Adjustable current limiting;Operating status indication;Input under-voltage protection;Reverse polarity voltage protection;Reverse-polarity current protection;Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
The ±√3042 is a high performance low dropout linear regulator featuring ultralow noise and ultrahigh PSRR architecture for powering noise sensitive RF applications. Designed as a precision current reference followed by a high performance voltage buffer, it can be easily paralleled to further reduce noise, increase output current and spread heat on the PCB. The device supplies 200mA at a typical 350mV dropout voltage. Operating quiescent current is nominally 2mA and drops to <<1A in shutdown. Its wide output voltage range (0V to 15V) while maintaining unity - gain operation provides virtually constant output noise, PSRR, bandwidth and load regulation, independent of the programmed output voltage. Additionally, the regulator features programmable current limit, fast start - up capability and programmable power good to indicate output voltage regulation. It is stable with a minimum 4.7µF ceramic output capacitor. Built - in protection includes reverse battery protection, reverse current protection, internal current limit with foldback and thermal limit with hysteresis. It is available in thermally enhanced 10 - Lead MSOP and 3mm × 3mm DFN packages.
Applications
- RF Power Supplies: PLLs, VCOs, Mixers, LNAs
- Very Low Noise Instrumentation
- High Speed/High Precision Data Converters
- Medical Applications: Imaging, Diagnostics
- Precision Power Supplies
- Post - Regulator for Switching Supplies
Key features
- Ultralow RMS Noise: 0.8µVRMS (10Hz to 100kHz)
- Ultralow Spot Noise: 2nV/√Hz at 10kHz
- Ultrahigh PSRR: 79dB at 1MHz
- Output Current: 200mA
- Wide Input Voltage Range: 1.81 to 20V
- Single Capacitor Improves Noise and PSRR
- 100µA SET Pin Current: ±1% Initial Accuracy
- Single Resistor Programs Output Voltage
- High Bandwidth: 1MHz
- Programmable Current Limit
- Low Dropout Voltage: 350mV
- Output Voltage Range: 0V to 15V
- Programmable Power Good
- Fast Start - Up Capability
- Precision Enable/UVLO
- Parallelable for Lower Noise and Higher Current
- Internal Current Limit with Foldback
- Minimum Output Capacitor: 4.7µF Ceramic
- Reverse Battery and Reverse Current Protection
- 10 - Lead MSOP and 3mm × 3mm DFN Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LT3042EMSE#PBF#C69847ADI · MSOP-10-EP | ADI | MSOP-10-EP | 2 | ₹904.96 · 2 in stock | View |
 | LT3042IMSE#PBF#C580011ADI · MSOP-10-EP | ADI | MSOP-10-EP | 308 | ₹917.24 · 308 in stock | View |
 | LT3042MPMSE#PBF#C666572ADI · MSOP-10-EP | ADI | MSOP-10-EP | 6 | ₹928.19 · 6 in stock | View |
| LT3042IMSE#TRPBF#C666569ADI · MSOP-10-EP | ADI | MSOP-10-EP | 2 | ₹838.99 · 2 in stock | View | |
| LT3042HMSE#TRPBF#C666566ADI · MSOP-10-EP | ADI | MSOP-10-EP | 6 | ₹810.35 · 6 in stock | View | |
