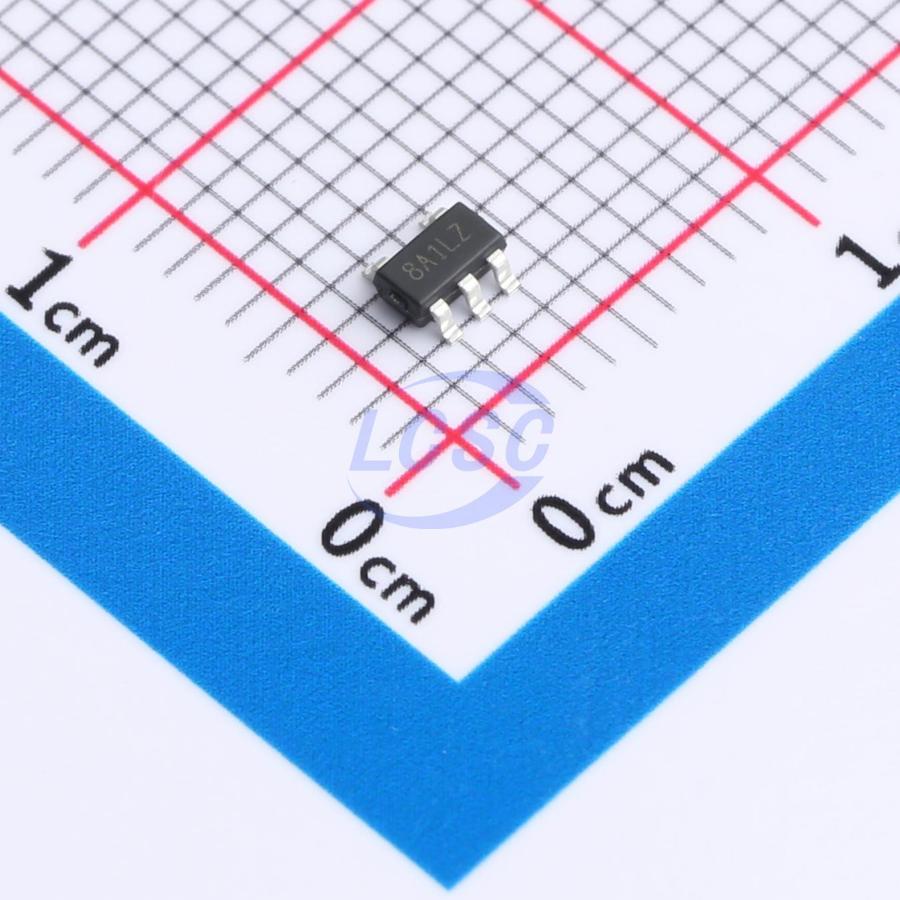

LTA180A1XT5/R6

The LTA180 series of current sense amplifiers (also called current shunt monitors) are designed for cost-optimized applications, that sense voltage drops across current-sense resistors at common-mode voltages from -0.2 V to +26 V, independent of the supply voltage. The LTA180 series integrate a matched resistor gain network in four fixed-gain device options: 20 V/V, 50 V/V, 100 V/V, or 200 V/V. This matched gain resistor network minimizes gain error and reduces the temperature drift. The LTA180 series operate from a single +2.7 V to +5.5 V power supply, drawing a maximum of 110 μA of supply current. The device is specified from -40°C to +125°C, and offered in SOT23-5L packages.

Applications

• Motor Control
• Battery Monitor, BMS
• Power Management
• Lighting Control
• Over-Current Detection
• Solar Inverters

Key features

• Wide common-mode range: –0.2 V to 26 V
• Offset voltage ±150 μV Maximum at VCM = 0V, ±500 μV Maximum at VCM = 12V
• Accuracy Maximum ±1% Gain Error, Maximum 1 μV/°C Offset Drift
• Gains Options: 20V/V, 50V/V, 100V/V, 200V/V
• Output slew rate: 1.3 V/μs
• Quiescent Current: Maximum 230 μA
• Package: SOT23-5L
