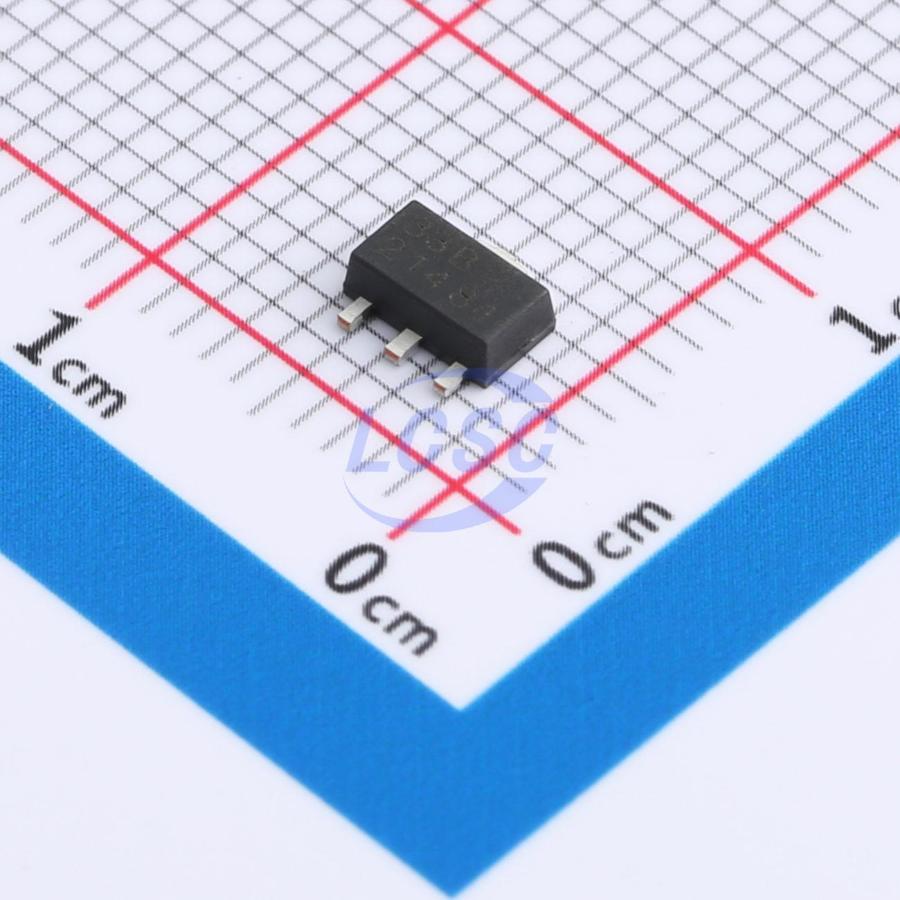

LTP3558A-33XT4
3.3V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89ROHS CompliantActive
36V Input Voltage, 200-mA, Ultra-low Iq LDOs
- Manufacturer
- Linearin
- Manufacturer part #
- LTP3558A-33XT4
- Store part #
- C5124530
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,015 in stock
#C5124530
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.69 | ₹218.45 |
| 50+ | ₹34.64 | ₹1,732.00 |
| 150+ | ₹30.75 | ₹4,612.50 |
| 1,000+ | ₹24.83 | ₹24,830.00 |
| 2,000+ | ₹22.68 | ₹45,360.00 |
| 6,000+ | ₹21.38 | ₹1,28,280.00 |
| 9,000+ | ₹21.12 | ₹1,90,080.00 |
| 21,000+ | ₹20.93 | ₹4,39,530.00 |
5 × ₹43.69
₹218.45
excl. GST
₹257.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LTP3558A-33XT4
₹218.45 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 36V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.176 g
Overview
The LTP3558 is a high voltage, low power consumption and high performance LDO. The family uses an advanced CMOS process and a P-MOSFET pass device to achieve fast start-up, with high output voltage accuracy. The LTP3558 is stable with a 1.0μF~10μF ceramic output capacitor, and uses a precision voltage reference and feedback loop to achieve a worst-case accuracy of 2% over all load, line, process, and temperature variations.
Key features
- Wide Input Voltage Range: up to 36V
- Output Current: 200mA
- Standard Fixed Output Voltage Options: 1.8V, 2.5V, 3.0V, 3.3V, 3.6V, and 5.0V
- Other Output Voltage Options Available on Request
- Low IQ: 1.5μA
- Low Dropout Voltage
- Short current protection: 100mA
- Excellent Load and Line Transient Response
- Line Regulation: 0.01%N Typically
- Available Packages: SOT23-3, SOT23-5, DFN1x1-4, SOT89-3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LTP3558-33XT4#C2897784Linearin · SOT-89-3 | Linearin | SOT-89-3 | 460 | ₹29.53 · 460 in stock | View |
 | LTP3559-33RXT4#C3035461Linearin · SOT-89-3 | Linearin | SOT-89-3 | 900 | ₹41.87 · 900 in stock | View |
 | LTP3559-33XT4#C3035462Linearin · SOT-89-3 | Linearin | SOT-89-3 | 80 | ₹46.20 · 80 in stock | View |
 | LTP3559A-33XT4#C3035467Linearin · SOT-89-3 | Linearin | SOT-89-3 | 150 | ₹52.36 · 150 in stock | View |
