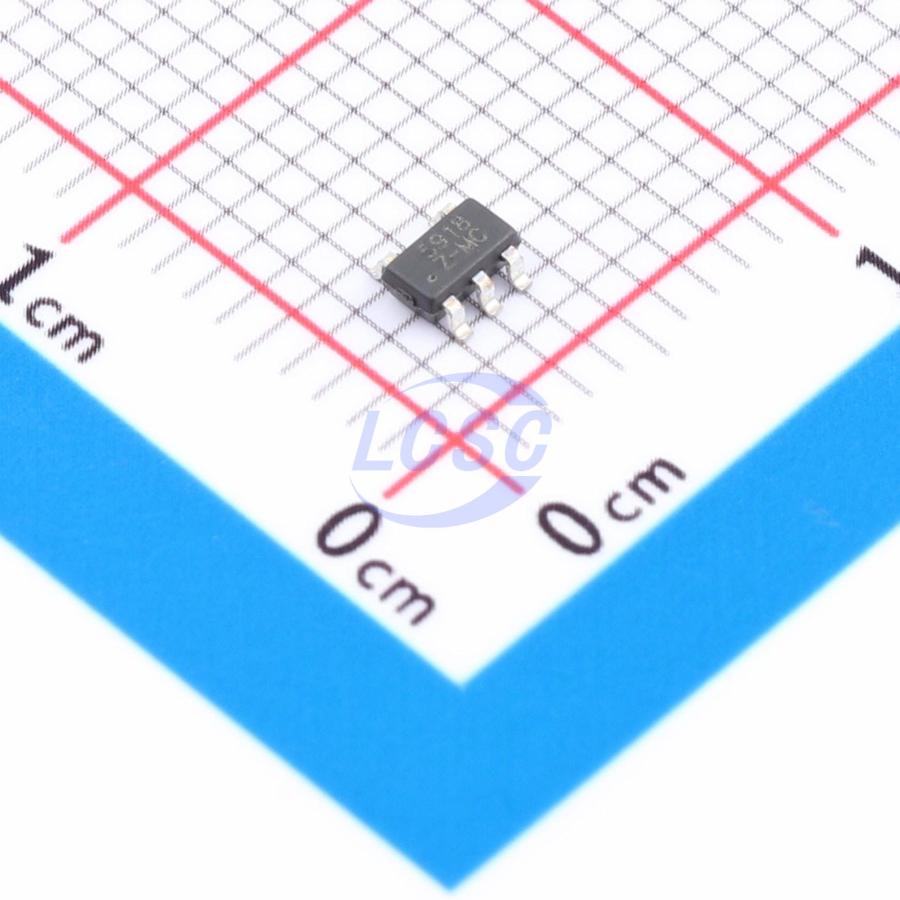

LTP3559-18NXT5
1.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
IC REG LINEAR 1.8V 350mA SOT-23-5
- Manufacturer
- Linearin
- Manufacturer part #
- LTP3559-18NXT5
- Store part #
- C50396402
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,325 in stock
#C50396402
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.15 | ₹220.75 |
| 50+ | ₹34.70 | ₹1,735.00 |
| 150+ | ₹30.67 | ₹4,600.50 |
| 500+ | ₹25.61 | ₹12,805.00 |
| 3,000+ | ₹23.36 | ₹70,080.00 |
| 6,000+ | ₹22.01 | ₹1,32,060.00 |
5 × ₹44.15
₹220.75
excl. GST
₹260.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LTP3559-18NXT5
₹220.75 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2.6uA
- Output Configuration
- Positive
- Operating Voltage
- 45V
- Output Current
- 350mA
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
The LTP3559 is a high-voltage, low-power, high-performance LDO linear regulator. This series utilizes an advanced CMOS process and P-MOSFET pass device to achieve fast startup and high output voltage accuracy. The LTP3559 maintains stability with ceramic output capacitors ranging from 1.0 μF to 10 μF, and employs a precision voltage reference and feedback loop to ensure a worst-case accuracy of 2% across all load, input voltage, process, and temperature variations.
Key features
- Wide input voltage range: up to 45 V
- Output current: 350 mA
- Standard fixed output voltage options: 1.8 V, 2.5 V, 3.0 V, 3.3 V, 3.6 V, and 5.0 V
- Additional output voltage options available upon request
- Low quiescent current: 2.6 μA typical
- Low dropout voltage
- Short-circuit current protection: 150 mA
- Excellent load and line transient response
- Line regulation: 0.01%/V typical
- Standard versions available in SOT23-3, SOT23-5, and SOT89-3 packages
- Shutdown versions available in SOT23-5 and micro DFN1×1-4 packages
