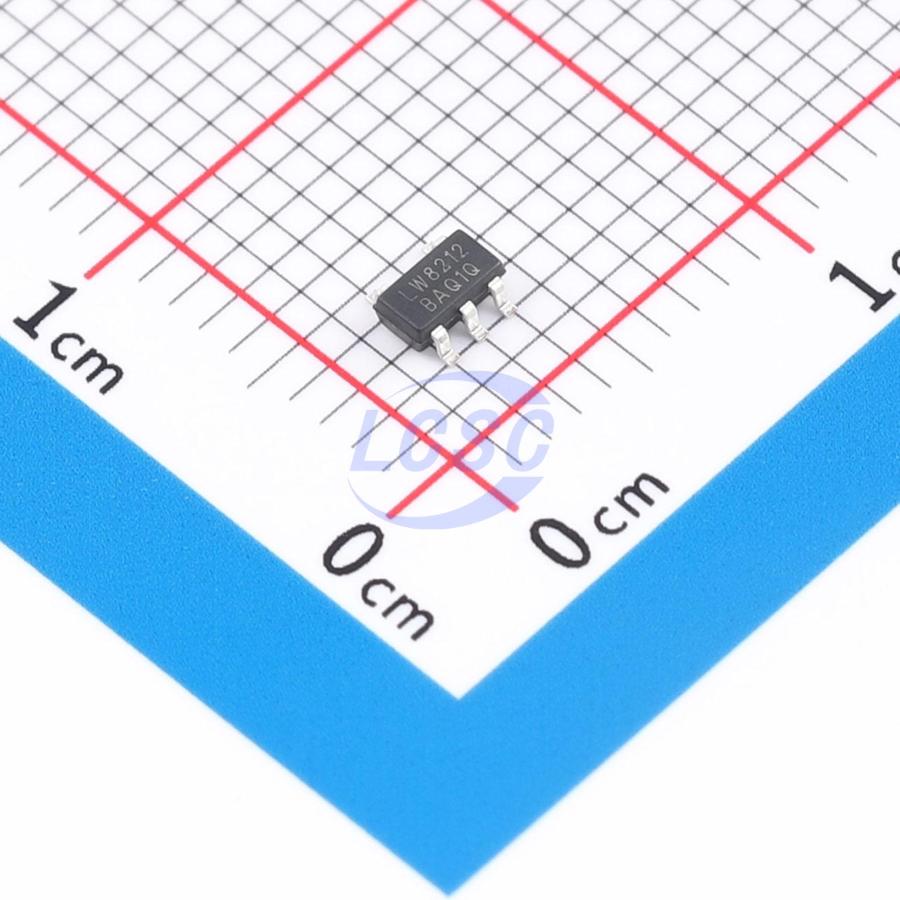

LW8212A23E
Linear Voltage Regulator IC Positive Fixed 1 Output 1000mA SOT-23-5L
SOT-23-5LROHS CompliantActive
1000mA High Speed Fixed Output Voltage LDO With Reverse Current Protection
- Manufacturer
- Lewa Micro
- Manufacturer part #
- LW8212A23E
- Store part #
- C47018751
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,845 in stock
#C47018751
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.42 | ₹87.10 |
| 50+ | ₹13.77 | ₹688.50 |
| 150+ | ₹11.95 | ₹1,792.50 |
| 500+ | ₹10.58 | ₹5,290.00 |
| 3,000+ | ₹9.49 | ₹28,470.00 |
| 6,000+ | ₹8.94 | ₹53,640.00 |
5 × ₹17.42
₹87.10
excl. GST
₹102.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LW8212A23E
₹87.10 for 5 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 28uA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 7V
- Features
- Enable control;Reverse-polarity current protection;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The LW82XX series is a family of high-accuracy, high-speed, low-dropout voltage regulators featuring reverse current protection, high ripple rejection, and fast discharge capability. Each device consists of a voltage reference, error amplifier, driver transistor, current limiter, thermal protection circuit, reverse current protection circuit, and phase compensation circuit. The output voltage is selectable from 0.8V to 5.0V in 100mV steps via laser trimming technology. The LW82XX series is available in SOT23-5L, DFN2x2-6L, DFN3x3-8L, and SOT89-5L packages.
Applications
- Battery-powered devices
- Reference voltage sources
- USB products and HDMI devices
- Other low-voltage power supplies
Key features
- Output accuracy: ±1.0%
- Low quiescent current: 28μA
- Low dropout voltage: 310mV@1000mA/3.3V
- High PSRR: 78dB@1KHz, 10mA
- Output current: 1000mA
- Excellent line and load transient response
- Operating voltage range: 1.8V to 7.0V
- Output voltage range: 0.8V to 5.0V
- Over-temperature protection
- Current limiting protection
- Output short-circuit protection
- Reverse current protection
- Available in SOT23-5L, DFN2x2-6L, DFN3x3-8L, and SOT89-5L packages
