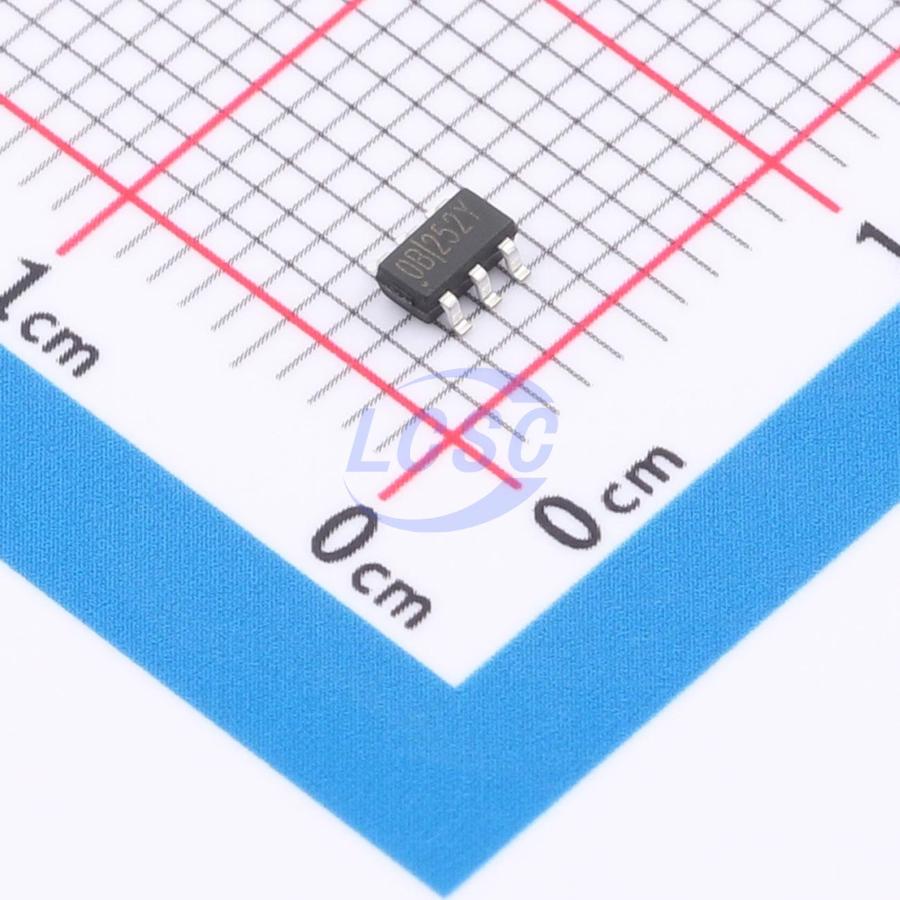

LY5800B

Low Side Switch 2A SOT-23-6

SOT-23-6RoHSActive

30V Over-Voltage Protection (OVP) Chip

Manufacturer: Lingyang Micro
Manufacturer part #: LY5800B
Store part #: C46613946
Package / case: SOT-23-6
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,700 in stock

#C46613946

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹6.97	₹69.70
100+	₹5.52	₹552.00
300+	₹4.79	₹1,437.00
3,000+	₹4.23	₹12,690.00
6,000+	₹3.80	₹22,800.00
9,000+	₹3.59	₹32,310.00

Quantity (min 10, multiples of 10)

10 × ₹6.97

₹69.70

excl. GST

₹82.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LY5800B

₹69.70 for 10 + GST

Specifications

Operating Temperature: -25℃~+125℃
Features: Overvoltage protection
Maximum Continuous Current: 2A
RDS(on): 45mΩ
Type: Low Side Switch

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.041 g

Overview

LY5800B is a low-side overvoltage protection IC with an integrated 45mΩ low on-resistance NMOS switch, effectively reducing input voltage drop, supporting a maximum input voltage of 30V. The overvoltage protection threshold is adjustable via external feedback pin voltage divider resistors or a Zener diode with resistor combination, and should be set below 12V. Two configuration methods are available: First, connect voltage divider resistors to the feedback pin — the OVP threshold is calculated as V_OVP = 0.54 × (R1 + R2)/R2 (V), with R2 recommended in the range of 470Ω to 1kΩ; Second, connect a Zener diode in series with a resistor to the feedback pin — the OVP threshold is calculated as V_OVP = Vzener + 0.54V, with a 6.1V Zener diode recommended at a current rating greater than 5mA. This method provides lower sensitivity to operating current and temperature variations; recommended for applications where operating current exceeds 1.5A.
