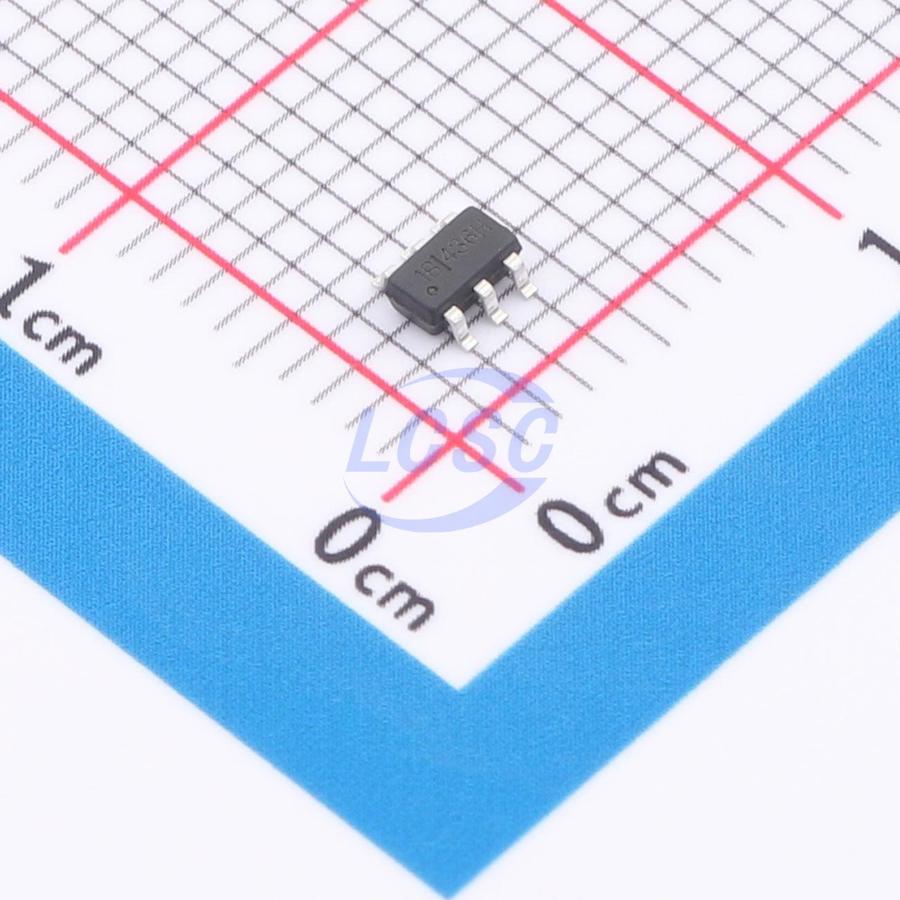

Lingyang Micro

LY5801B

Low Side Switch 2.5A SOT-23-6

SOT-23-6RoHSActive

30V/35mΩ Over-Voltage Protection (OVP) Chip

Manufacturer: Lingyang Micro
Manufacturer part #: LY5801B
Store part #: C46613945
Package / case: SOT-23-6
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,830 in stock

#C46613945

Stock & price checked 23 h ago

Quantity	Unit price	Pack price
10+	₹7.47	₹74.70
100+	₹5.90	₹590.00
300+	₹5.12	₹1,536.00
3,000+	₹4.54	₹13,620.00
6,000+	₹4.06	₹24,360.00
9,000+	₹3.84	₹34,560.00

Quantity (min 10, multiples of 10)

10 × ₹7.47

₹74.70

excl. GST

₹88.15 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LY5801B

₹74.70 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -25℃~+125℃
Features: Overvoltage protection
Maximum Continuous Current: 2.5A
RDS(on): 35mΩ
Type: Low Side Switch

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.043 g

Overview

Low-side overvoltage protection IC with an integrated 35mΩ low on-resistance NMOS switch, effectively reducing input voltage drop. Maximum input voltage up to 30V. The OVP threshold is externally adjustable and should be set below 12V. Two methods are available for setting the OVP threshold: 1. **FB pin with voltage divider resistors:** V_OVP = 0.54 × (R1 + R2) / R2 (V). R2 is recommended to be between 470Ω and 1KΩ. 2. **FB pin with Zener diode and resistor:** V_OVP = Vzener + 0.54V. Vzener is the voltage of the selected Zener diode. A 6.1V Zener diode is recommended, with a current rating greater than 5mA. When using a 6.1V Zener diode: V_OVP = 6.1V + 0.54V = 6.64V. This method offers the advantage of a more stable OVP threshold, less susceptible to variations in IC current and temperature. This method is recommended when the current exceeds 2A.
