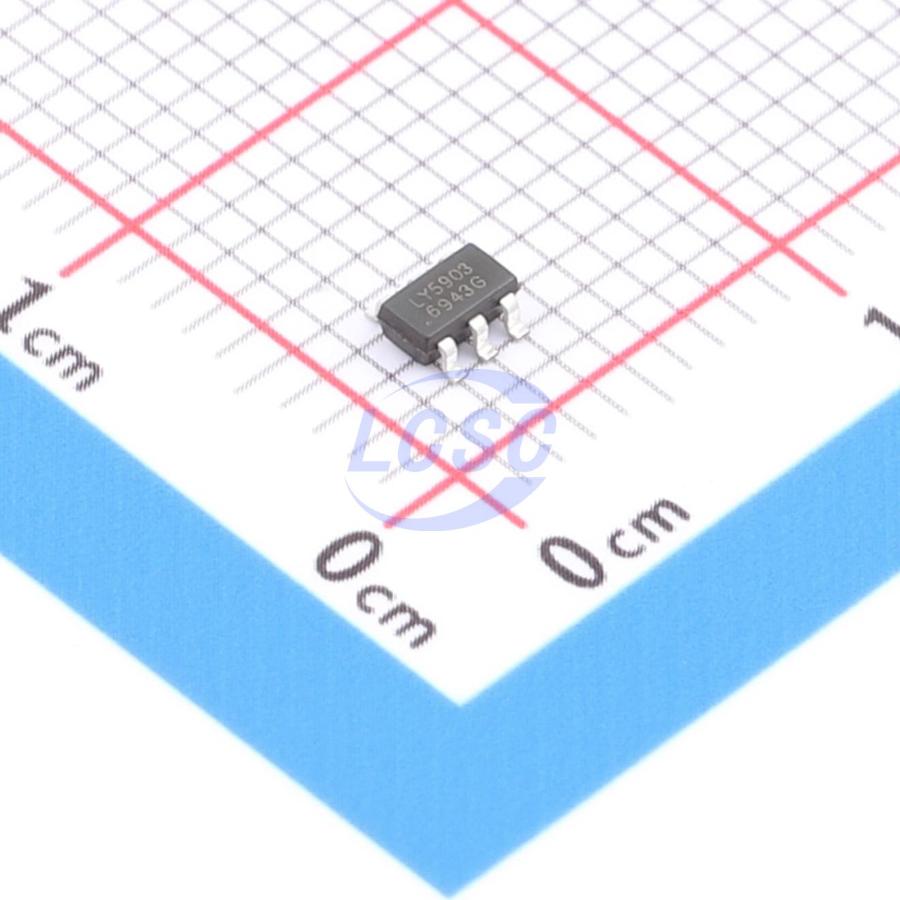

Lingyang Micro

LY5903

1 Active Low SOT-23-6 Power Distribution Switches, Load Drivers

SOT-23-6RoHSActive

Overvoltage and overcurrent protection chip

Manufacturer: Lingyang Micro
Manufacturer part #: LY5903
Store part #: C46613940
Package / case: SOT-23-6
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,960 in stock

#C46613940

Stock & price checked 25 h ago

Quantity	Unit price	Pack price
10+	₹7.86	₹78.60
100+	₹6.19	₹619.00
300+	₹5.36	₹1,608.00
3,000+	₹4.74	₹14,220.00
6,000+	₹4.23	₹25,380.00
9,000+	₹4.00	₹36,000.00

Quantity (min 10, multiples of 10)

10 × ₹7.86

₹78.60

excl. GST

₹92.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LY5903

₹78.60 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Overcurrent Protection;Overvoltage protection;Under-voltage lockout
number of channels: 1
Control Input Logic: Active Low
Operating Voltage: 4V~30V
RDS(on): 240mΩ

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.198 g

Overview

LY5903 is an overvoltage and overcurrent protection IC with an input voltage tolerance up to 30V. The overvoltage protection threshold is fixed at 6.1V, while the overcurrent protection threshold is externally adjustable. Upon detection of an overvoltage or overcurrent condition, the IC immediately cuts off the internal switching transistor to prevent damage to downstream circuitry. The IC integrates an enable control function: the enable pin CE is active low, and when driven high, it disables the VOUT output switch.
