onsemiDatasheet (PDF)

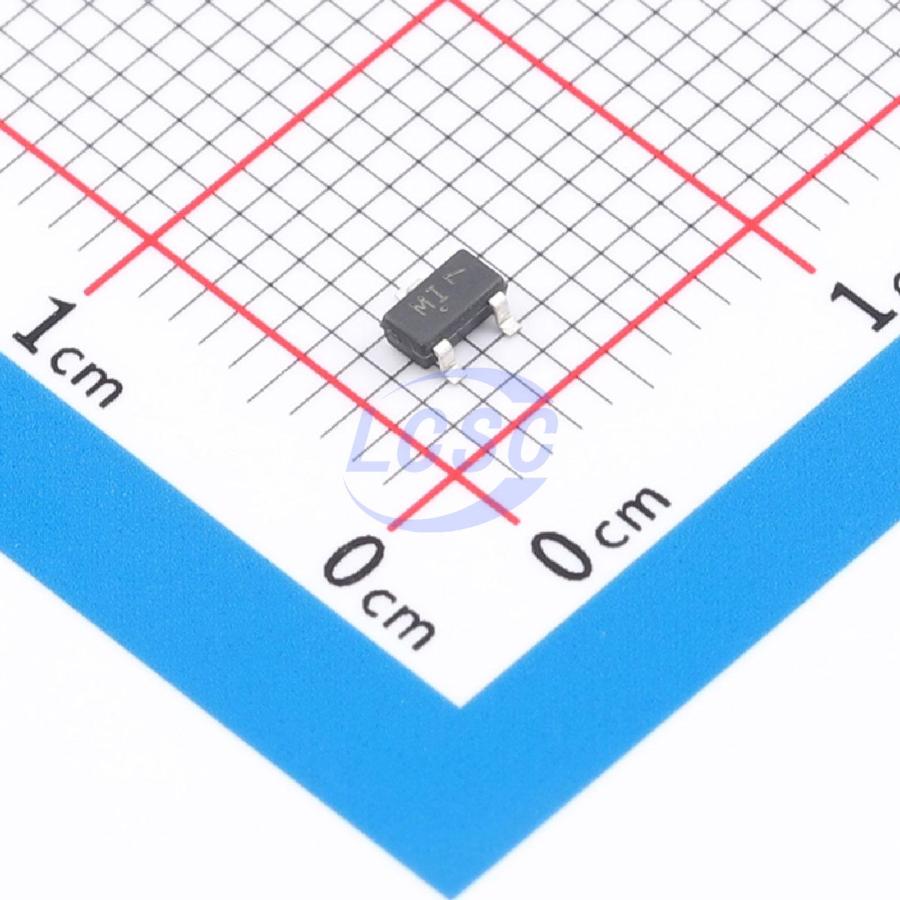

M1MA152KT1G
Diode 80V 100mA Surface Mount SC-59
SC-59ROHS3 CompliantActive
DIODE GP 80V 100mA SC-59
- Manufacturer
- onsemi
- Manufacturer part #
- M1MA152KT1G
- Store part #
- C891375
- Package / case
- SC-59
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C891375
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.71 | ₹83.55 |
| 50+ | ₹13.08 | ₹654.00 |
| 150+ | ₹11.26 | ₹1,689.00 |
| 500+ | ₹9.90 | ₹4,950.00 |
| 3,000+ | ₹8.81 | ₹26,430.00 |
| 6,000+ | ₹8.27 | ₹49,620.00 |
5 × ₹16.71
₹83.55
excl. GST
₹98.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
M1MA152KT1G
₹83.55 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 3ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 80V
- Pd - Power Dissipation
- 200mW
- Voltage - Forward(Vf@If)
- 1.2V@100mA
- Reverse Leakage Current (Ir)
- 100nA@75V
- Non-Repetitive Peak Forward Surge Current
- 500mA
- Current - Rectified
- 100mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.074 g
Overview
These Silicon Epitaxial Planar Diodes are designed for use in ultra high speed switching applications. These devices are housed in the SC−59 package which is designed for low power surface mount applications.
Key features
- Fast trr < 3.0 ns
- Low CD, < 2.0 pF
- Available in 8 mm Tape and Reel
- Pb−Free Packages are Available
