ST

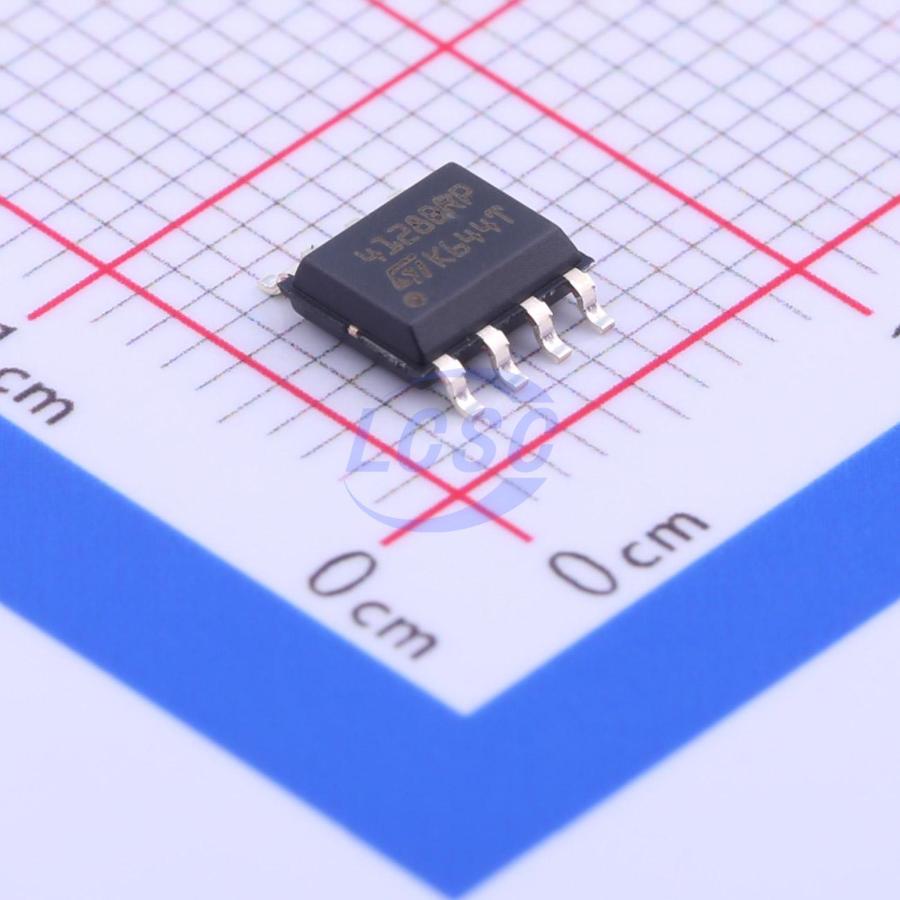

M24128-BRMN6TP
128Kbit 1MHz I2C SOIC-8 Memory RoHS
SOIC-8ROHS3 CompliantActive
128-Kbit serial I2C bus EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,475 in stock
#C79989
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.89 | ₹259.45 |
| 50+ | ₹41.13 | ₹2,056.50 |
| 150+ | ₹36.53 | ₹5,479.50 |
| 500+ | ₹30.77 | ₹15,385.00 |
| 2,500+ | ₹28.22 | ₹70,550.00 |
| 5,000+ | ₹26.67 | ₹1,33,350.00 |
5 × ₹51.89
₹259.45
excl. GST
₹306.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
M24128-BRMN6TP
₹259.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.8V~5.5V;2.5mA
- Clock Frequency
- 1MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The M24128 is a 128-Kbit |²C -compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 16 Kx8 bits. The M24128-BW can operate with a supply voltage from 2.5 V to 5.5 V; the M24128-BR can operate with a supply voltage from 1.8 V to 5.5 V; and the M24128-BF and M24128-DF can operate with a supply voltage from 1.7 V to 5.5 V. All these devices operate with a clock frequency
Key features
- Compatible with all |²C bus modes: 1 MHz, 400 kHz, 100 kHz
- Memory array: 128 Kbit (16 Kbyte) of EEPROM
- Page size: 64 byte
- Additional Write lockable page (M24128-D order codes)
- Single supply voltage and high speed: 1 MHz clock from 1.7 V to 5.5 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24128-BRMN6P#C1353525ST · SOIC-8 | ST | SOIC-8 | 34 | ₹49.88 · 34 in stock | View |
 | 24FC128-I/SN#C615158MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 97 | ₹242.29 · 97 in stock | View |
 | 24FC128T-I/SN#C615658MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 120 | ₹199.26 · 120 in stock | View |
 | 24CW1280T-I/SN#C615645MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 48 | ₹203.68 · 48 in stock | View |
 | M24128-DRMN8TP/K#C2061507ST · SO-8 | ST | SO-8 | 3 | ₹178.31 · 3 in stock | View |
