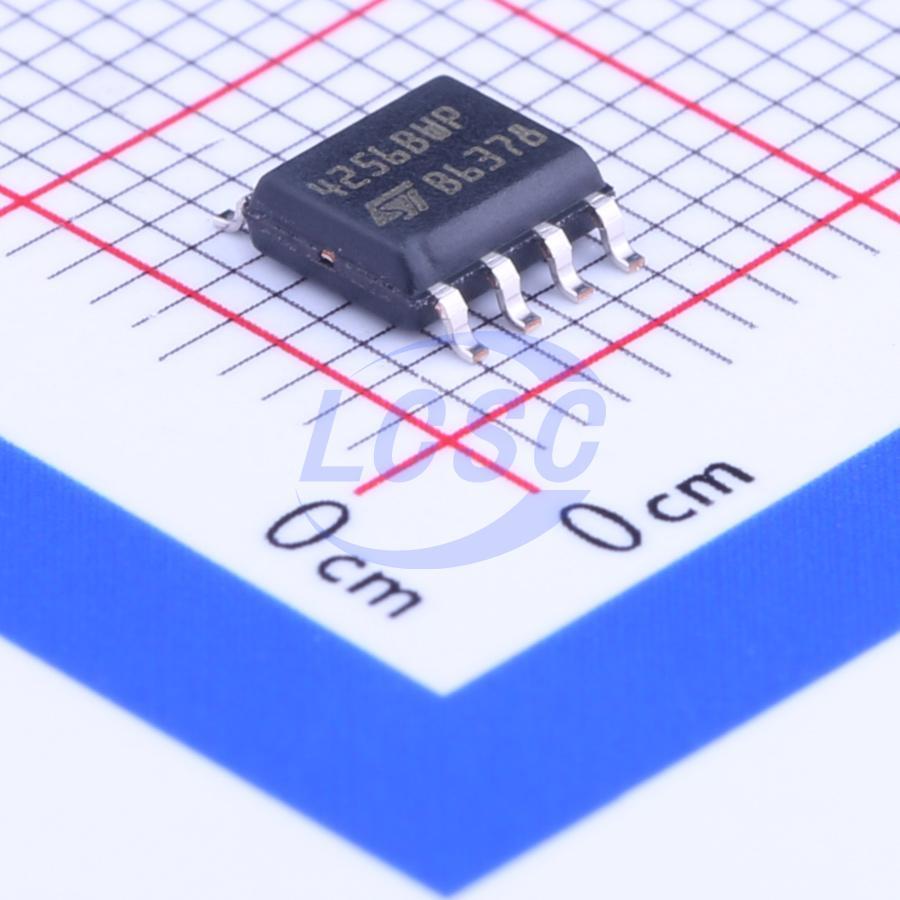

M24256-BWMN6TP
256Kbit 1MHz I2C SOIC-8-150mil Memory RoHS
256-Kbit serial I2C bus EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,376 in stock
#C118279
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.10 | ₹55.10 |
| 10+ | ₹44.44 | ₹444.40 |
| 30+ | ₹39.74 | ₹1,192.20 |
| 100+ | ₹33.97 | ₹3,397.00 |
| 500+ | ₹29.45 | ₹14,725.00 |
| 1,000+ | ₹27.82 | ₹27,820.00 |
1 × ₹55.10
₹55.10
excl. GST
₹65.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
M24256-BWMN6TP
₹55.10 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function
- Memory Size
- 256Kbit
- Voltage - Supply
- 2.5V~5.5V;2.5mA
- Clock Frequency
- 1MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.235 g
Overview
The M24256 is a 256-Kbit |²C -compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 32 Kx8 bits. The M24256-BW can operate with a supply voltage from 2.5 V to 5.5 V; the M24256-BR and M24256-DR can operate with a supply voltage from 1.8 V to 5.5 V; and the M24256-BF and M24256-DF can operate with a supply voltage from 1.7 V to 5.5 V. All these devices operate with a clock frequency of 1 MHz (or less), over an ambient temperature range of -40 ℃ / +85 ℃. The M24256-D offers an additional page, named the Identification Page (64 bytes). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.
Key features
- Compatible with all |²C bus modes: 1 MHz, 400 kHz, 100 kHz
- Memory array: 256 Kbit (32 Kbytes) of EEPROM Page size: 64 bytes Additional Write lockable page (M24256-D order codes)
- Single supply voltage and high speed: -1 MHz clock from 1.7 V to 5.5 V
- Unsawn wafer
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24256-BWMN6P#C283433ST · SO-8 | ST | SO-8 | 710 | ₹95.40 · 710 in stock | View |
 | M24256-BRMN6P#C2970040ST · SOIC-8 | ST | SOIC-8 | 2 | ₹54.73 · 2 in stock | View |
 | M24256-BRMN6TP#C79984ST · SOIC-8 | ST | SOIC-8 | On request | Price on request | Quote |
| M24256-DFMN6TP#C2970055ST · SO-8-150mil | ST | SO-8-150mil | 9 | ₹104.80 · 9 in stock | View | |
 | M24256E-FMN6TP#C5221744ST · SO-8 | ST | SO-8 | 1,25,210 | ₹26.74 · 1,25,210 in stock | View |
