ST

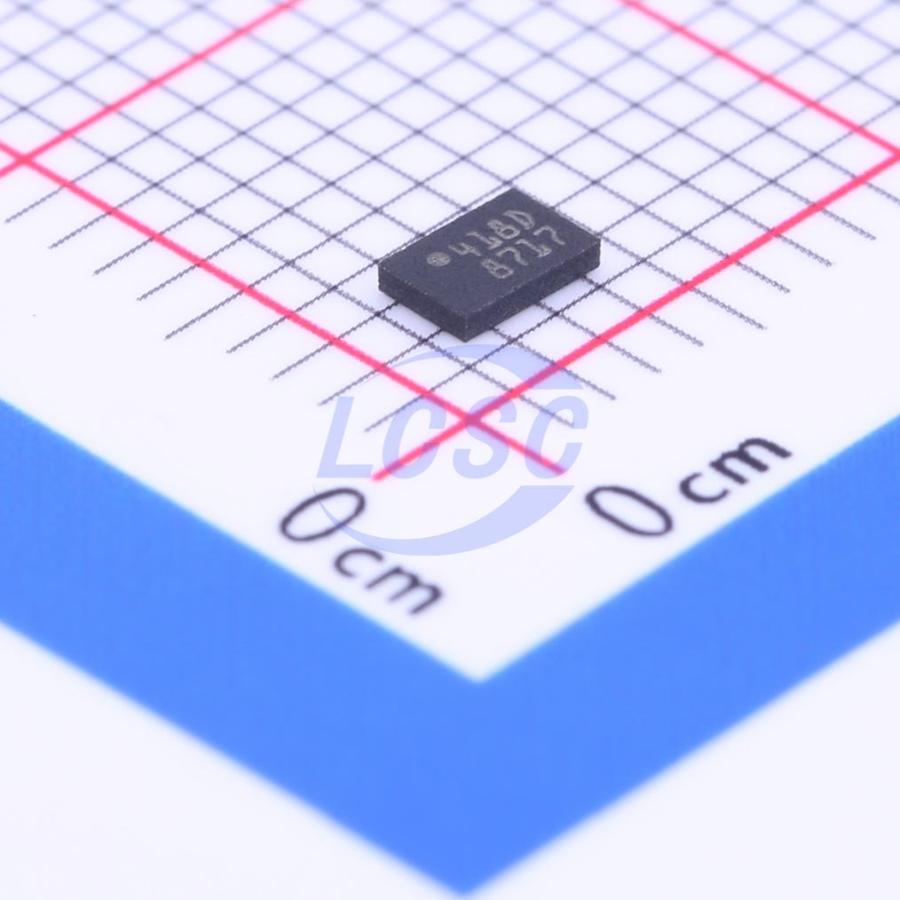

M24512-DFMC6TG
512Kbit 1MHz I2C DFN-8(2x3) Memory RoHS
DFN-8(2x3)ROHS3 CompliantActive
512-Kbit serial I2C bus EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,028 in stock
#C222237
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.24 | ₹75.24 |
| 10+ | ₹60.50 | ₹605.00 |
| 30+ | ₹52.91 | ₹1,587.30 |
| 100+ | ₹45.54 | ₹4,554.00 |
| 500+ | ₹41.20 | ₹20,600.00 |
| 1,000+ | ₹38.82 | ₹38,820.00 |
1 × ₹75.24
₹75.24
excl. GST
₹88.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
M24512-DFMC6TG
₹75.24 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function
- Memory Size
- 512Kbit
- Voltage - Supply
- 1.7V~5.5V;5mA
- Clock Frequency
- 1MHz
- Access Time
- 450ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.113 g
Overview
The M24512 is a 512-Kbit |²C -compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 64Kx8 bits. The M24512-W can operate with a supply voltage from 2.5 V to 5.5 V.
Key features
- Compatible with all |²C bus modes: 1 MHz, 400 kHz, 100 kHz
- Memory array: 512 Kbit (64 Kbyte) of EEPROM
- Page size: 128 byte
- Additional Write lockable page (M24512-D order codes)
- Single supply voltage and high speed: 1 MHz clock from 1.7 V to 5.5 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24FC512T-I/Q4B#C5229707MICROCHIP · UDFN-8(2x3) | MICROCHIP | UDFN-8(2x3) | 76 | ₹358.98 · 76 in stock | View |
 | M24512-DRMF3TG/K#C2653506ST · MLP-8(2x3) | ST | MLP-8(2x3) | 3 | ₹455.31 · 3 in stock | View |
| AT24C512C-MAHM-E#C2060974MICROCHIP · UDFN-8(2x3) | MICROCHIP | UDFN-8(2x3) | 1 | ₹348.46 · 1 in stock | View | |
 | AT24C512C-MAHM-T#C2980241MICROCHIP · UDFN-8(2x3) | MICROCHIP | UDFN-8(2x3) | 29 | ₹264.85 · 29 in stock | View |
 | ZD24C512A-MAGMT#C19725754Zetta · DFN-8L(2x3) | Zetta | DFN-8L(2x3) | 4,066 | ₹94.13 · 4,066 in stock | View |
