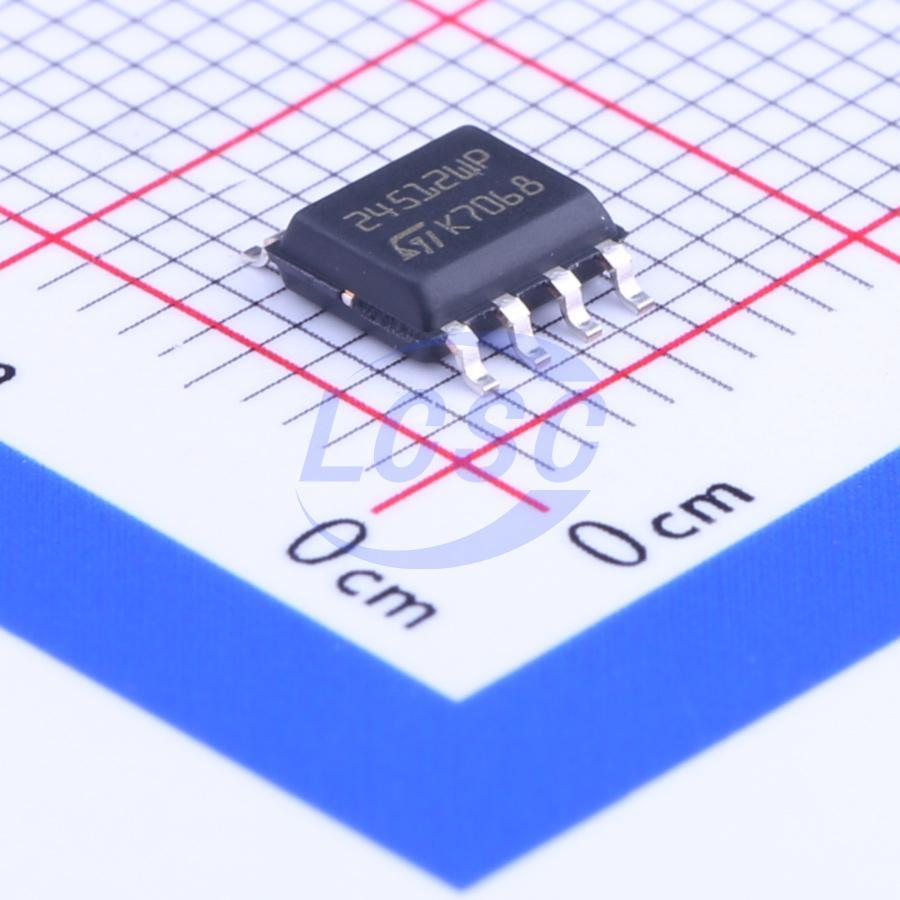

M24512-WMN6TP
512Kbit 1MHz I2C SOIC-8 Memory RoHS
512-Kbit serial I2C bus EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,389 in stock
#C7561
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.26 | ₹79.26 |
| 10+ | ₹61.68 | ₹616.80 |
| 30+ | ₹54.07 | ₹1,622.10 |
| 100+ | ₹44.52 | ₹4,452.00 |
| 500+ | ₹40.39 | ₹20,195.00 |
| 1,000+ | ₹37.78 | ₹37,780.00 |
1 × ₹79.26
₹79.26
excl. GST
₹93.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
M24512-WMN6TP
₹79.26 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function
- Memory Size
- 512Kbit
- Voltage - Supply
- 2.5V~5.5V;5mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.235 g
Overview
The M24512 is a 512-Kbit |²C -compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 64 Kx8 bits. The M24512-W can operate with a supply voltage from 2.5 V to 5.5 V, the M24512-R and M24512-DR can operate with a supply voltage from 1.8 V to 5.5 V and the M24512-DF can operate with a supply voltage from 1.7 V to 5.5 V. All these devices operate with a clock frequency of 1 MHz (or less) over an ambient temperature range of -40 ℃ / +85 ℃ The M24512-D offers an additional page, named the Identification Page (128 bytes). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.
Key features
- Compatible with all |²C bus modes: 1 MHz, 400 kHz, 100 kHz
- Memory array: 512 Kbit (64 Kbytes) of EEPROM Page size: 128 bytes Additional Write lockable page (M24512-D order codes)
- Single supply voltage and high speed: 1 MHz clock from 1.7 V to 5.5 V
- Write: Byte Write within 5 ms Page Write within 5 ms
- Operating temperature range: from -40 ℃ up to +85 ℃
- UFDFPN8(MC)
- WLCSP (CS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24512-WMN6P#C2802059ST · SO-8 | ST | SO-8 | 780 | ₹133.78 · 780 in stock | View |
 | M24512-RMN6P#C1349691ST · SOP-8 | ST | SOP-8 | 590 | ₹116.00 · 590 in stock | View |
 | M24512-RMN6TP#C79991ST · SOIC-8 | ST | SOIC-8 | 1,22,591 | ₹68.39 · 1,22,591 in stock | View |
 | M24512-DFMN6TP#C222090ST · SOP-8 | ST | SOP-8 | 15 | ₹84.54 · 15 in stock | View |
 | 24FC512-I/SN#C615159MICROCHIP · SOP-8 | MICROCHIP | SOP-8 | 1,108 | ₹223.65 · 1,108 in stock | View |
