ST

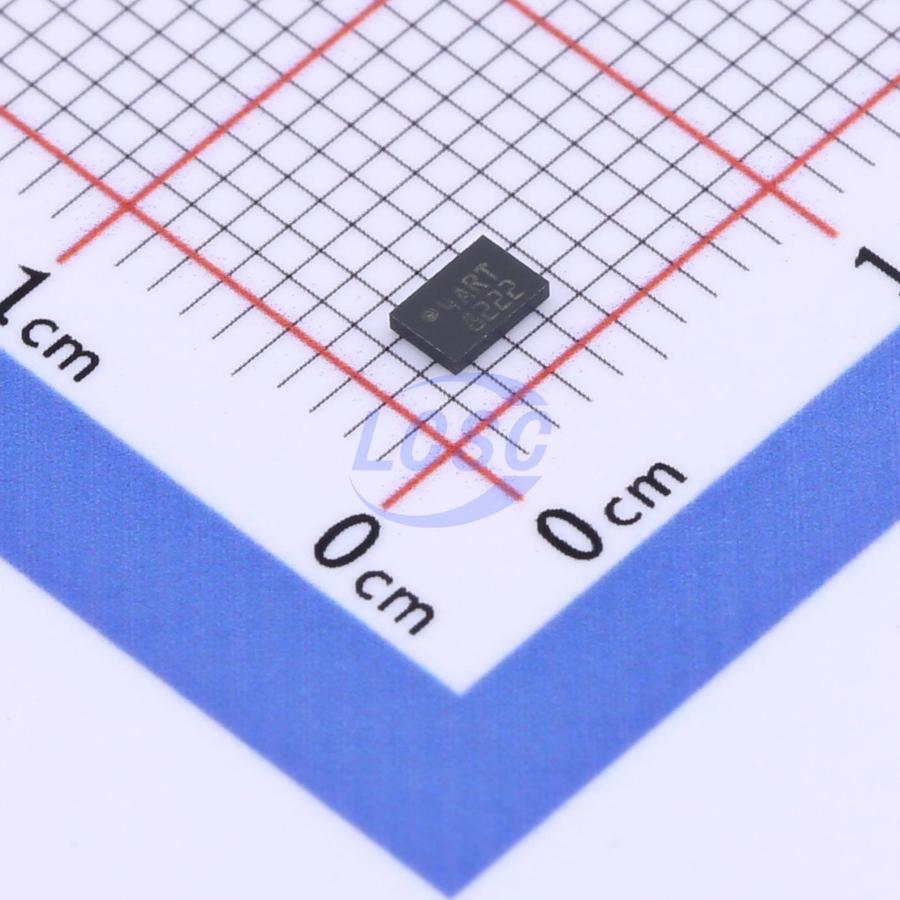

M24C02-RMC6TG
2Kbit 400kHz I2C DFN-8(2x3) Memory RoHS
DFN-8(2x3)ROHS3 CompliantActive
1-Kbit and 2-Kbit serial I²C bus EEPROMs
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,773 in stock
#C495258
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.38 | ₹74.38 |
| 10+ | ₹62.01 | ₹620.10 |
| 30+ | ₹56.81 | ₹1,704.30 |
| 100+ | ₹50.09 | ₹5,009.00 |
| 500+ | ₹47.27 | ₹23,635.00 |
| 1,000+ | ₹44.02 | ₹44,020.00 |
1 × ₹74.38
₹74.38
excl. GST
₹87.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
M24C02-RMC6TG
₹74.38 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.8V~5.5V;0.8mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns;3450ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.01 g
Overview
The M24C01(C02) is a 1(2)-Kbit |²C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 128 (256)x8 bits. The M24C01/02-W can be accessed with a supply voltage from 2.5 V to 5.5 V; the M24C01/02-R can be accessed with a supply voltage from 1.8 V to 5.5 V, and the M24C02-F can be accessed either with a su
Key features
- Compatible with |²C bus modes: 400 kHz, 100 kHz
- Memory array: 1 Kbit (128 bytes) of EEPROM, 2 Kbit (256 bytes) of EEPROM
- Page size: 16 byte
- Single supply voltage: M24C01/02-W: 2.5V to 5.5V; M24C01/02-R: 1.8 V to 5.5V; M24C02-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
- Write: Byte Write within 5 ms, Page Write within 5 ms
- Operating temperature range: from -40 ℃ up to +85 ℃
- Random and sequential Read modes
- Write protect of the whole memory array
- Enhanced ESD/Latch-Up protection
- More than 4 million Write cycles
- More than 200-years data retention
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24C02-FMC6TG#C2061399ST · UFDFPN-8(2x3) | ST | UFDFPN-8(2x3) | 6,025 | ₹38.61 · 6,025 in stock | View |
 | 24AA025T-I/MNY#C2062470MICROCHIP · TDFN-8-EP(2x3) | MICROCHIP | TDFN-8-EP(2x3) | 50 | ₹100.01 · 50 in stock | View |
 | 24AA025T-I/MC#C2061199MICROCHIP · DFN-8-EP(2x3) | MICROCHIP | DFN-8-EP(2x3) | 7 | ₹159.02 · 7 in stock | View |
 | 24AA024T-I/MNY#C2061346MICROCHIP · TDFN-8-EP(2x3) | MICROCHIP | TDFN-8-EP(2x3) | 7 | ₹136.94 · 7 in stock | View |
 | 34AA02T-I/MNY#C2061369MICROCHIP · TDFN-8-EP(2x3) | MICROCHIP | TDFN-8-EP(2x3) | 10 | ₹92.66 · 10 in stock | View |
