ST

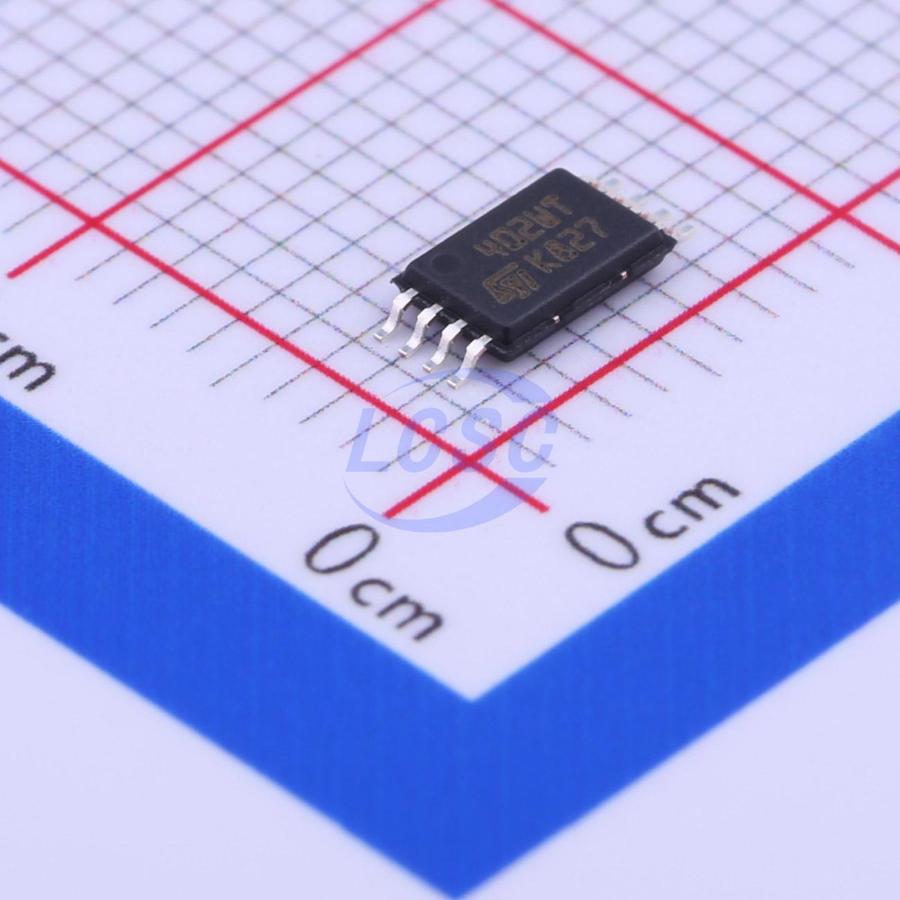

M24C02-WDW6TP
2Kbit 400kHz I2C TSSOP-8 Memory
TSSOP-8RoHSActive
1-Kbit and 2-Kbit serial I²C bus EEPROMs
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,200 in stock
#C283436
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.18 | ₹165.90 |
| 50+ | ₹26.99 | ₹1,349.50 |
| 150+ | ₹24.34 | ₹3,651.00 |
| 500+ | ₹21.04 | ₹10,520.00 |
| 2,500+ | ₹19.57 | ₹48,925.00 |
| 4,000+ | ₹18.68 | ₹74,720.00 |
5 × ₹33.18
₹165.90
excl. GST
₹195.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
M24C02-WDW6TP
₹165.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 2Kbit
- Voltage - Supply
- 2.5V~5.5V;1mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.147 g
Overview
The M24C01(C02) is a 1(2)-Kbit |²C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 128 (256)x8 bits. The M24C01/02-W can be accessed with a supply voltage from 2.5 V to 5.5 V; the M24C01/02-R can be accessed with a supply voltage from 1.8 V to 5.5 V, and the M24C02-F can be accessed either with a su
Key features
- Compatible with |²C bus modes: 400 kHz, 100 kHz
- Memory array: 1 Kbit (128 bytes) of EEPROM, 2 Kbit (256 bytes) of EEPROM
- Page size: 16 byte
- Single supply voltage: M24C01/02-W: 2.5V to 5.5V; M24C01/02-R: 1.8 V to 5.5V; M24C02-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
- Write: Byte Write within 5 ms, Page Write within 5 ms
- Operating temperature range: from -40 ℃ up to +85 ℃
- Random and sequential Read modes
- Write protect of the whole memory array
- Enhanced ESD/Latch-Up protection
- More than 4 million Write cycles
- More than 200-years data retention
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24C02-RDW6TP#C152731ST · TSSOP-8 | ST | TSSOP-8 | 3,625 | ₹31.39 · 3,625 in stock | View |
 | M24C02-FDW6TP#C157431ST · TSSOP-8 | ST | TSSOP-8 | 3,545 | ₹29.05 · 3,545 in stock | View |
 | 24LC025T-I/ST#C2065811MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 99 | ₹87.53 · 99 in stock | View |
 | 24LC024-I/ST#C619652MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 41 | ₹146.28 · 41 in stock | View |
 | 24LC025-I/ST#C619655MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 54 | ₹124.30 · 54 in stock | View |
