ST

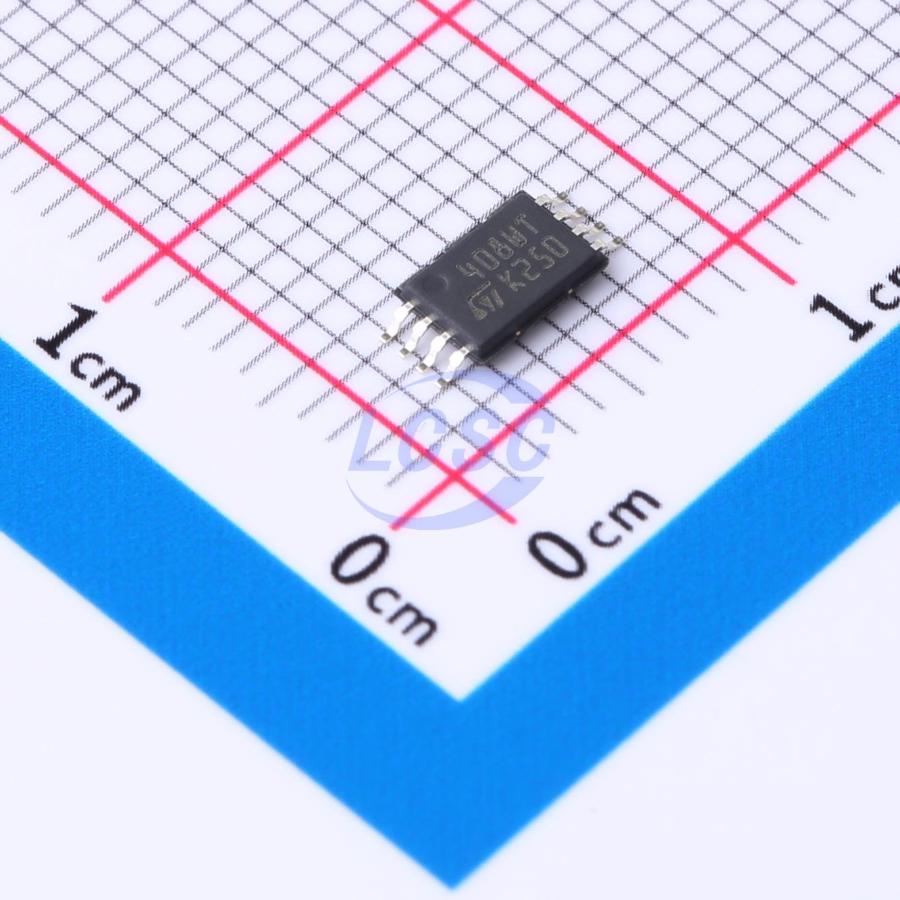

M24C08-WDW6TP
8Kbit 400kHz I2C TSSOP-8 Memory
TSSOP-8RoHSActive
8-Kbit serial I²C bus EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,470 in stock
#C915964
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.79 | ₹213.95 |
| 50+ | ₹35.39 | ₹1,769.50 |
| 150+ | ₹32.22 | ₹4,833.00 |
| 500+ | ₹28.25 | ₹14,125.00 |
| 2,500+ | ₹26.49 | ₹66,225.00 |
| 4,000+ | ₹25.43 | ₹1,01,720.00 |
5 × ₹42.79
₹213.95
excl. GST
₹252.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
M24C08-WDW6TP
₹213.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR)
- Memory Size
- 8Kbit
- Voltage - Supply
- 2.5V~5.5V;1mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.3 g
Overview
The M24C08 is an 8-Kbit I²C-compatible EEPROM organized as 1K×8 bits. The M24C08-W operates from 2.5V to 5.5V, the M24C08-R operates from 1.8V to 5.5V, and the M24C08-F operates from 1.7V to 5.5V over the full temperature range, and from 1.6V to 1.7V over a limited temperature range.
Key features
- Compatible with I²C bus modes:
- 400 kHz
- 100 kHz
- Memory array: 8 Kbit (1 Kbyte) of EEPROM
- Page size: 16 byte
- Single supply voltage:
- M24C08-W: 2.5 V to 5.5 V
- M24C08-R: 1.8 V to 5.5 V
- M24C08-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
- Write:
- Byte Write within 5 ms
- Page Write within 5 ms
- Operating temperature range:
- from -40 °C up to +85 °C
- Random and sequential Read modes
- Write protect of the whole memory array
- Enhanced ESD/Latch-Up protection
- More than 4 million Write cycles
- More than 200-years data retention
- RoHS compliant and halogen-free (ECOPACK2)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24C08-RDW6TP#C283440ST · TSSOP-8 | ST | TSSOP-8 | 32,795 | ₹12.49 · 32,795 in stock | View |
 | M24C08-FDW6TP#C2063285ST · TSSOP-8 | ST | TSSOP-8 | 75 | ₹17.41 · 75 in stock | View |
 | 24LC08BT-I/ST#C2061055MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 10 | ₹104.29 · 10 in stock | View |
 | 24LC08B-E/ST#C1352263MICROCHIP · TSSOP-8 | MICROCHIP | TSSOP-8 | 67 | ₹127.27 · 67 in stock | View |
 | CAT24C08YI-GT3#C193225onsemi · TSSOP-8 | onsemi | TSSOP-8 | 78 | ₹120.82 · 78 in stock | View |
