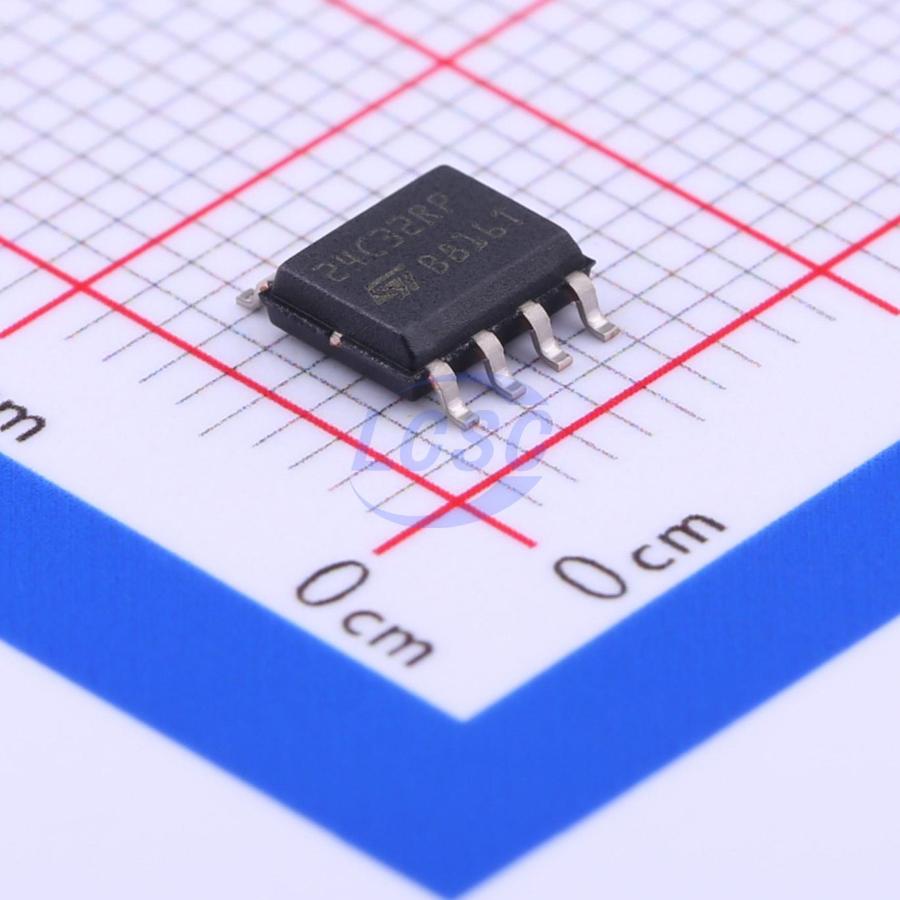

M24C32-RMN6TP

32Kbit 400kHz~1MHz I2C SOIC-8 Memory RoHS

SOIC-8ROHS3 CompliantActive

32-Kbit serial I2C bus EEPROM

Manufacturer: ST
Manufacturer part #: M24C32-RMN6TP
Store part #: C79920
Package / case: SOIC-8
Category: Memory
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,720 in stock

#C79920

Stock & price checked 40 h ago

Quantity	Unit price	Pack price
5+	₹52.17	₹260.85
50+	₹43.80	₹2,190.00
150+	₹40.22	₹6,033.00
500+	₹35.75	₹17,875.00
2,500+	₹31.55	₹78,875.00
5,000+	₹30.36	₹1,51,800.00

Quantity (min 5, multiples of 5)

5 × ₹52.17

₹260.85

excl. GST

₹307.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

M24C32-RMN6TP

₹260.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Features: Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function
Memory Size: 32Kbit
Voltage - Supply: 1.8V~5.5V;3mA
Clock Frequency: 400kHz~1MHz
Data Retention - TDR (Year): 200 Years
Write Cycle Time(tWC): 5ms
Standby Supply Current: 1uA
Write Cycle Endurance: 1,200,000 cycles
Interface: I2C

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.235 g

Overview

This product is available in multiple package options, including PDIP8 (BN), TSSOP8 (DW, 169 mil wide), SO8 (MN, 150 mil wide), UFDFPN8 (MC, DFN8-2×3 mm), UFDFPN5 (MH, DFN5-1.7×1.4 mm), WLCSP (CU), and uncut wafer.

Key features

Compatible with all I²C bus modes: 1 MHz, 400 kHz, 100 kHz
Memory array: 32 Kbit (4 Kbyte) of EEPROM
Page size: 32 byte
Additional Write lockable page (M24C32 - D order codes)
Single supply voltage: 1.7V to 5.5 V over -40°C/+85°C; 1.6V to 5.5 V over -20°C/+85°C
Write: Byte Write within 5 ms, Page Write within 5 ms
