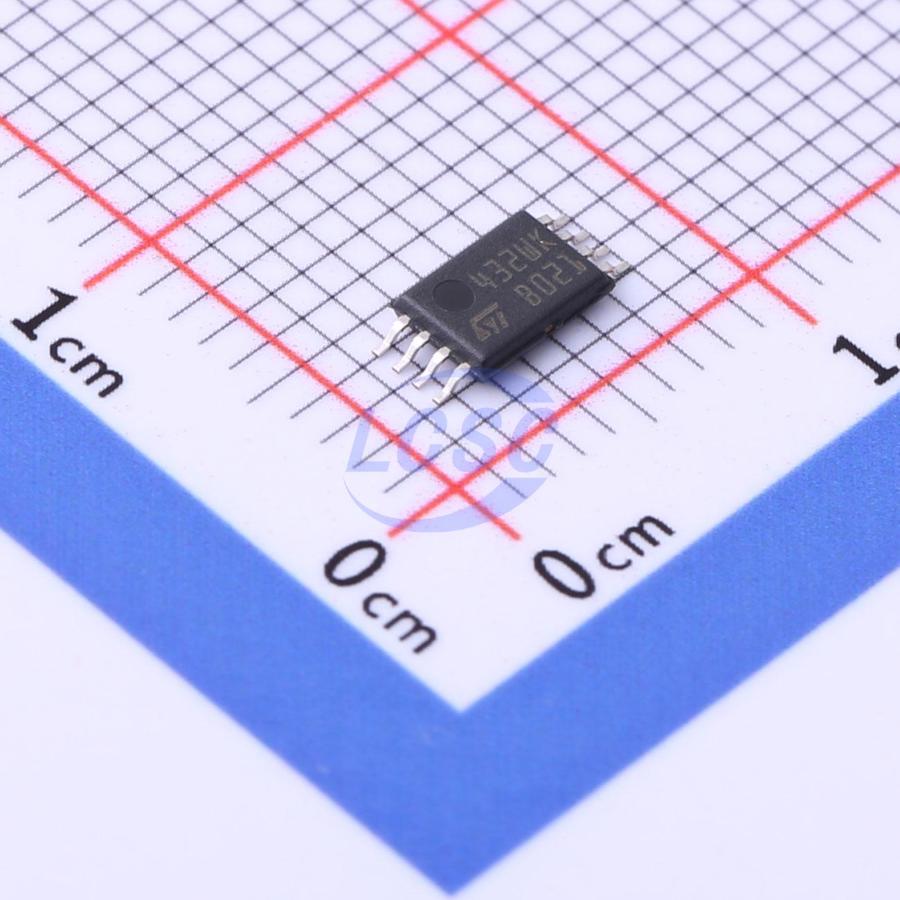

M24C32-WDW6TP

32Kbit 1MHz I2C TSSOP-8 Memory

TSSOP-8RoHSActive

32-Kbit serial I2C bus EEPROM

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,725 in stock

#C283445

Stock & price checked 7 days ago

Quantity (min 5, multiples of 5)

5 × ₹57.35

₹286.75

excl. GST

₹338.37 incl. 18% GST

M24C32-WDW6TP

₹286.75 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function
Memory Size: 32Kbit
Voltage - Supply: 2.5V~5.5V;5mA
Clock Frequency: 1MHz
Data Retention - TDR (Year): 200 Years
Write Cycle Time(tWC): 5ms
Standby Supply Current: 2uA
Write Cycle Endurance: 4,000,000 Cycles
Interface: I2C

This is a 32 Kbit EEPROM device with I²C bus support, available in multiple package options.

Compatible with all I²C bus modes: 1 MHz, 400 kHz, 100 kHz
Memory array: 32 Kbit (4 Kbyte) of EEPROM
Page size: 32 byte
Additional Write lockable page (M24C32-D order codes)
Single supply voltage: 1.7 V to 5.5 V over -40°C / +85°C; 1.6 V to 5.5 V over -20°C / +85°C
Write: Byte Write within 5 ms; Page Write within 5 ms
