ST

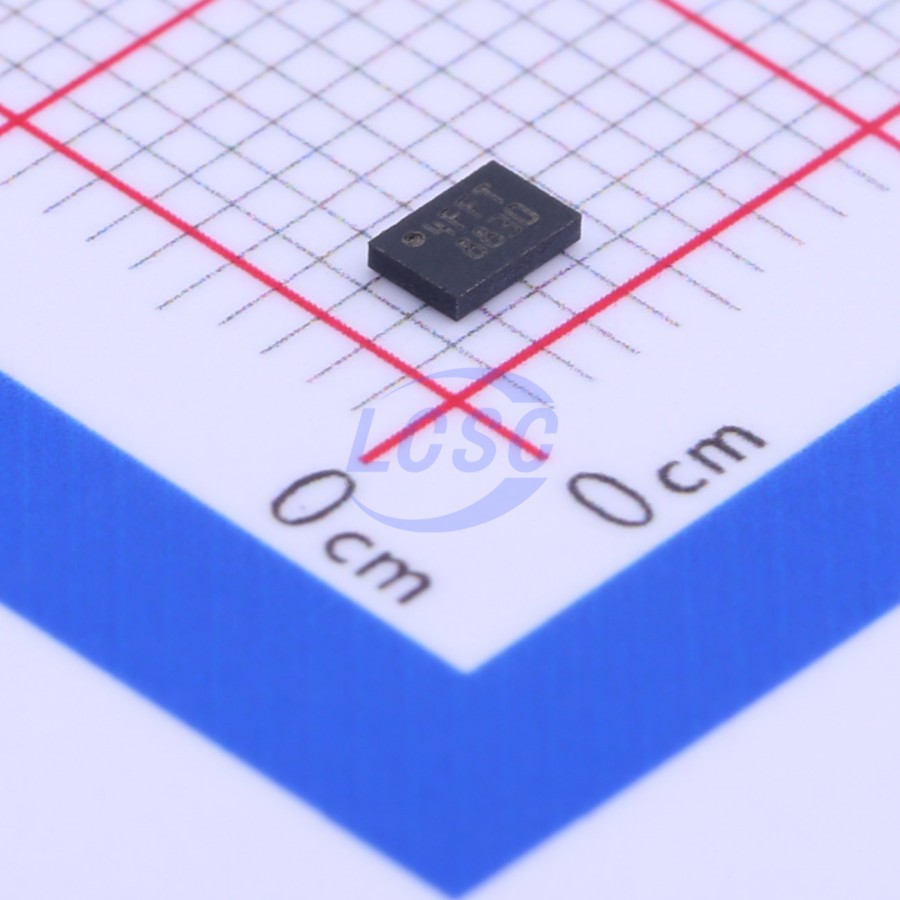

M24C64-FMC6TG
64Kbit 1MHz I2C DFN-8(2x3) Memory RoHS
DFN-8(2x3)ROHS3 CompliantActive
64-Kbit serial I2C bus EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,906 in stock
#C283446
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.52 | ₹74.52 |
| 10+ | ₹59.31 | ₹593.10 |
| 30+ | ₹51.72 | ₹1,551.60 |
| 100+ | ₹44.11 | ₹4,411.00 |
| 500+ | ₹39.77 | ₹19,885.00 |
| 1,000+ | ₹37.37 | ₹37,370.00 |
1 × ₹74.52
₹74.52
excl. GST
₹87.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
M24C64-FMC6TG
₹74.52 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.113 g
Overview
This is an EEPROM storage device compatible with all I²C bus modes, featuring 64 Kbit (8 Kbyte) storage capacity and supporting multiple package options, including PDIP8 (BN), TSSOP8 (DW, 169 mil width), SO8 (MN, 150 mil width), UFDFPN8 (MC, DFN8 - 2×3 mm), UFDFPN5 (MH, DFN5 - 1.7×1.4 mm), WLCSP (CS), Thin WLCSP (CT), WLCSP (CU), and uncut wafer (each die individually tested).
Key features
- PDIP8 (BN)
- Compatible with all I²C bus modes: 1 MHz, 400 kHz, 100 kHz
- Memory array: 64 Kbit (8 Kbyte) of EEPROM
- Page size: 32 byte
- Additional Write lockable page (M24C64 - D order codes)
- Single supply voltage: 1.7 V to 5.5 V over -40°C / +85°C, 1.6 V to 5.5 V over 0°C / +85°C
- Write: Byte Write within 5 ms, Page Write within 5 ms
- Random and sequential Read modes
- Write protect of the whole memory array
- Enhanced ESD/Latch - Up protection
- More than 4 million Write cycles
- More than 200 - years data retention
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24FC64-I/MC#C612223MICROCHIP · TDFN-8-EP(2x3) | MICROCHIP | TDFN-8-EP(2x3) | 10 | ₹116.50 · 10 in stock | View |
 | AT24CS64-MAHM-T#C2061553MICROCHIP · UDFN-8-EP(2x3) | MICROCHIP | UDFN-8-EP(2x3) | 319 | ₹99.74 · 319 in stock | View |
 | 24FC64T-I/MNY#C1349386MICROCHIP · TDFN-8-EP(2x3) | MICROCHIP | TDFN-8-EP(2x3) | 4 | ₹129.30 · 4 in stock | View |
 | AT24C64D-MAHM-T#C2653494MICROCHIP · UDFN-8L-EP(2x3) | MICROCHIP | UDFN-8L-EP(2x3) | 33 | ₹119.80 · 33 in stock | View |
 | FT24C64A-ENR-T#C232886FMD(Fremont Micro Devices) · DFN-8-EP(3x2) | FMD(Fremont Micro Devices) | DFN-8-EP(3x2) | 2,865 | ₹24.63 · 2,865 in stock | View |
