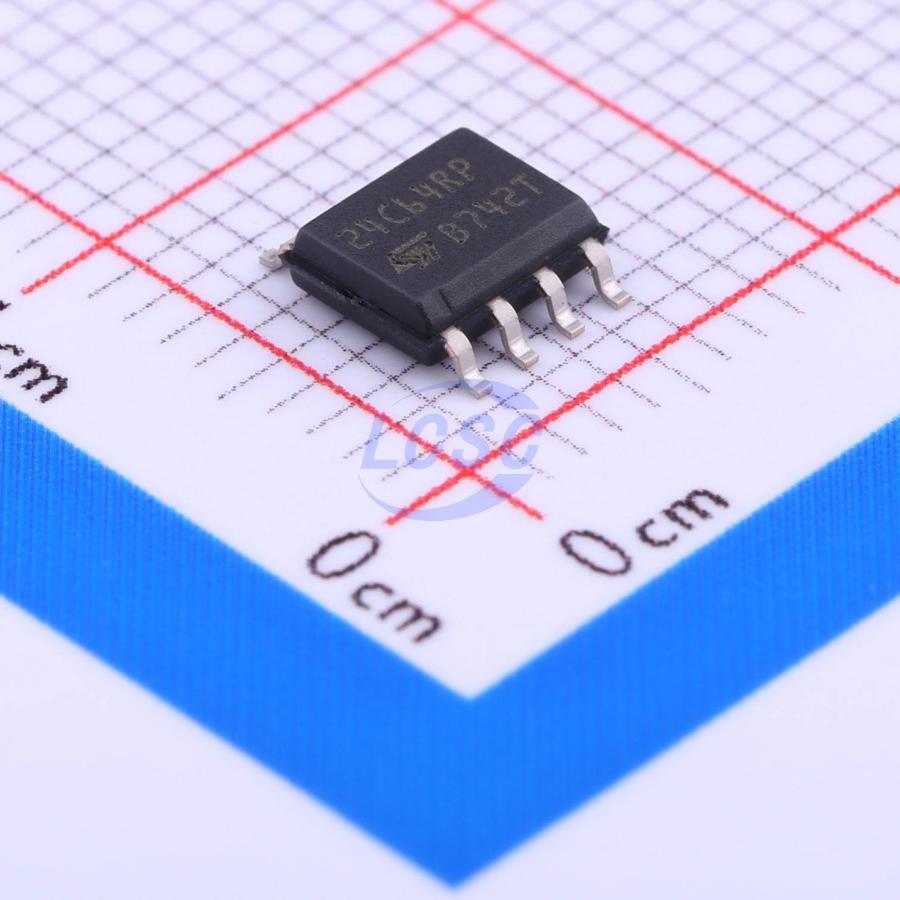

M24C64-RMN6TP
64Kbit 1MHz I2C SOIC-8 Memory RoHS
64-Kbit serial I2C bus EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,45,275 in stock
#C79988
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.98 | ₹99.90 |
| 50+ | ₹15.35 | ₹767.50 |
| 150+ | ₹13.10 | ₹1,965.00 |
| 500+ | ₹11.09 | ₹5,545.00 |
| 2,500+ | ₹10.53 | ₹26,325.00 |
| 5,000+ | ₹10.20 | ₹51,000.00 |
5 × ₹19.98
₹99.90
excl. GST
₹117.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
M24C64-RMN6TP
₹99.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.8V~5.5V;2.5mA
- Clock Frequency
- 1MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
This product is an EEPROM with I²C interface, available in multiple package types, including PDIP8 (BN), TSSOP8 (DW, 169 mil wide), SO8 (MN, 150 mil wide), UFDFPN8 (MC), UFDFPN5 (MH), WLCSP (CS), thin WLCSP (CT), WLCSP (CU), and uncut wafer. Certain package variants adopt ECOPACK technology, such as PDIP8 ECOPACK1®, SO8 ECOPACK2®, TSSOP8 ECOPACK2®, UFDFPN ECOPACK2®, and WLCSP ECOPACK2®; each die on the uncut wafer is individually tested.
Key features
- Compatible with all I²C bus modes: 1 MHz, 400 kHz, 100 kHz
- Memory array: 64 Kbit (8 Kbyte) of EEPROM Page size: 32 byte Additional Write lockable page (M24C64-D order c0des)
- Single supply voltage: 1.7 V to 5.5 V over -40°C / +85°C, 1.6 V to 5.5 V over 0°C / +85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | M24C64-RMN6P#C1349364ST · SOIC-8 | ST | SOIC-8 | 1,455 | ₹69.67 · 1,455 in stock | View |
 | M24C64-UFMN6TP#C44989490ST · SO-8 | ST | SO-8 | 50 | ₹100.61 · 50 in stock | View |
 | M24C64-FMN6TP#C143943ST · SO-8 | ST | SO-8 | 780 | ₹32.29 · 780 in stock | View |
 | M24C64-DFMN6TP#C2061337ST · SOP-8 | ST | SOP-8 | 2,520 | ₹42.60 · 2,520 in stock | View |
 | 24C64BN(XBLW)#C18723547XBLW · SOP-8 | XBLW | SOP-8 | 9,345 | ₹11.05 · 9,345 in stock | View |
