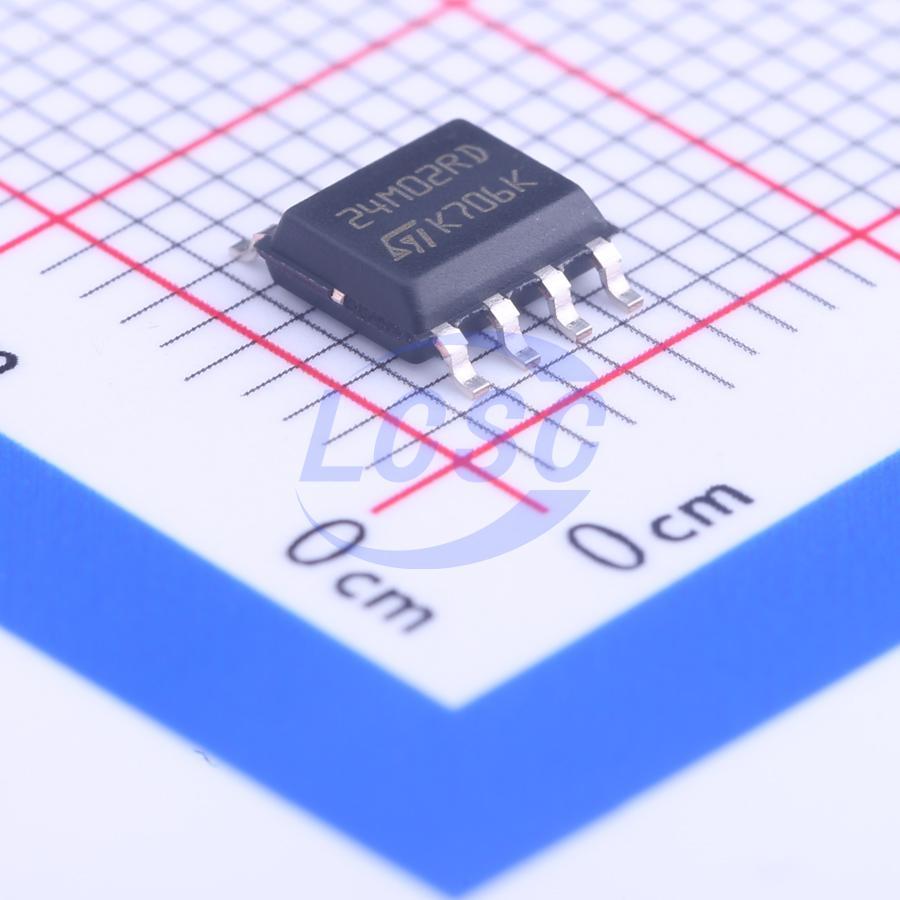

M24M02-DRMN6TP
2Mbit 1MHz I2C SOIC-8 Memory RoHS
2-Mbit serial I2C bus EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,657 in stock
#C115042
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹206.19 | ₹206.19 |
| 10+ | ₹181.63 | ₹1,816.30 |
| 30+ | ₹158.39 | ₹4,751.70 |
| 100+ | ₹141.01 | ₹14,101.00 |
| 500+ | ₹134.06 | ₹67,030.00 |
| 1,000+ | ₹130.37 | ₹1,30,370.00 |
1 × ₹206.19
₹206.19
excl. GST
₹243.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
M24M02-DRMN6TP
₹206.19 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function
- Memory Size
- 2Mbit
- Voltage - Supply
- 1.8V~5.5V;2.5mA
- Clock Frequency
- 1MHz
- Access Time
- 450ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 10ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- 3A991B1B1
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.575 g
Overview
The M24M02-DR is a 2 Mbit |²C -compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 256 Kx8 bits. The M24M02-DR can operate with a supply voltage from 1.8 V to 5.5 V over an ambient temperature range of -40 ℃ /+85 ℃ The M24M02-DR offers an additional page, named the Identification Page (256 byte). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.
Key features
- Compatible with all I²C bus modes: 1 MHz, 400 kHz, 100 kHz
- Memory array: 2 Mbit (256 Kbyte) of EEPROM
- Page size: 256 byte
- Additional Write lockable page
- Single supply voltage: 1.8 V to 5.5 V over -40 ℃ /+85 ℃
- Unsawn wafer
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24CM02-SSHD-B#C220680MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 3 | ₹594.34 · 3 in stock | View |
 | AT24CM02-SSHM-T-TUDI#C36533661Tudi · SOP-8 | Tudi | SOP-8 | 648 | ₹239.81 · 648 in stock | View |
 | AT24CM02-SSHD-T-TUDI#C36533662Tudi · SOP-8 | Tudi | SOP-8 | 1,432 | ₹423.66 · 1,432 in stock | View |
 | M24M02-DRMN6TP-TUDI#C36533665Tudi · SOP-8 | Tudi | SOP-8 | 1,174 | ₹124.68 · 1,174 in stock | View |
 | AT24CM02-SSHD-T#C461562MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 4,728 | ₹437.33 · 4,728 in stock | View |
