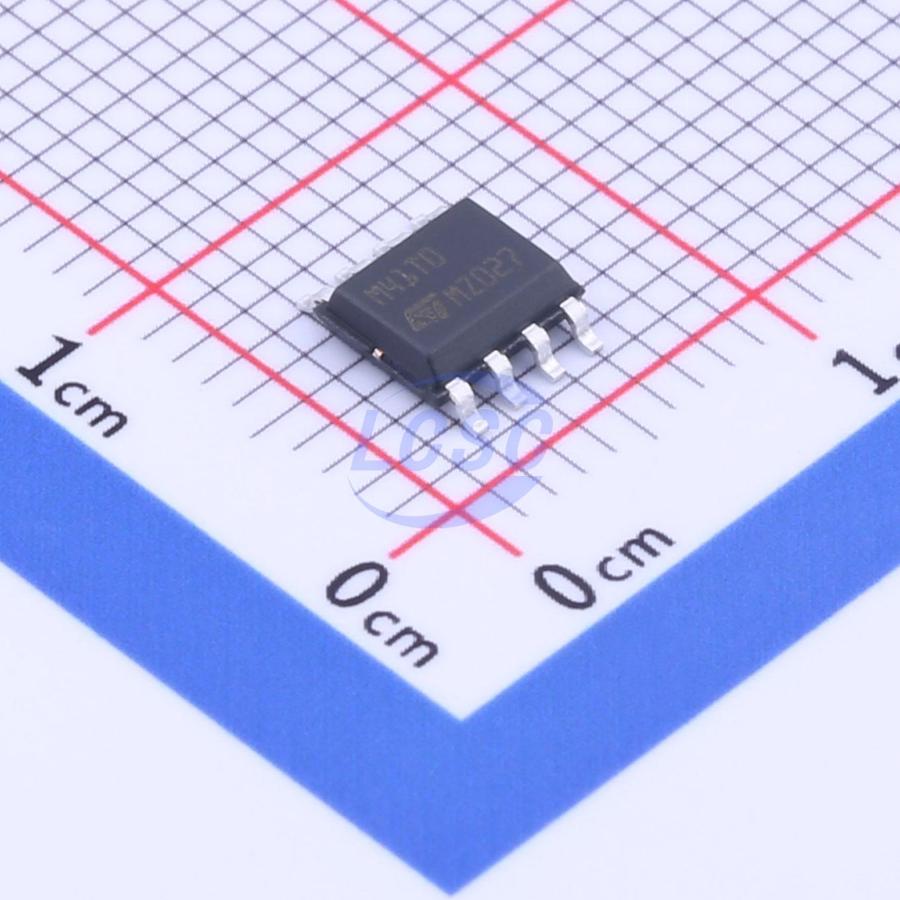

M41T0M6F

The M41T0 real-time clock is a low power serial real-time clock with a built-in 32.768 kHz oscillator (external crystal controlled). Eight registers are used for the clock/calendar function and are configured in binary coded decimal (BCD) format. Addresses and data are transferred serially via a two-line bidirectional bus. The built-in address register is incremented automatically after each WRITE or READ data byte. The M41T0 is supplied in 8-lead plastic small outline package

Key features

• Counters for seconds, minutes, hours, day, date, month, years, and century
• 32 KHz crystal oscillator integrating load capacitance (12.5 pF) providing exceptional oscillator stability and high crystal series resistance operation
• Oscillator stop detection monitors clock operation
• Serial interface supports I²C bus (400 kHz protocol)
• Low standby current 0.9 μA (typ at 3 V)
• 2.0 to 5.5 V clock operating voltage
• Special software programmable output
• Operating temperature of -40 to 85 °C
