UTC

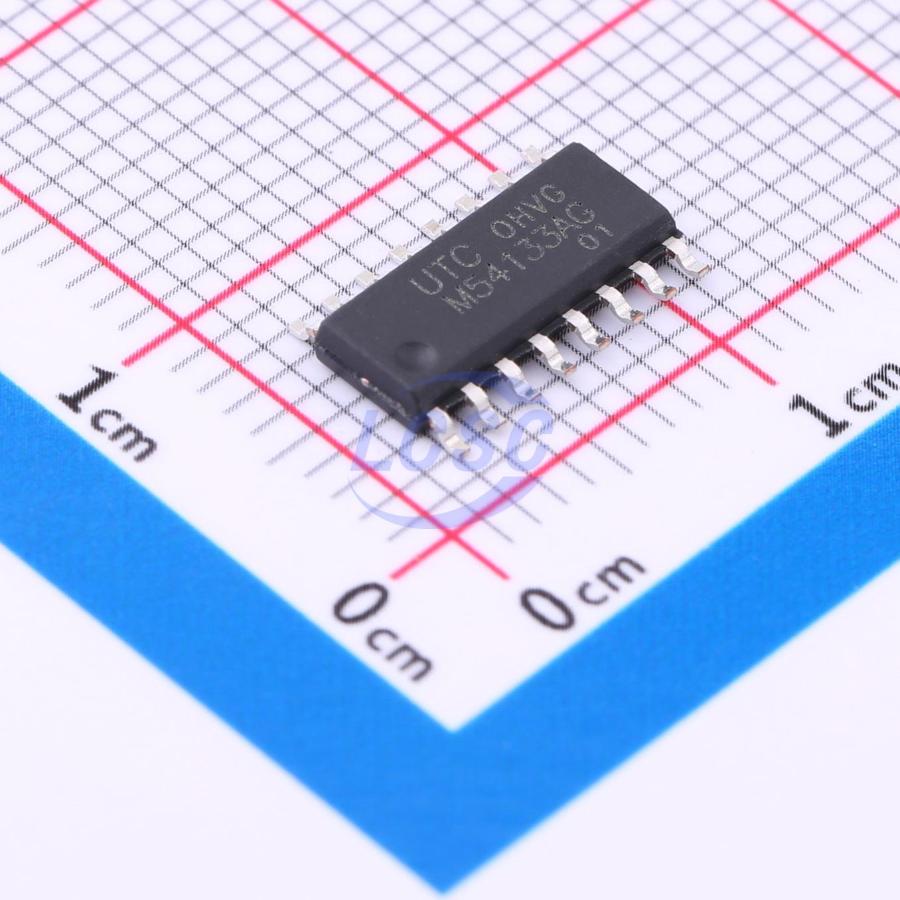

M54133AG-S16-R

SOP-16 Power Management - Specialized

SOP-16RoHSActive

LINEAR INTEGRATED CIRCUIT EARTH LEAKAGE CURRENT DETECTOR

Manufacturer: UTC
Manufacturer part #: M54133AG-S16-R
Store part #: C73281
Package / case: SOP-16
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,500 in stock

#C73281

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹52.15	₹260.75
50+	₹41.22	₹2,061.00
150+	₹36.54	₹5,481.00
500+	₹30.69	₹15,345.00
2,500+	₹28.10	₹70,250.00
5,000+	₹26.54	₹1,32,700.00

Quantity (min 5, multiples of 5)

5 × ₹52.15

₹260.75

excl. GST

₹307.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

M54133AG-S16-R

₹260.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Current trip function
Operating Temperature: -20℃~+85℃
Tripping Voltage: 11.5mV
Voltage - Supply: 7V~12V
Supply Current: 520uA~700uA;560uA~740uA;480uA~660uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.332 g

Overview

The UTC M54133A is a semiconductor integrated circuit developed for use in high-speed earth leakage breakers incorporating functions to protect against voltage surges and inverter noise.

Key features

Enhanced immunity to lightning surge and lightning impulse false tripping, with dual-count system.
Enhanced immunity to inverter noise false tripping, with built-in (low-power) op-amp for active low-pass filter, improving high-frequency and high-order harmonic superposition performance.
Built-in internal delay function.
External capacitor-programmable delay time.
High input sensitivity: typical VT = 11.5mVrms.
Low power consumption (at R1REF = 180kΩ, standby: typical IS = 610μA).
High-stability design with circuit immune to supply voltage/ambient temperature variations.
