M62568DBVR

M62568DBVR is a constant-frequency, current-mode step-down converter. The device integrates both a main switch and a synchronous rectifier, eliminating the need for an external Schottky diode while achieving high efficiency. It is well suited for portable devices powered by a single-cell lithium-ion battery. The output voltage is adjustable down to 0.6V. The M62568DBVR can also operate at 100% duty cycle in low dropout conditions, extending battery life in portable systems. The device offers two operating modes: PWM control and PFM mode switch control, enabling high efficiency over a wider load range. The M62568DBVR is available in a thin 5-pin SOT package with an adjustable output version.

Applications

• Cellular phones and smartphones
• Wireless and DSL modems
• Personal digital assistants
• Portable instruments
• Digital still and video cameras
• Digital televisions

Key features

• High efficiency: up to 96%
• 1.5MHz constant frequency operation
• 1A output current
• No Schottky diode required
• 2V to 6V input voltage range
• Output voltage as low as 0.6V
• PFM mode for high efficiency at light load
• 100% duty cycle at low dropout
• Low quiescent current: 10μA
• Current mode control with slope compensation for excellent line and load transient response
• Short-circuit protection
• Thermal fault protection
• Inrush current limiting and soft-start
• <1μA shutdown current

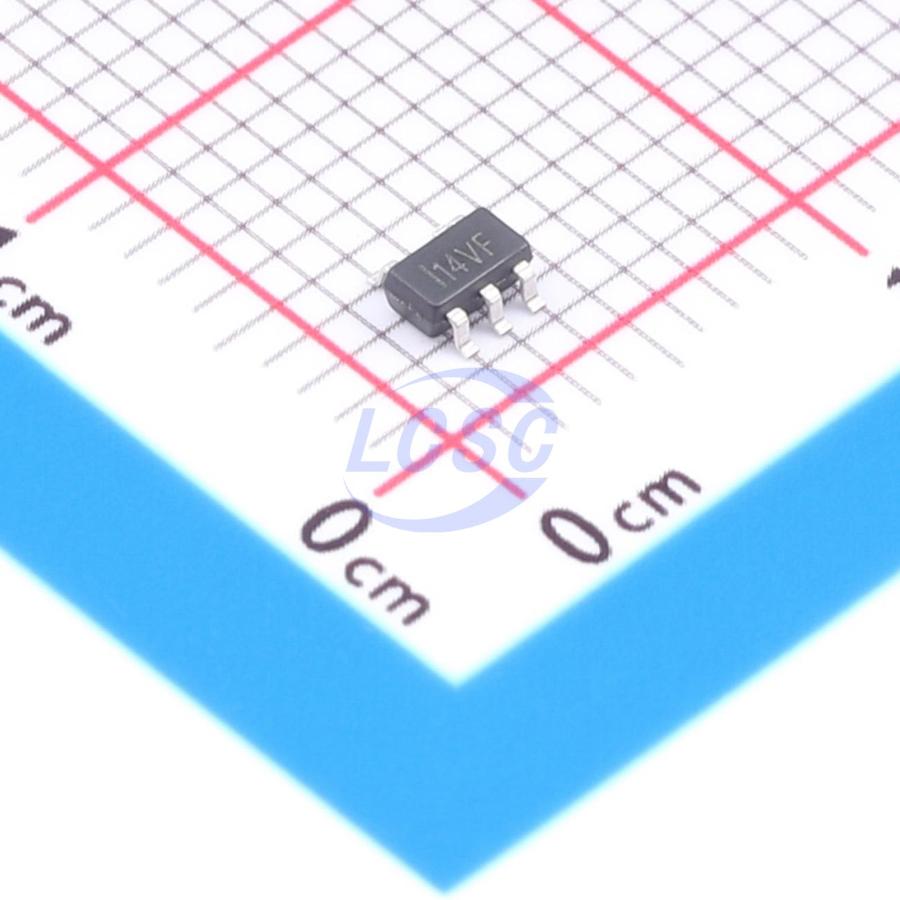

• SOT23-5 package
