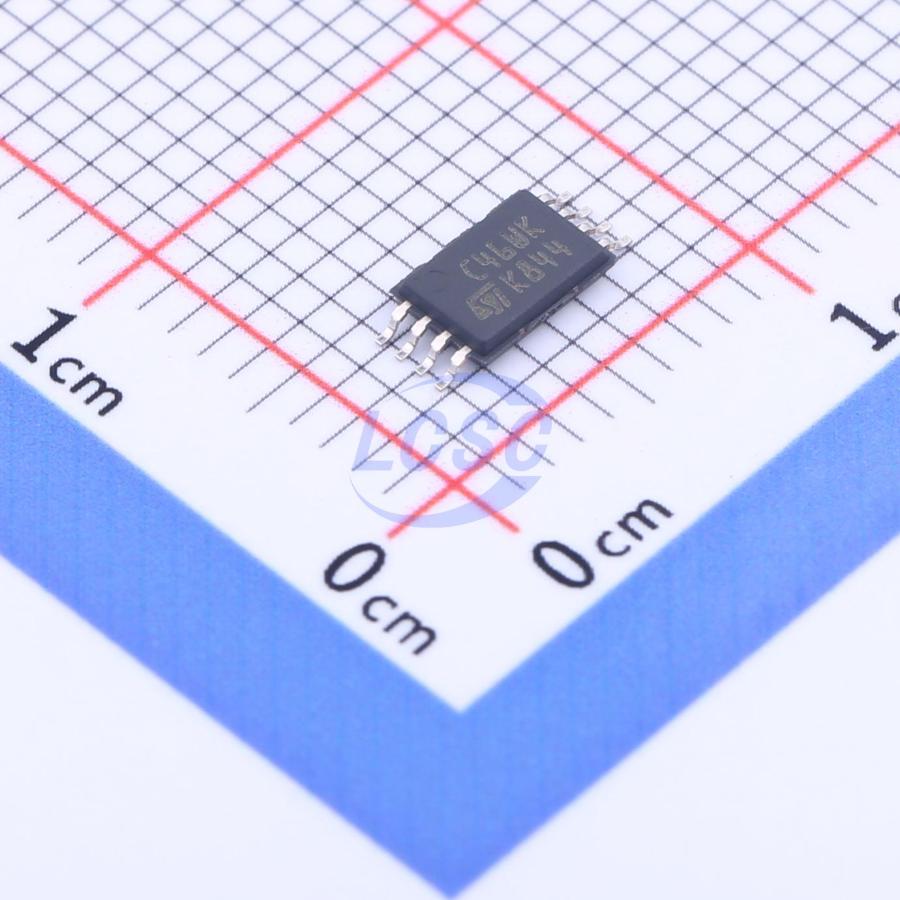

M93C46-WDW6TP
1Kbit 2MHz TSSOP-8 Memory
MICROWIRE serial access EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,129 in stock
#C2061219
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹43.54 | ₹43.54 |
| 10+ | ₹38.54 | ₹385.40 |
| 30+ | ₹36.36 | ₹1,090.80 |
| 100+ | ₹33.75 | ₹3,375.00 |
| 500+ | ₹32.66 | ₹16,330.00 |
| 1,000+ | ₹31.79 | ₹31,790.00 |
1 × ₹43.54
₹43.54
excl. GST
₹51.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
M93C46-WDW6TP
₹43.54 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 1Kbit
- Voltage - Supply
- 2.5V~5.5V;2mA
- Clock Frequency
- 2MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 4,000,000 Cycles
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.23 g
Overview
The M93C46 (1 Kbit), M93C56 (2 Kbit), M93C66 (4 Kbit), M93C76 (8 Kbit) and M93C86 (16 Kbit) are electrically erasable programmable memory (EEPROM) devices accessed through the MICROWIRE™ bus protocol. The memory array can be configured either in bytes (x8b) or in words (x16b). The M93Cx6-W devices operate within a voltage supply range from 2.5 V to 5.5 V and the M93Cx6-R devices operate within a voltage supply range from 1.8 V to 5.5 V. All these devices operate with a clock frequency of 2 MHz (or less), over an ambient temperature range of - 40 ℃ / +85 ℃.
Key features
- Industry standard MICROWIRE™ bus
- Single supply voltage: 2.5 V to 5.5 V for M93Cx6-W, 1.8 V to 5.5 V for M93Cx6-R
- Dual organization: by word (x16) or byte (x8)
- Programming instructions that work on: byte, word or entire memory
- Self-timed programming cycle with auto-erase: 5 ms
- READY/BUSY signal during programming
- 2 MHz clock rate
- Sequential read operation
- Enhanced ESD/latch-up behavior
- More than 4 million write cycles
- More than 200-year data retention
