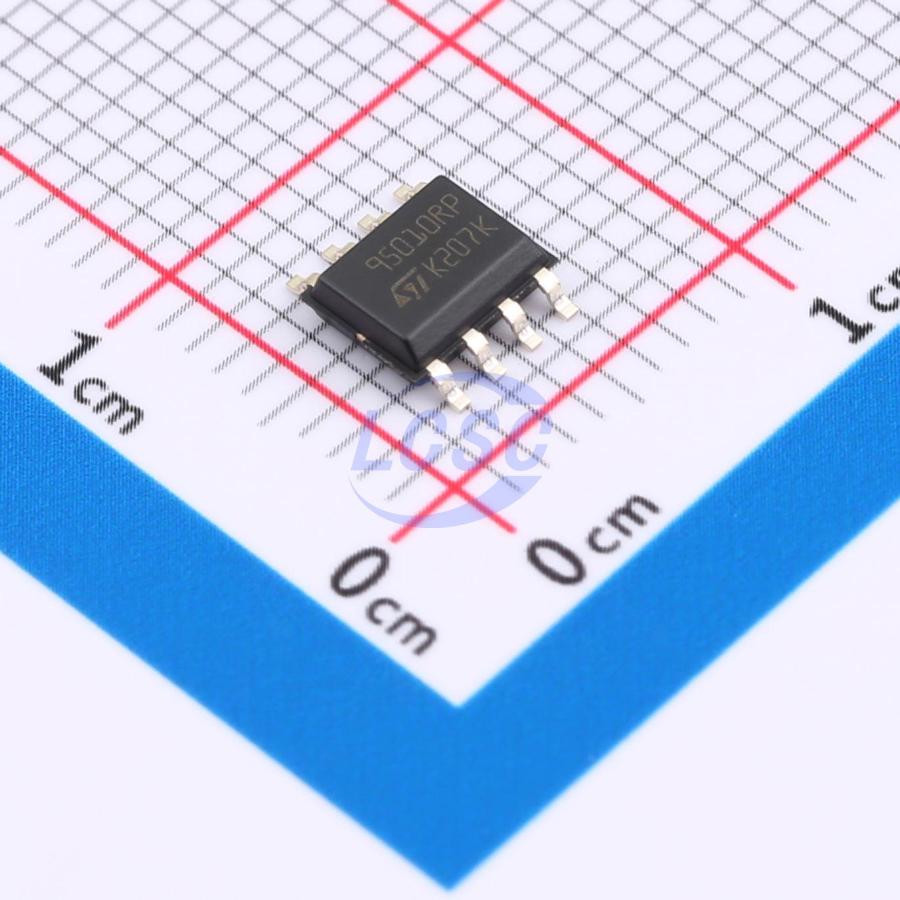

M95010-RMN6TP
1Kbit 1.8V~5.5V 20MHz SPI SO-8 Memory RoHS
Serial SPI bus EEPROM with high-speed clock
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,585 in stock
#C2061643
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.26 | ₹226.30 |
| 50+ | ₹34.61 | ₹1,730.50 |
| 150+ | ₹30.05 | ₹4,507.50 |
| 500+ | ₹24.34 | ₹12,170.00 |
| 2,500+ | ₹21.80 | ₹54,500.00 |
| 5,000+ | ₹20.28 | ₹1,01,400.00 |
5 × ₹45.26
₹226.30
excl. GST
₹267.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
M95010-RMN6TP
₹226.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in write enable latch (WEL);Software write protection function
- Memory Size
- 1Kbit
- Voltage - Supply
- 1.8V~5.5V
- Clock Frequency
- 20MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.278 g
Overview
The M95010/ M95020/M95040 devices (M950x0) are electrically erasable programmable memories (EEPROMs) organized as 128/256/512x8 bits respectively, accessed through the SPI bus. The M950x0-W can operate with a supply voltage from 2.5 V to 5.5 V, the M950x0-R can operate with a supply voltage from 1.8 V to 5.5 V, and the M950x0-DF can operate with a supply voltage from 1.7 V to 5.5 V, over an ambient temperature range of -40 ℃ /+85 ℃ The M950x0-DF offers an additional page, named the Identification Page (16 bytes). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.
Key features
- Compatible with SPl bus serial interface (Positive clock SPl modes)
- Single supply voltage: 2.5 V to 5.5 V for M950x0-W, 1.8 V to 5.5 V for M950x0-R, 1.7 V to 5.5 V for M95040-DF
- High-speed 20 MHz clock rate, 5 ms write time
- Memory array: 1/2/4 Kbit (128/256/512 bytes) of EEPROM
- Page size: 16 bytes
- Write protection by block: 1/4, 1/2 or whole memory
- Additional Write lockable Page (Identification page)
- Enhanced ESD protection
- More than 4 million write cycles
- More than 200-year data retention
- Packages RoHS-compliant and Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT25010B-SSHL-T#C30499MICROCHIP · SOP-8 | MICROCHIP | SOP-8 | 2,741 | ₹51.66 · 2,741 in stock | View |
 | CAT25010VI-GT3#C233777onsemi · SOIC-8 | onsemi | SOIC-8 | 212 | ₹79.10 · 212 in stock | View |
 | AT25010B-SSHL-B#C1348865MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | On request | Price on request | Quote |
| AT25010AN-10SU-1.8-T#C19304217MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | On request | Price on request | Quote | |
| CAT25010VI-GT3A#C6762700onsemi · SOIC-8 | onsemi | SOIC-8 | On request | Price on request | Quote | |
