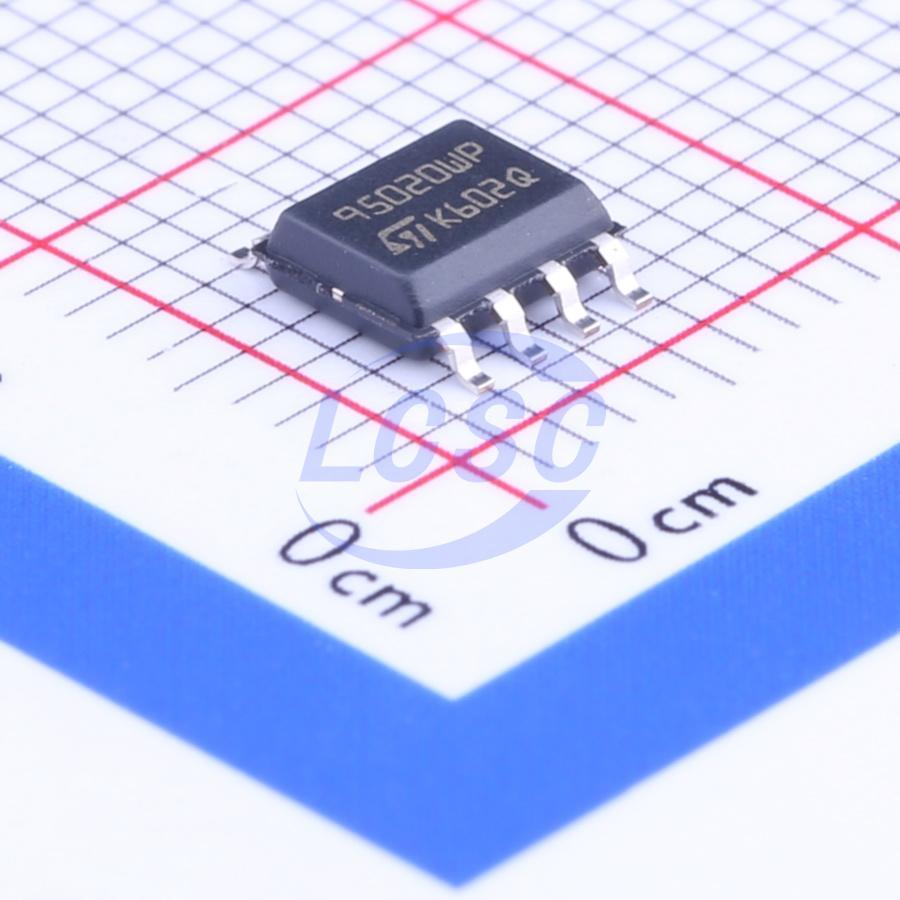

M95020-WMN6TP

The M95010/ M95020/M95040 devices (M950x0) are electrically erasable programmable memories (EEPROMs) organized as 128/256/512x8 bits respectively, accessed through the SPI bus. The M950x0-W can operate with a supply voltage from 2.5 V to 5.5 V, the M950x0-R can operate with a supply voltage from 1.8 V to 5.5 V, and the M950x0-DF can operate with a supply voltage from 1.7 V to 5.5 V, over an ambient temperature range of -40 ℃ /+85 ℃ The M950x0-DF offers an additional page, named the Identification Page (16 bytes). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.

Key features

• Compatible with SPl bus serial interface (Positive clock SPl modes)
• Single supply voltage: 2.5 V to 5.5 V for M950x0-W, 1.8 V to 5.5 V for M950x0-R, 1.7 V to 5.5 V for M95040-DF
• High-speed 20 MHz clock rate, 5 ms write time
• Memory array: 1/2/4 Kbit (128/256/512 bytes) of EEPROM
• Page size: 16 bytes
• Write protection by block: 1/4, 1/2 or whole memory
• Additional Write lockable Page (Identification page)
• Enhanced ESD protection
• More than 4 million write cycles
• More than 200-year data retention
• Packages RoHS-compliant and Halogen-free
