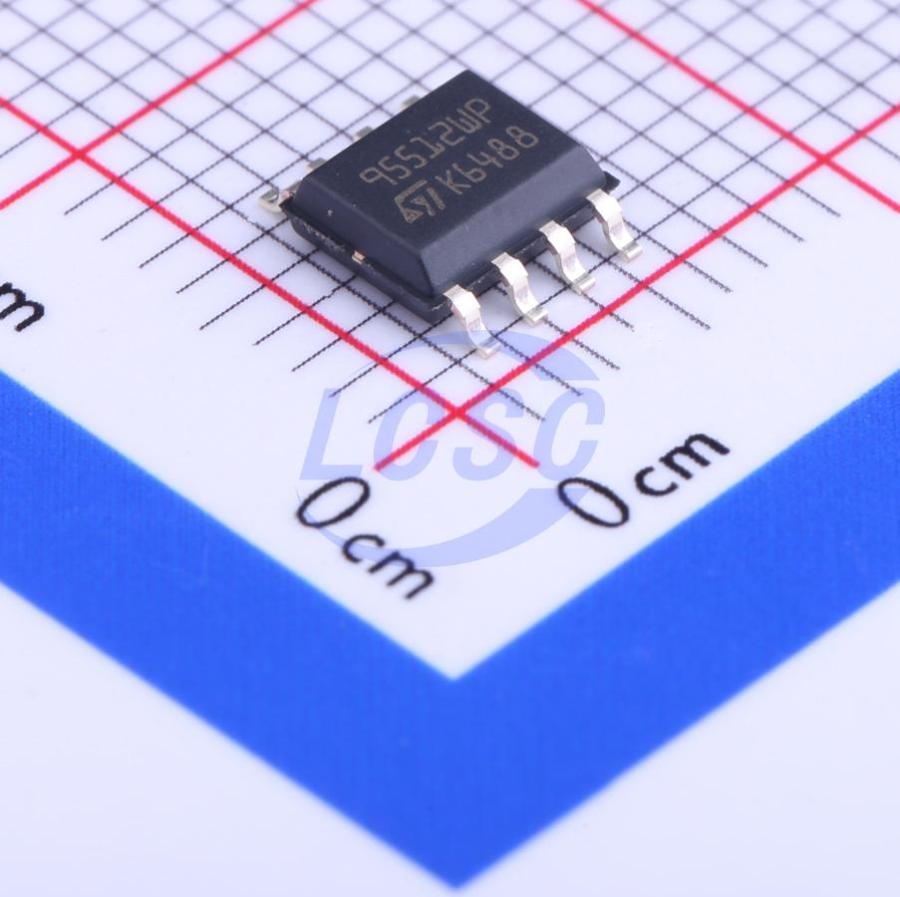

M95512-WMN6TP
512Kbit 10MHz SPI SOIC-8 Memory RoHS
512Kbit Serial SPI Bus EEPROM With High Speed Clock
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,967 in stock
#C7567
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.09 | ₹87.09 |
| 10+ | ₹70.60 | ₹706.00 |
| 30+ | ₹62.13 | ₹1,863.90 |
| 100+ | ₹53.87 | ₹5,387.00 |
| 500+ | ₹48.87 | ₹24,435.00 |
| 1,000+ | ₹46.49 | ₹46,490.00 |
1 × ₹87.09
₹87.09
excl. GST
₹102.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
M95512-WMN6TP
₹87.09 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in write enable latch (WEL);Software write protection function
- Memory Size
- 512Kbit
- Voltage - Supply
- 2.5V~5.5V;5mA
- Clock Frequency
- 10MHz
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 5uA
- Write Cycle Endurance
- 100,000 cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.235 g
Overview
These electrically erasable programmable memory (EEPROM) devices are accessed by a high speed SPI-compatible bus. The memory array is organized as 65536 × 8 bit. The device is accessed by a simple serial interface that is SPI-compatible. The bus signals are C, D and Q. The device is selected when Chip Select (S (overline)) is taken Low. Communications with the device can be interrupted using Hold (HOLD).
Key features
- Compatible with SPI Bus Serial Interface (Positive Clock SPI Modes)
- Single Supply Voltage: 2.5 to 5.5V for M95512 - W; 1.8 to 5.5V for M95512 - R
- High Speed 10MHz Clock Rate
- 5ms Write Time
- Status Register Hardware Protection of the Status Register
- BYTE and PAGE WRITE (up to 128 Bytes)
- Self - Timed Programming Cycle
- Adjustable Size Read - Only EEPROM Area
- Enhanced ESD Protection
- More than 100,000 Erase/Write Cycles
- More than 40 - Year Data Retention
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CAV25512VE-GT3#C605358onsemi · SOIC-8 | onsemi | SOIC-8 | 88 | ₹159.50 · 88 in stock | View |
| BR25A512FJ-3MGE2#C2061669ROHM · SOIC-8 | ROHM | SOIC-8 | On request | Price on request | Quote | |
| BR25G512FJ-3GE2#C2061667ROHM · SOIC-8 | ROHM | SOIC-8 | On request | Price on request | Quote | |
| S-25C512A0I-J8T1U4#C2061520ABLIC · SOP-8 | ABLIC | SOP-8 | On request | Price on request | Quote | |
