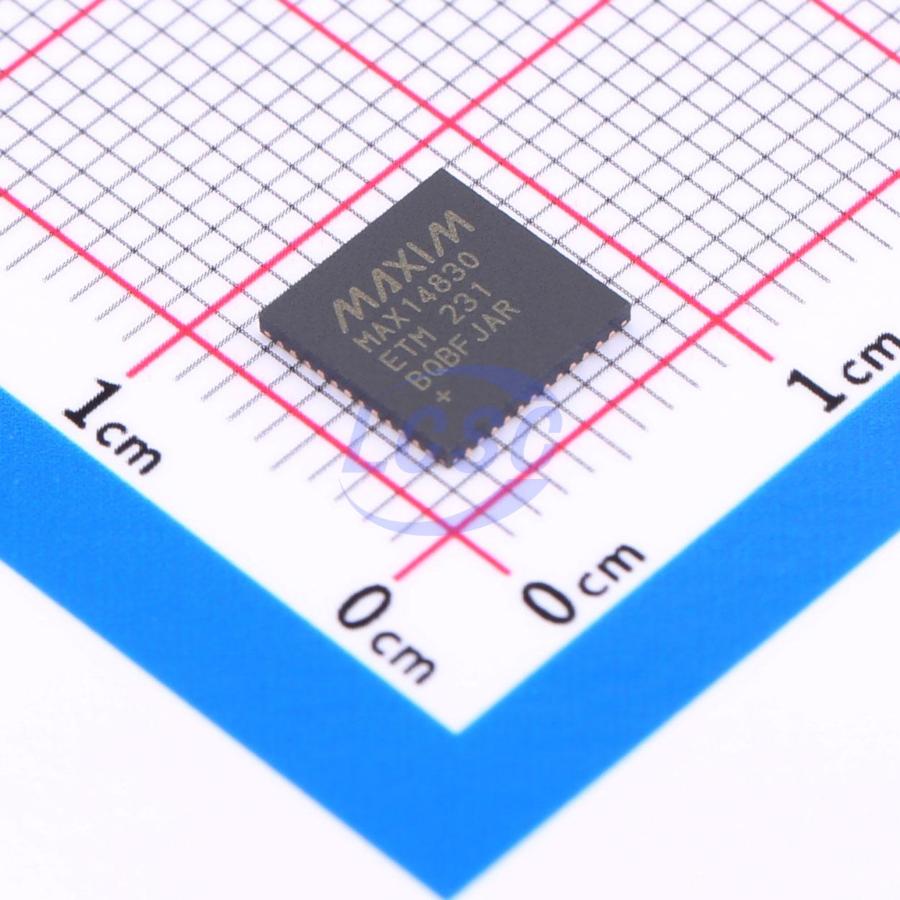

MAX14830ETM+T

TQFN-48-EP(7x7) UARTs (Universal Asynchronous Receiver Transmitter) RoHS

TQFN-48-EP(7x7)ROHS3 CompliantActive

Quad Serial UART with 128-Word FIFOs

Manufacturer: MAXIM
Manufacturer part #: MAX14830ETM+T
Store part #: C2653202
Package / case: TQFN-48-EP(7x7)
Category: UARTs (Universal Asynchronous Receiver Transmitter)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,310 in stock

#C2653202

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹2,031.72	₹2,031.72
10+	₹1,952.39	₹19,523.90
30+	₹1,815.25	₹54,457.50
100+	₹1,695.28	₹1,69,528.00

Quantity (min 1)

1 × ₹2,031.72

₹2,031.72

excl. GST

₹2,397.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MAX14830ETM+T

₹2,031.72 for 1 + GST

Specifications

Features: Hardware flow control support;Software flow control support;Fractional baud rate generator;Automatic RS-485 direction control;With automatic flow control;Auto Transceiver Direction Control;Interrupt Trigger;Configurable GPIO
Voltage - Supply: 1.71V~3.6V;2.35V~3.6V
Operating Temperature: -40℃~+85℃
Data Rate(Max): 12Mbps

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.3 g

Overview

The MAX14830 is an advanced quad universal asynchronous receiver-transmitter (UART), each UART having 128 words of receive and transmit first-in/first-out (FIFO) and a high-speed serial peripheral interface (SPI) or I2C controller interface. A PLL and fractional baud-rate generators allow a high degree of flexibility in baud-rate programming and reference clock selection. Each of the four UARTs is selected by in-band SPI/I2C addressing. Logic-level translation on the transceiver and controller interfaces allows ease of interfacing to microcontrollers, FPGAs, and transceivers that are powered by differing supply voltages. Extensive features simplify transceiver control in half-duplex communication applications. The MAX14830 features the ability to synchronize the start of individual UART’s transmission by SPI-based triggering. On-board timers allow programming of delays between transmitters as well as clock generation on GPIOs. The 128-word FIFOs have advanced FIFO control reducing host processor data flow management. The MAX14830 is available in a 48-pin TQFN (7mm x 7mm) package and is specified to operate over the extended -40°C to +85°C temperature range.

Key features

Bridges an SPI/MICROWIRE or I2C Microprocessor Bus to an Asynchronous Interface like RS-485, RS-232, or IrDASM
SIR- and MIR-Compliant IrDA Encoder/Decoder
Line Noise Indication Ensures Data Link Integrity
Deep, 128-Word Buffer and Automated Control Features Help Offload Activity on the Microcontroller
128-Word Transmit and Receive FIFOs per UART
Transmitter Synchronization Through SPI Commands
Automatic Hardware Flow Control Using RTS_ and CTS_ Outputs and Inputs
Automatic Software Flow Control (XON/XOFF)
Auto Transceiver Direction Control
Programmable Setup and Hold Times for Transceiver Control
Auto Transmitter Disable
Half-Duplex Echo Suppression
9-Bit Multidrop-Mode Data Filtering
Special Character Detection
GPIO-Based Character Detection
Four Timers Routed to GPIOs
16 Flexible GPIOs with 20mA Drive Capability
Saves Board Space
TQFN (7mm x 7mm) Package
Fast Data Rates Allow Maximum System Flexibility Across Interface Standards
6Mbaud (max) Data Rate in 16x Sampling Mode
12/24Mbaud (max) Data Rate in 2x/4x Rate Modes
High-Resolution Programmable Baud-Rate
SPI Up to 26MHz Clock Rate
Fast Mode Plus (Fm+) I2C Up to 1MHz
Integrated Internal Oscillator Eliminates the Need for an External Oscillator and Reduces the BOM Cost
Fractional Baud-Rate Generators, Predivider, and Phase-Locked Loop (PLL)
Logic-Level Translation Down to 1.61V on the Controller and Transceiver Interfaces Ensures System Compatibility
Register Compatible with MAX3107, MAX3108, MAX3109
