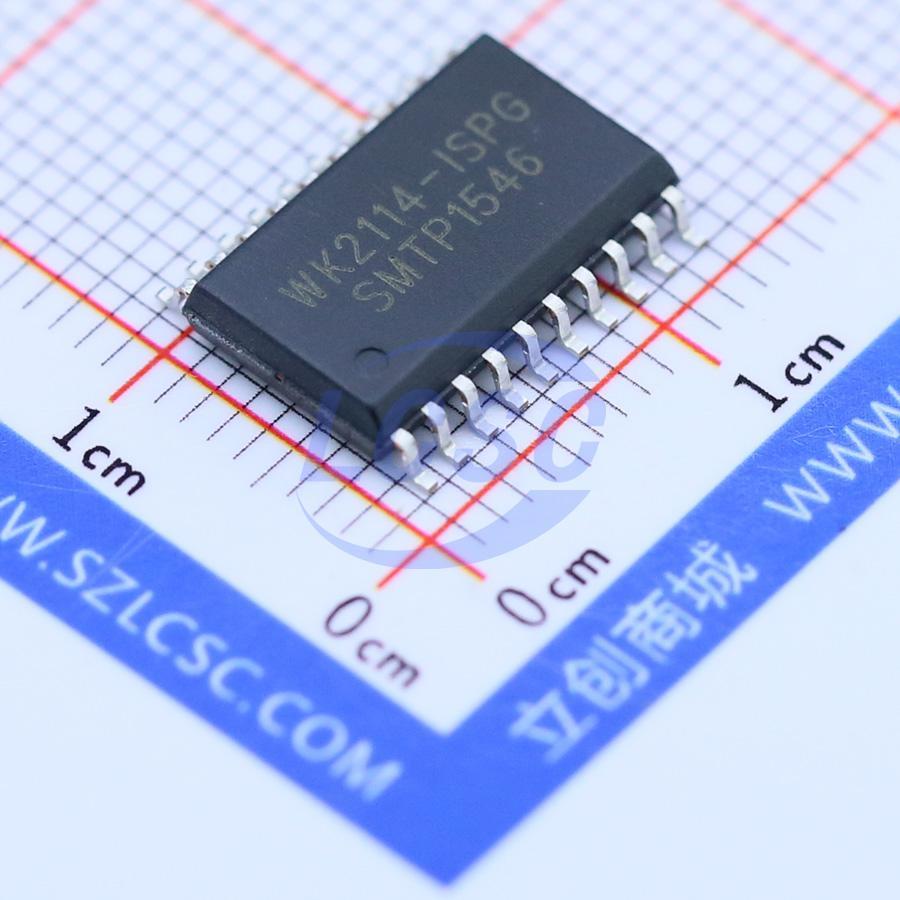

WK2114-ISPG

WK2114 is a 4-channel UART device with a UART interface. The WK2114 expands a standard 3-wire asynchronous serial port (UART) into 4 enhanced-function serial ports (UART). The master interface UART can be configured via pin settings to operate in infrared communication mode during data transmission. The expanded sub-channel UARTs feature the following capabilities: - Baud rate, word length, and parity format of each sub-channel UART are independently configurable, with a maximum communication rate of 2Mbps. - Each sub-channel can be independently configured to operate in IrDA infrared communication mode. - Each sub-channel has independent 256-byte TX/RX FIFOs, with programmable interrupt trigger points per user requirements. The WK2114 adopts a SOP20L RoHS-compliant lead-free package, supports a wide operating voltage range of 2.5~5.0V, and features configurable auto sleep/wake-up functionality.

Applications

• Multi-port serial server / multi-port serial card
• Wireless data transmission via 2G/3G/4G
• Telematics platform / vehicle GPS positioning system
• Automatic Meter Reading (AMR) system
• POS / tax-control POS / financial terminals
• DSP / embedded systems

Key features

• General Features:
• Low-power design with configurable auto-sleep and auto-wake modes (µs-level wake-up)
• Master UART supports baud rate auto-detection
• Wide operating voltage range: 2.5V~5.0V
• Simplified configuration registers and control words for easy and reliable operation
• Available in industrial-grade and commercial-grade versions
• High-speed CMOS process; sub-UART maximum data rate up to 2Mbps@5V, 1.5Mbps@3.3V, 1Mbps@2.5V
• Lead-free SOP20 package compliant with RoHS environmental regulations
• Extended Sub-Channel UART Features:
• Independent sub-channel UART configuration — high-speed and flexible:
• Each sub-UART is full-duplex and can be individually enabled/disabled via software
• Independently configurable baud rate; sub-UART maximum rate up to 2Mbps
• Each sub-UART character format — data length, stop bits, and parity mode — independently configurable
• Comprehensive sub-UART status query supports individual sub-UART software reset
• FIFO Features:
• Each sub-UART has an independent 256-level transmit FIFO with programmable trigger level
• Each sub-UART has an independent 256-level receive FIFO with programmable trigger level
• Software FIFO enable and flush
• FIFO status and counter output
• Error Detection:
• Supports parity error, framing error, Line-Break error, and overflow error detection
• Built-in IrDA SIR-compliant infrared transceiver codec; transfer speed up to 115.
• Interrupt Features:
• Sub-UART receive FIFO timeout interrupt
• Line-Break error interrupt support
• Master UART Interface Features:
• High-speed UART with wide operating voltage, 4-channel, 256-level FIFO
• Master interface is a standard 3-wire UART (RX, TX, GND) — no additional address signals or control lines required
• Baud rate auto-detection technology; maximum speed up to 2Mbps
• Selectable odd parity, even parity, and no-parity modes
• Industry-first address-line-free serial port expansion method, implementing multi-UART expansion via the chip's built-in protocol processor
• Master UART interface configurable to infrared mode via pin setting
• Supports up to 16-byte continuous transmit/receive
