MAXIMDatasheet (PDF)

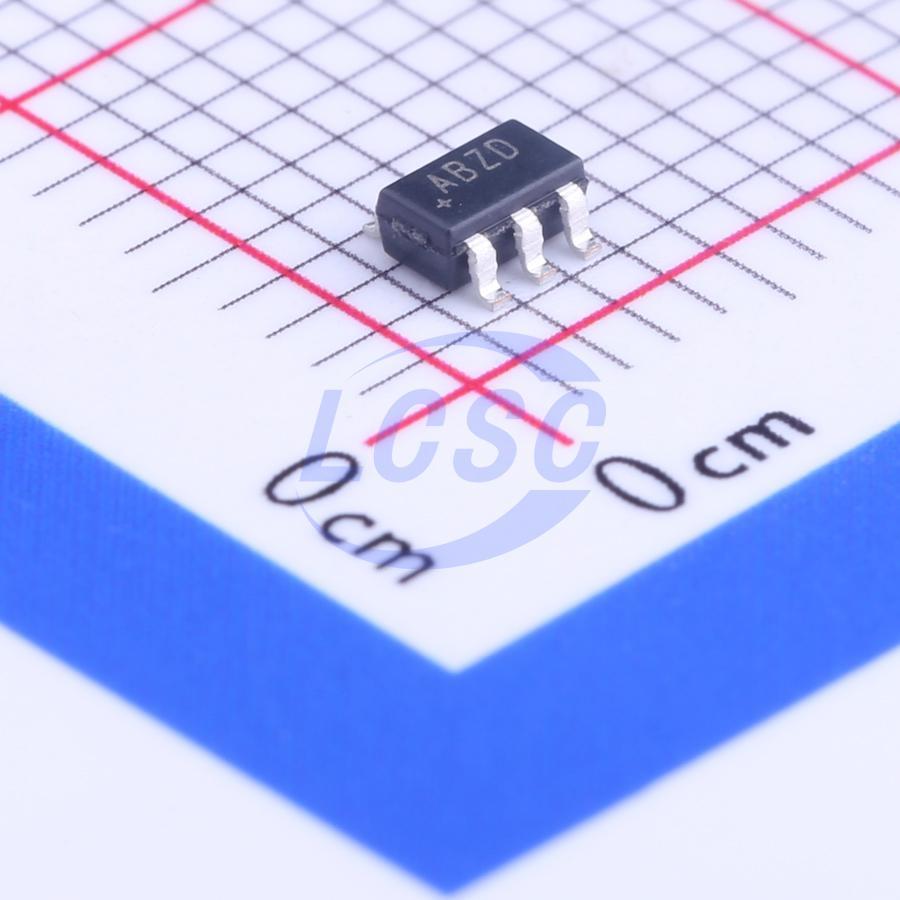

MAX1615EUK+T
Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
Input 28V Output 3.3V 5V 30mA
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX1615EUK+T
- Store part #
- C52770
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,024 in stock
#C52770
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹294.01 | ₹294.01 |
| 10+ | ₹253.25 | ₹2,532.50 |
| 30+ | ₹227.87 | ₹6,836.10 |
| 100+ | ₹201.64 | ₹20,164.00 |
| 500+ | ₹175.40 | ₹87,700.00 |
| 1,000+ | ₹170.20 | ₹1,70,200.00 |
1 × ₹294.01
₹294.01
excl. GST
₹346.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX1615EUK+T
₹294.01 for 1 + GST
Specifications
- Output Voltage
- 3.3V;5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Output Current
- 30mA
- Operating Voltage
- 28V
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The MAX1615/MAX1616 low-quiescent-current linear regulators are designed primarily for high input voltage applications. The MAX1615 supplies a preselected 3.3V or 5.0V output for loads up to 30mA. The MAX1616 provides an adjustable voltage from 1.24V to 28V. The maximum output current is a function of the package’s maximum power dissipation for a given temperature. A 5μA load is required to maintain output regulation.
Applications
- CMOS/RTC Backup Power
- Microcontroller Power
- Notebook Computers
- Smart-Battery Packs
- PDAs and Handy-Terminals
- Battery-Powered Systems
Key features
- The MAX1615/MAX1616 are micropower, SOT23-5 linear regulators that supply always-on, keep-alive power to CMOS RAM and microcontrollers (μCs) in systems with high-voltage batteries.
- Key features include wide input voltage range, low dropout voltage, and low quiescent supply current.
- Despite a miserly 8μA (max) no-load supply current, the MAX1615/MAX1616 have excellent line-transient response and AC power-supply rejection ratio.
- They provide a clean, fixed 5V or 3.3V output (MAX1615) or an adjustable 1.24V to 28V output (MAX1616), even when subjected to fast supply-voltage changes that occur during the switchover from battery to AC adapter input power.
- The space-saving SOT23-5 package has excellent thermal characteristics and tolerates up to 571mW of power dissipation.
- Fault protection is provided by internal foldback current limiting and thermal-shutdown circuitry.
- The MAX1615/MAX1616 are now available in lead-free packages.
- 4V to 28V Input Range
- 8μA (max) Quiescent Supply Current
- <1μA Shutdown Supply Current
- 3.3V or 5V, Pin-Selectable Output (MAX1615) Adjustable 1.24V to 28V Output (MAX1616)
- 30mA Output Current
- ±2% Initial Output Accuracy
- Thermal-Overload Protection
- 5-Pin SOT23 Package
- Low Cost
