MAXIM

MAX1978ETM+T

TQFN-48-EP(7x7) Power Management - Specialized RoHS

TQFN-48-EP(7x7)ROHS3 CompliantActive

Integrated Temperature Controllers for Peltier Modules

Manufacturer: MAXIM
Manufacturer part #: MAX1978ETM+T
Store part #: C962091
Package / case: TQFN-48-EP(7x7)
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,320 in stock

#C962091

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹1,905.97	₹1,905.97
10+	₹1,732.07	₹17,320.70
30+	₹1,545.21	₹46,356.30
100+	₹1,419.92	₹1,41,992.00

Quantity (min 1)

1 × ₹1,905.97

₹1,905.97

excl. GST

₹2,249.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

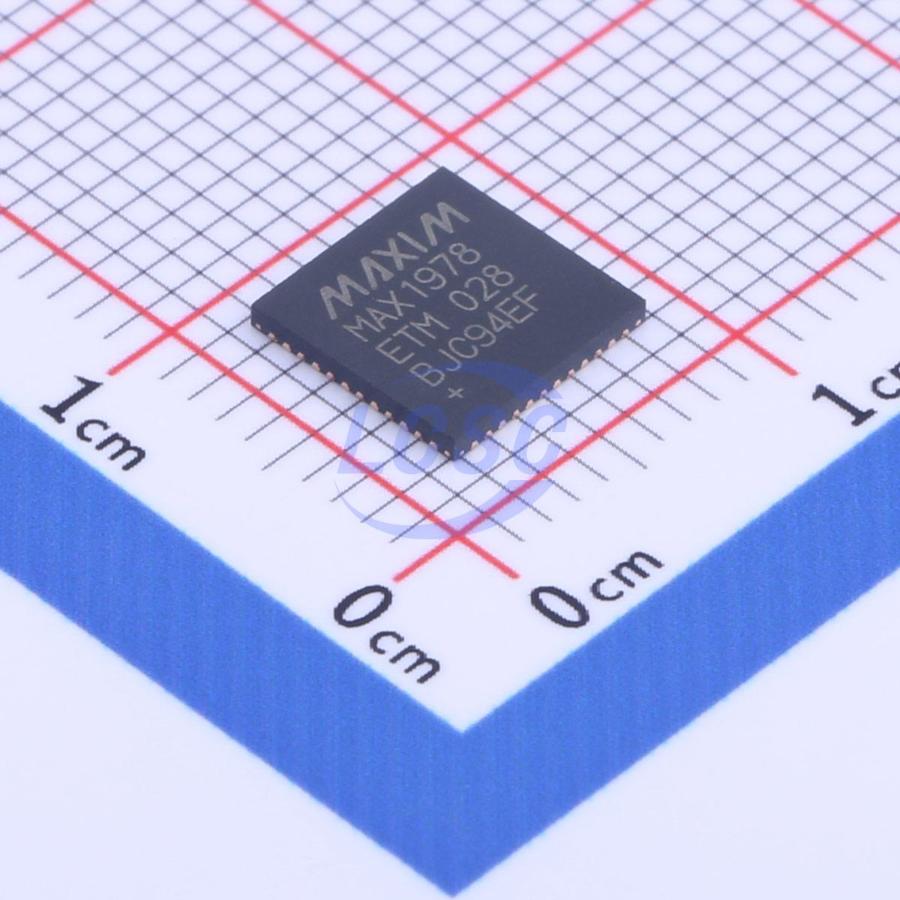

MAX1978ETM+T

₹1,905.97 for 1 + GST

Specifications

Features: Adjustable current limiting;Overcurrent Protection
Operating Temperature: -40℃~+85℃
Voltage - Supply: 3V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.376 g

Overview

Applications

Fiber Optic Laser Modules
WDM, DWDM Laser-Diode Temperature Control
Fiber Optic Network Equipment
EDFA Optical Amplifiers
Telecom Fiber Interfaces
ATE

Key features

The MAX1978/MAX1979 are the smallest, safest, most accurate complete single-chip temperature controllers for Peltier thermoelectric cooler (TEC) modules.
On-chip power FETs and thermal control-loop circuitry minimize external components while maintaining high efficiency.
Selectable 500kHz/1MHz switching frequency and a unique ripple-cancellation scheme optimize component size and efficiency while reducing noise.
Switching speeds of internal MOSFETs are optimized to reduce noise and EMI.
An ultralow-drift chopper amplifier maintains ±0.001°C temperature stability.
Output current, rather than voltage, is directly controlled to eliminate current surges.
Individual heating and cooling current and voltage limits provide the highest level of TEC protection.
The MAX1978 operates from a single supply and provides bipolar ±3A output by biasing the TEC between the outputs of two synchronous buck regulators.
True bipolar operation controls temperature without “dead zones” or other nonlinearities at low load currents.
The control system does not hunt when the set point is very close to the natural operating point, where only a small amount of heating or cooling is needed.
An analog control signal precisely sets the TEC current.
The MAX1979 provides unipolar output up to 6A.
A chopper-stabilized instrumentation amplifier and a highprecision integrator amplifier are supplied to create a proportional-integral (PI) or proportional-integral-derivative (PID) controller.
The instrumentation amplifier can interface to an external NTC or PTC thermistor, thermocouple, or semiconductor temperature sensor.
Analog outputs are provided to monitor TEC temperature and current.
In addition, separate overtemperature and undertemperature outputs indicate when the TEC temperature is out of range.
An on-chip voltage reference provides bias for a thermistor bridge.
The MAX1978/MAX1979 are available in a low-profile 48-lead thin QFN-EP package and is specified over the -40°C to +85°C temperature range.
The thermally enhanced QFN-EP package with exposed metal pad minimizes operating junction temperature.
An evaluation kit is available to speed designs.
Smallest, Safest, Most Accurate Complete Single-Chip Controller
On-Chip Power MOSFETS—No External FETs
Circuit Footprint <0.93in²
Circuit Height <3mm
Temperature Stability to 0.001°C
Integrated Precision Integrator and Chopper Stabilized Op Amps
Accurate, Independent Heating and Cooling Current Limits
Eliminates Surges By Directly Controlling TEC Current
Adjustable Differential TEC Voltage Limit
Low-Ripple and Low-Noise Design
TEC Current Monitor
Temperature Monitor
Over- and Undertemperature Alarm
Bipolar ±3A Output Current (MAX1978)
Unipolar ±6A Output Current (MAX1979)

Alternatives

Similar parts — check the datasheet before substituting.
