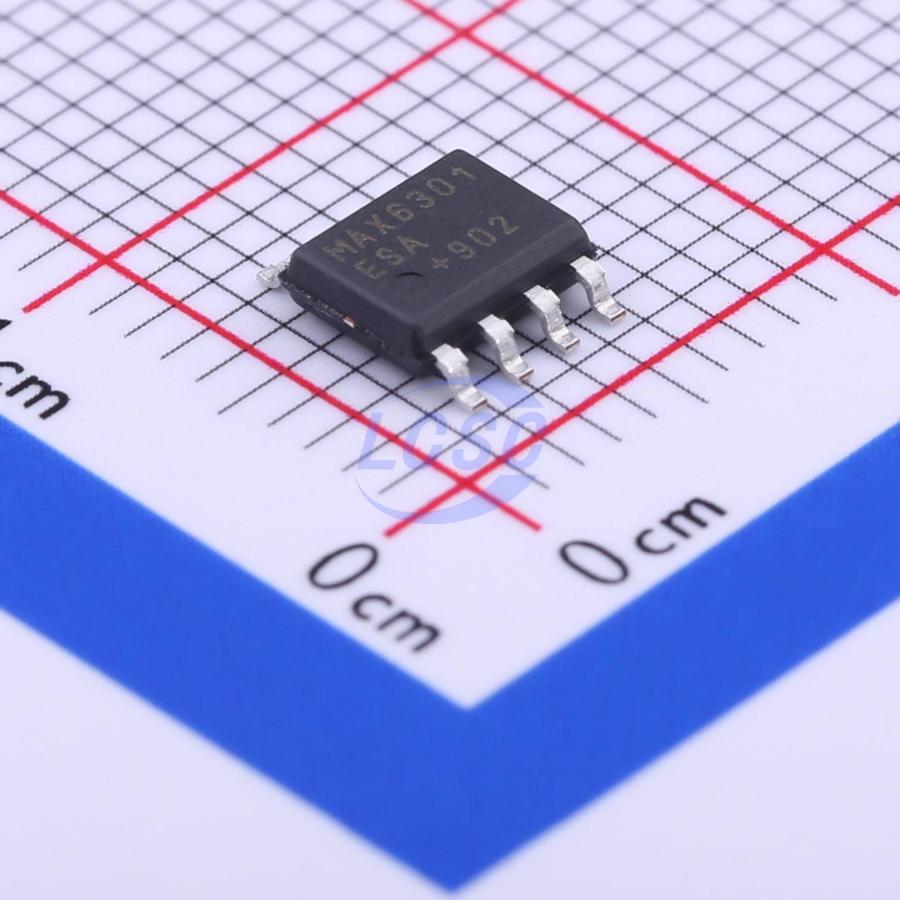

MAX6301ESA+T
4ms Active Low 1V~5.5V 1 SO-8 Supervisors RoHS
Low-Power μP Supervisory Circuits with Adjustable Reset/Watchdog
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX6301ESA+T
- Store part #
- C140727
- Package / case
- SO-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,896 in stock
#C140727
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹241.92 | ₹241.92 |
| 10+ | ₹204.35 | ₹2,043.50 |
| 30+ | ₹180.68 | ₹5,420.40 |
| 100+ | ₹156.65 | ₹15,665.00 |
| 500+ | ₹145.80 | ₹72,900.00 |
| 1,000+ | ₹140.93 | ₹1,40,930.00 |
1 × ₹241.92
₹241.92
excl. GST
₹285.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX6301ESA+T
₹241.92 for 1 + GST
Specifications
- Reset Timeout
- 4ms
- output type
- Open-drain
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 7uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
The MAX6301–MAX6304 low-power microprocessor (µP) supervisory circuits provide maximum adjustability for reset and watchdog functions. The reset threshold can be adjusted to any voltage above 1.22V, using external resistors. In addition, the reset and watchdog timeout periods are adjustable using external capacitors. A watchdog select pin extends the watchdog timeout period to 500×. The reset function features immunity to power-supply transients.
Applications
- Medical Equipment
- Embedded Controllers
- Intelligent Instruments
- Critical µP Monitoring
- Portable Equipment
- Set-Top Boxes
- Battery-Powered Computers
- Computers/Controllers
Key features
- Adjustable Reset Threshold
- Adjustable Reset Timeout
- Adjustable Watchdog Timeout
- 500x Watchdog Timeout Multiplier
- 4µ Supply Current
- RESET or RESET Output Options
- Push-Pull or Open-Drain Output Options
- Guaranteed RESET Asserted At or Above Vcc = 1V (MAX6301/MAX6303)
- Power-Supply Transient Immunity
- Watchdog Function can be Disabled
- PDIP/SO/µMAX Packages Available
